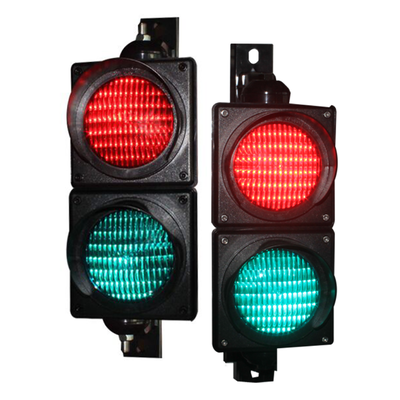

JUTAI JD112HF-C 100mm Red and Green LED Traffic Light with IP65 Protection for Parking Barrier Gates
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | JD112HF-C |
| Document | JUTAI_JD112HF-C_Product_Man...EN.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Carton |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Housing Material | UV-Stabilized Polycarbonate | Operating Temperature | -40°C To +60°C |
|---|---|---|---|
| LED Technology | High Flux LED | IP Level | IP65 |
| Signal Diameter | 100mm / 4 Inch | Input Voltage | 12-24V DC / 110-220V AC |
| Signal Colors | Red And Green | Red Luminance | >100 Cd |
| Green Luminance | >100 Cd | Power Consumption | <5W Per Module |
| Power Factor | >0.9 | Response Time | Under 75 Ms |
| Highlight | 100mm LED Traffic Light,IP65 Traffic Signal Light,Red and Green Traffic Indicator |
||
Product Description
IP65 100mm Red Green LED Traffic Light for Parking Barrier Gate Vehicle Entrance Exit Traffic Control
Product Overview
JUTAI JD112HF-C is a 100mm red and green LED traffic indicator designed for parking barrier gates, vehicle entrances, access control lanes and traffic warning applications. It combines high-brightness LED signal modules with a UV-stabilized polycarbonate housing and IP65 protection for reliable outdoor operation.
Key Features
- 100mm Red + Green LED Signal Modules
- High Luminance: more than 100 cd for both red and green modules
- IP65 Protection: suitable for outdoor parking and gate applications
- Wide Power Options: 12-24V DC or 110-220V AC
- Fast Switching: turn-on and turn-off response under 75 ms
- UV-Stabilized PC Housing: designed to withstand outdoor sunlight exposure
- Anti-Sun Phantom Design: optical structure helps reduce false visual appearance caused by strong sunlight
- Low Power Consumption: less than 5W per signal module
- High Power Factor: greater than 0.9
- 5-Year Warranty
- CE Compliant
- Simple R / G / COM Wiring: convenient integration with compatible barrier and gate controllers
- Easy Retrofit Installation: designed for installation into existing traffic signal enclosures
The manual specifically identifies the JD112HF-C connection as Red / Green / COM, and provides connection examples for both 110-240V and 12-24V barrier control systems.
Typical Applications
- Parking barrier gate entrances and exits
- Parking lot vehicle guidance
- Access control lanes
- Residential and commercial gate entrances
- Vehicle traffic warning systems
- Barrier controller signal indication
A project example in the manual shows the JD112HF-C installed beside a parking barrier gate for vehicle entrance indication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JD112HF-C |
| Signal Colors | Red / Green |
| Signal Diameter | 100mm / 4 inch |
| Module Shape | Round |
| LED Quantity | 1 LED module per color |
| Red Luminance | >100 cd |
| Green Luminance | >100 cd |
| Red Dominant Wavelength | 625 nm |
| Green Dominant Wavelength | 502 nm |
| Power Supply | 12-24V DC / 110-220V AC |
| Power Consumption | <5W per module |
| Power Factor | >0.9 |
| Operating Temperature | -40°C to +60°C |
| Insulation Resistance | ≥2MΩ |
| Total Harmonic Distortion | <20% |
| Protection Rating | IP65 |
| Housing Material | UV-Stabilized Polycarbonate |
| Lens Type | Tinted Cobweb Lens |
| Wiring | Red / Green / COM |
| Warranty | 5 Years |
| Certification | CE |
Key Benefits
Reduce Overall Operating & Maintenance Costs
- Energy saving: 90% reduction in power consumption compared to incandescent lights
Reliability & Traffic Safety
- Improved visibility over the life of the product
- Reduces emergency lamp outs
- Design minimizes sun phantom effects
Easy Installation
- Can be easily installed into existing signal enclosures
Experience the benefits of our high-quality Warning Signal Vehicle LED Traffic Light from Shenzhen Jutai Comm Co., Ltd.
Additional Technical Specifications
| Parameter | Specification |
|---|---|
| Shape | 100mm (4") |
| LED | High brightness LEDs with integrated optics |
| Moisture and dust-tight seal | IP65 |
| Total Harmonic Distortion | <20% |
| Operating Temperature Range (optional) | -20°C to 60°C |
| Angle | Avg.≥30° Down≥30° |
| Operating voltage range | 85~265VAC |
| Insulation resistance | ≥2M |
| Life | 100,000H |
| Housing material | PC |
Product Details
Connection Details
Size Specifications
| Color | Size (mm) | Model Number | Profile | Voltage (VAC) | LEDs | Typical Wattage at 25°C | Luminance (cd/m²) | Typical Dominant Wavelength (nm) |
|---|---|---|---|---|---|---|---|---|
| Red | 100 | JD100R-1 | Round | 85~265VAC | 45S | <5 | >1000 | 625 |
| Green | 100 | JD100G-1 | 85~265VAC | <5.5 | >1000 | 500 |
