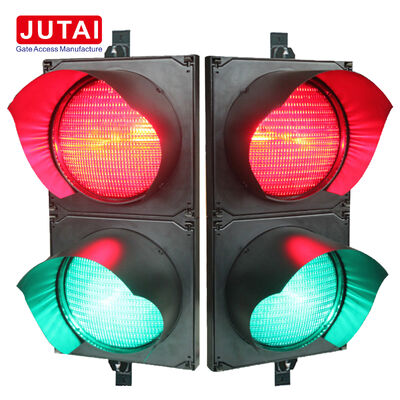

JUTAI JD112HF-C 100mm Red and Green LED Traffic Signal Light with IP65 Protection for Parking Barrier Gates and Vehicle Access Control
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | JD112HF-C |
| Document | JUTAI_JD112HF-C_Product_Man...EN.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Carton |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Housing Material | UV-Stabilized Polycarbonate | Operating Temperature | -40°C To +60°C |
|---|---|---|---|
| IP Level | IP65 | Signal Diameter | 100mm / 4 Inch |
| Input Voltage | 12-24V DC / 110-220V AC | LED Technology | High Flux LED |
| Red Luminance | >100 Cd | Green Luminance | >100 Cd |
| Power Consumption | <5W Per Module | Power Factor | >0.9 |
| Response Time | Under 75 Ms | LED Quantity | 1 LED Module Per Color |
| Highlight | 100mm LED Traffic Signal Light,IP65 Traffic Indicator,Red and Green Parking Barrier Gate Light |
||
Product Description
JUTAI 100mm Red Green LED Indicator Light for Parking Barrier Gate Traffic Management
JUTAI JD112HF-C is a 100mm red and green LED traffic indicator designed for parking barrier gates, vehicle entrances, access control lanes and traffic warning applications. It combines high-brightness LED signal modules with a UV-stabilized polycarbonate housing and IP65 protection for reliable outdoor operation.
Key Features
- 100mm Red + Green LED Signal Modules
- High Luminance: more than 100 cd for both red and green modules
- IP65 Protection: suitable for outdoor parking and gate applications
- Wide Power Options: 12-24V DC or 110-220V AC
- Fast Switching: turn-on and turn-off response under 75 ms
- UV-Stabilized PC Housing: designed to withstand outdoor sunlight exposure
- Anti-Sun Phantom Design: optical structure helps reduce false visual appearance caused by strong sunlight
- Low Power Consumption: less than 5W per signal module
- High Power Factor: greater than 0.9
- 5-Year Warranty
- CE Compliant
- Simple R / G / COM Wiring: convenient integration with compatible barrier and gate controllers
- Easy Retrofit Installation: designed for installation into existing traffic signal enclosures
Typical Applications
- Parking barrier gate entrances and exits
- Parking lot vehicle guidance
- Access control lanes
- Residential and commercial gate entrances
- Vehicle traffic warning systems
- Barrier controller signal indication
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JD112HF-C |
| Signal Colors | Red / Green |
| Signal Diameter | 100mm / 4 inch |
| Module Shape | Round |
| LED Quantity | 1 LED module per color |
| Red Luminance | >100 cd |
| Green Luminance | >100 cd |
| Red Dominant Wavelength | 625 nm |
| Green Dominant Wavelength | 502 nm |
| Power Supply | 12-24V DC / 110-220V AC |
| Power Consumption | <5W per module |
| Power Factor | >0.9 |
| Operating Temperature | -40°C to +60°C |
| Insulation Resistance | ≥2MΩ |
| Total Harmonic Distortion | <20% |
| Protection Rating | IP65 |
| Housing Material | UV-Stabilized Polycarbonate |
| Lens Type | Tinted Cobweb Lens |
| Wiring | Red / Green / COM |
| Warranty | 5 Years |
| Certification | CE |
Key Benefits
Reduce Overall Operating & Maintenance Costs
Energy saving: 90% reduction in power consumption compared to incandescent lights
Reliability & Traffic Safety
Improved visibility over the life of the product, reduces emergency lamp outs, and design minimizes sun phantom effects
Easy Installation
Can be easily installed into existing signal enclosures
