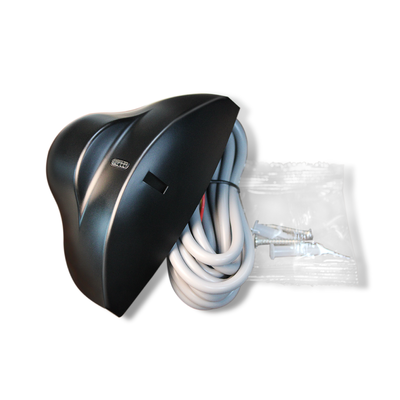

R24-D 24.125GHz Microwave Motion Sensor with Direction Detection and Adjustable Sensitivity for Automatic Glass Sliding Doors
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RD24-4 |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pcs per month |
Product Details
| Power Supply Voltage | 12-24VAC/DC±10% | Center Frequency | 24.125GHz |
|---|---|---|---|
| Min Detection Speed | 5cm/s | Temperature Range | -25℃~+80℃ |
| Maximum Installation Height | Below 5m | Detection Mode | One-Way Detection And Two-Way Detection, Pin Switch |
| Highlight | 24.125GHz Microwave Radar Automatic Door Motion Sensor,Direction Detection Microwave Motion Sensor,Adjustable Sensitivity Glass Door Radar Sensor |
||
Product Description
R24-D Automatic Door Activation Sensor with Direction Detection
Designed for glass sliding doors in supermarkets, hotels, and office entrances
R24-D 24GHz Automatic Glass Door Microwave Motion Sensor
The R24-D is a 24.125GHz microwave radar motion sensor designed for automatic glass sliding doors and commercial entrance door systems.
It is mainly used as an automatic door activation sensor. When a person approaches the entrance, the radar detects the movement and sends a relay signal to the automatic door controller to trigger door opening.
Unlike a basic indoor motion detector, the R24-D supports movement direction recognition. In directional detection mode, approaching movement can be detected while movement away from the sensor can be ignored, helping reduce unnecessary door opening. The sensor can also be configured for bidirectional detection when required.
Key Features
- 24.125GHz Microwave Radar Detection - Uses integrated MMIC planar antenna for stable motion detection and consistent sensitivity
- Direction Recognition - Determines whether a person is approaching or moving away from the door to prevent unnecessary activation
- Adjustable Detection Area - Customizable sensitivity, direction, antenna angle, and coverage area
- Up to 4.5m Installation Height - Suitable for most commercial automatic glass door applications
Typical Applications
- Automatic Glass Sliding Doors
- Shopping Mall Entrances
- Supermarkets
- Hotels
- Office Buildings
- Hospitals
- Commercial Buildings
- Automatic Entrance Doors
- Selected Industrial High-Speed Door Trigger Applications
Technical Specifications
| Main Application | Automatic Glass Sliding Door |
|---|---|
| Radar Frequency | 24.125GHz |
| Direction Detection | Approach / Away Recognition |
| Detection Mode | Unidirectional / Bidirectional |
| Maximum Mounting Height | Below 4.5m |
| Adjustable Detection | Sensitivity / Direction / Antenna Angle |
