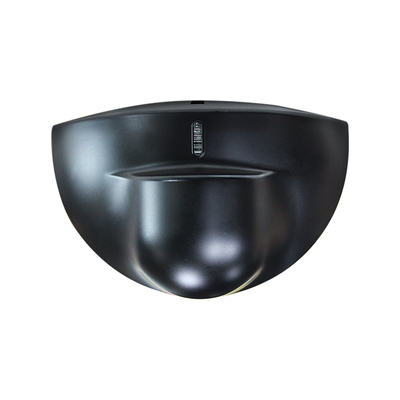

R24-D 24.125GHz Microwave Motion Sensor for Automatic Glass Sliding Doors with Direction Detection and Adjustable Sensitivity
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RD24-4 |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pcs per month |
Product Details
| Power Supply Voltage | 12-24VAC/DC±10% | Temperature Range | -25℃~+80℃ |
|---|---|---|---|
| Center Frequency | 24.125GHz | Min Detection Speed | 5cm/s |
| Maximum Installation Height | Below 5m | Detection Mode | One-Way Detection And Two-Way Detection, Pin Switch |
| Highlight | 24.125GHz Microwave Radar Motion Sensor,Direction Detection Motion Sensor,Adjustable Sensitivity Glass Door Sensor |
||
Product Description
Microwave Motion Detector for Automatic Glass Sliding Door with Unidirectional Bidirectional Detection and Adjustable Sensing Area
R24-D 24GHz Automatic Glass Door Microwave Motion Sensor
The R24-D is a 24.125GHz microwave radar motion sensor designed for automatic glass sliding doors and commercial entrance door systems. It is mainly used as an automatic door activation sensor. When a person approaches the entrance, the radar detects the movement and sends a relay signal to the automatic door controller to trigger door opening.
Unlike a basic indoor motion detector, the R24-D supports movement direction recognition. In directional detection mode, approaching movement can be detected while movement away from the sensor can be ignored, helping reduce unnecessary door opening. The sensor can also be configured for bidirectional detection when required.
Key Features
24.125GHz Microwave Radar Detection
The sensor uses 24.125GHz microwave radar technology with an integrated MMIC planar antenna for stable motion detection and consistent sensitivity.
Direction Recognition
The radar can determine whether a person or moving object is:
- Approaching the door
- Moving away from the door
This function is particularly useful for automatic sliding doors because it helps prevent unnecessary activation from people moving away from the entrance.
Adjustable Detection Area
The sensor allows adjustment of:
- Detection sensitivity
- Detection direction
- Antenna angle
- Detection distance and coverage area
The antenna can be adjusted vertically and horizontally to suit different entrance layouts.
Up to 4.5m Installation Height
The sensor supports installation heights below 4.5 meters, making it suitable for most commercial automatic glass door and entrance applications.
Typical Applications
Suitable for:
- Automatic Glass Sliding Doors
- Shopping Mall Entrances
- Supermarkets
- Hotels
- Office Buildings
- Hospitals
- Commercial Buildings
- Automatic Entrance Doors
- Selected Industrial High-Speed Door Trigger Applications
Technical Specifications
| Main Application | Automatic Glass Sliding Door |
|---|---|
| Radar Frequency | 24.125GHz |
| Direction Detection | Approach / Away Recognition |
| Detection Mode | Unidirectional / Bidirectional |
| Maximum Mounting Height | Below 4.5m |
| Adjustable Detection | Sensitivity / Direction / Antenna Angle |
