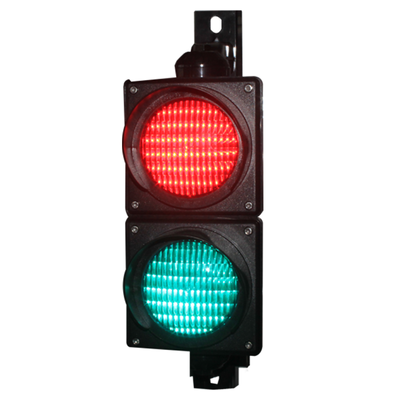

JD112HF-C 100mm Red Green LED Traffic Signal Light with OSRAM High Power LED, Fresnel Lens and IP65 for Parking Barrier Gate and Vehicle Access Control
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | JD112HF-C |
| Document | JUTAI_JD112HF-C_Product_Man...EN.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Carton |
| Delivery Time | 5 - 8 working days |
| Payment Terms | D/P,D/A,L/C,T/T |
| Supply Ability | 1000 pieces per month |
Product Details
| Lens Diameter | 100mm / 4 Inch | LED Type | OSRAM High Power LED |
|---|---|---|---|
| Luminous Intensity | >100cd (Red & Green) | Red Wavelength | ~625nm |
| Green Wavelength | ~502nm | Response Time | <75ms |
| Power Consumption | <5W Per Module | Power Factor | >0.9 |
| Voltage Option | 12–24VDC / 110–220VAC | Protection Rating | IP65 |
| Operating Temperature | -40°C To +60°C | Housing Material | UV-Stabilized Polycarbonate |
| Highlight | OSRAM High Power LED Traffic Signal Light,Fresnel Lens LED Traffic Light,IP65 Parking Signal Light |
||
Product Description
Product Overview
The JUTAI JD112HF-C is a premium 100mm / 4-inch red and green LED traffic signal light designed for parking barrier gates, vehicle entrances and exits, parking garages, access control systems, and other traffic management applications.
Unlike conventional signal lights that use standard low-power LED arrays, the JD112HF-C combines OSRAM high-power LEDs with a Fresnel optical lens, delivering high luminous intensity and concentrated light distribution for clear red and green signal indication.
The product is available in 12–24VDC and 110–220VAC versions, allowing integration with different parking barrier controllers, gate systems, and access-control installations.
With IP65 protection, UV-stabilized polycarbonate housing, fast response, and low power consumption, the JD112HF-C is engineered for reliable long-term use in indoor and outdoor vehicle access environments.
Key Features
OSRAM High-Power LED Technology
OSRAM high-power LEDs deliver stronger concentrated light output than conventional low-power designs, ensuring clear visibility for approaching drivers at vehicle entrances, parking lanes, and barrier gates.
Fresnel Optical Lens
The Fresnel lens controls and concentrates light emitted by the high-power LEDs, improving signal visibility from the driver's viewing direction and enabling long-distance recognition.
Fast Response
Response time is less than 75ms, allowing rapid switching between red and green indications — ideal for automated vehicle entrances responding to barrier position or access authorization.
Low Power Consumption
Power consumption is less than 5W per module with a power factor greater than 0.9, supporting efficient long-term operation in parking and traffic applications.
IP65 Outdoor Protection
IP65-rated protection guards internal components against dust and water ingress. The UV-stabilized polycarbonate housing suits exposed parking entrances and gate lanes.
Wide Operating Temperature
Operates reliably from −40°C to +60°C, suitable for a wide variety of parking and access-control environments.
Red and Green Dual Signal Indication
The signal combines red and green indications in a compact 100mm format. Typical operating logic includes:
- Red Light — Stop / Barrier Closed / Access Restricted
- Green Light — Go / Barrier Open / Access Permitted
The exact switching logic can be controlled by the connected barrier gate controller, relay output, or external access-control system.
Technical Specifications
| Signal Size | 100mm / 4 inch diameter |
|---|---|
| LED Type | OSRAM high-power LED |
| Optical System | Fresnel lens |
| Red Wavelength | Approximately 625nm |
| Green Wavelength | Approximately 502nm |
| Luminous Intensity | More than 100cd (both red and green) |
| Voltage Options | DC Version: 12–24VDC AC Version: 110–220VAC |
| Response Time | Less than 75ms |
| Power Consumption | Less than 5W per module |
| Power Factor | Greater than 0.9 |
| Protection Rating | IP65 |
| Housing Material | UV-stabilized polycarbonate |
| Operating Temperature | −40°C to +60°C |
Applications
The JD112HF-C is particularly suitable for parking barrier gate applications, providing clear visual indication to drivers at:
- Parking entrances
- Parking exits
- Vehicle access lanes
- Residential community entrances
- Commercial parking facilities
- Underground parking garages
- Toll or controlled vehicle lanes
- Industrial vehicle entrances
When integrated with a barrier gate controller, the red and green lights can change automatically according to the barrier status or relay control logic.
Compact 100mm / 4 Inch Signal Size
The 100mm signal diameter provides a good balance between visibility and installation size. It is suitable for parking entrances and controlled vehicle lanes where a large 200mm or 300mm traffic signal would be unnecessary, while still providing clear visual indication for approaching drivers.
Multiple Voltage Options
The JD112HF-C is available in two voltage versions to accommodate different installation requirements:
| DC Version | 12–24VDC |
|---|---|
| AC Version | 110–220VAC |
This allows the same signal-light platform to be used with different barrier gate systems, parking controllers, and electrical installations. Low-voltage DC versions are suitable for integration with access-control and barrier controllers, while AC versions are convenient for projects using mains-powered traffic signal outputs.
