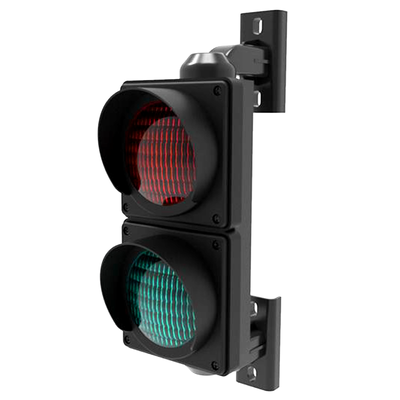

JD112HF-C 100mm Red Green LED Traffic Signal Light with OSRAM High Power LED, Fresnel Lens and IP65 for Parking Barrier Gate and Vehicle Entrance

The JUTAI JD112HF-C is a premium 100mm (4-inch) red and green LED traffic signal light engineered for parking barrier gates, vehicle entrances and exits, parking garages, access control systems, and other traffic management applications.

Unlike conventional signal lights that rely on standard low-power LED arrays, the JD112HF-C combines OSRAM high-power LEDs with a Fresnel optical lens, delivering high luminous intensity and concentrated light distribution for unmistakable red and green signal indication.

The product is available in 12–24VDC and 110–220VAC versions, allowing integration with a wide range of parking barrier controllers, gate systems, and access-control installations.

With IP65 protection, a UV-stabilized polycarbonate housing, fast response, and low power consumption, the JD112HF-C is built for reliable long-term use in indoor and outdoor vehicle access environments.

The JD112HF-C uses OSRAM high-power LED light sources for red and green indication. Compared with conventional low-power LED signal designs, high-power LED technology provides stronger, more concentrated light output — particularly suitable for vehicle entrances, parking lanes, and barrier gate applications where the signal must remain clearly visible to approaching drivers.

• Red signal wavelength: approximately 625nm
• Green signal wavelength: approximately 502nm
• Luminous intensity: more than 100cd for both red and green signals

A major feature of the JD112HF-C is its Fresnel lens optical system. The lens controls and concentrates the light emitted by the high-power LEDs, improving signal visibility from the driver's viewing direction.

This combination of OSRAM high-power LEDs and a Fresnel lens makes the product particularly suitable for professional parking and access-control projects where signal clarity and long-distance recognition are essential.

The signal combines red and green indications in a compact 100mm format. Typical operating logic includes:

The exact switching logic can be controlled by the connected barrier gate controller, relay output, or external access-control system.

The JD112HF-C is particularly suitable for parking barrier gate applications, providing a clear visual indication to drivers at:

• Parking entrances
• Parking exits
• Vehicle access lanes
• Residential community entrances
• Commercial parking facilities
• Underground parking garages
• Toll or controlled vehicle lanes
• Industrial vehicle entrances

When integrated with a barrier gate controller, the red and green lights can change automatically according to the barrier status or relay control logic.

The 100mm signal diameter provides a good balance between visibility and installation size. It is suitable for parking entrances and controlled vehicle lanes where a large 200mm or 300mm traffic signal would be unnecessary, while still providing clear visual indication for approaching drivers.

The JD112HF-C is available in two voltage versions, allowing the same signal-light platform to be used with different barrier gate systems, parking controllers, and electrical installations.

Low-voltage DC versions are suitable for integration with access-control and barrier controllers, while AC versions are convenient for projects using mains-powered traffic signal outputs.

The signal response time is less than 75ms, allowing rapid switching between red and green indications when controlled by the connected parking or access-control system. This is particularly useful in automated vehicle entrances where the signal should respond quickly to barrier position or access authorization.

Power consumption is less than 5W per module, helping reduce continuous operating energy consumption. The power factor is greater than 0.9, supporting efficient operation in long-term parking and traffic applications.

The JD112HF-C provides IP65 protection, helping protect internal components against dust and water ingress during normal outdoor use. The housing uses UV-stabilized polycarbonate, making it suitable for parking entrances, gate lanes, and other exposed installation environments.

The specified operating temperature range is −40°C to +60°C, allowing the signal light to be used in a wide variety of parking and access-control environments.

For integration guidance, wiring details, or project-specific configuration, please contact our technical team.
