Wireless Photoelectric Infrared Photocell Beam Sensors IR Gate Sensor OEM ODM
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | Photoelectric Infrared Photocell Beam Sensors,Wireless Photoelectric IR gate sensor,IR gate sensor OEM ODM |
||
Product Description

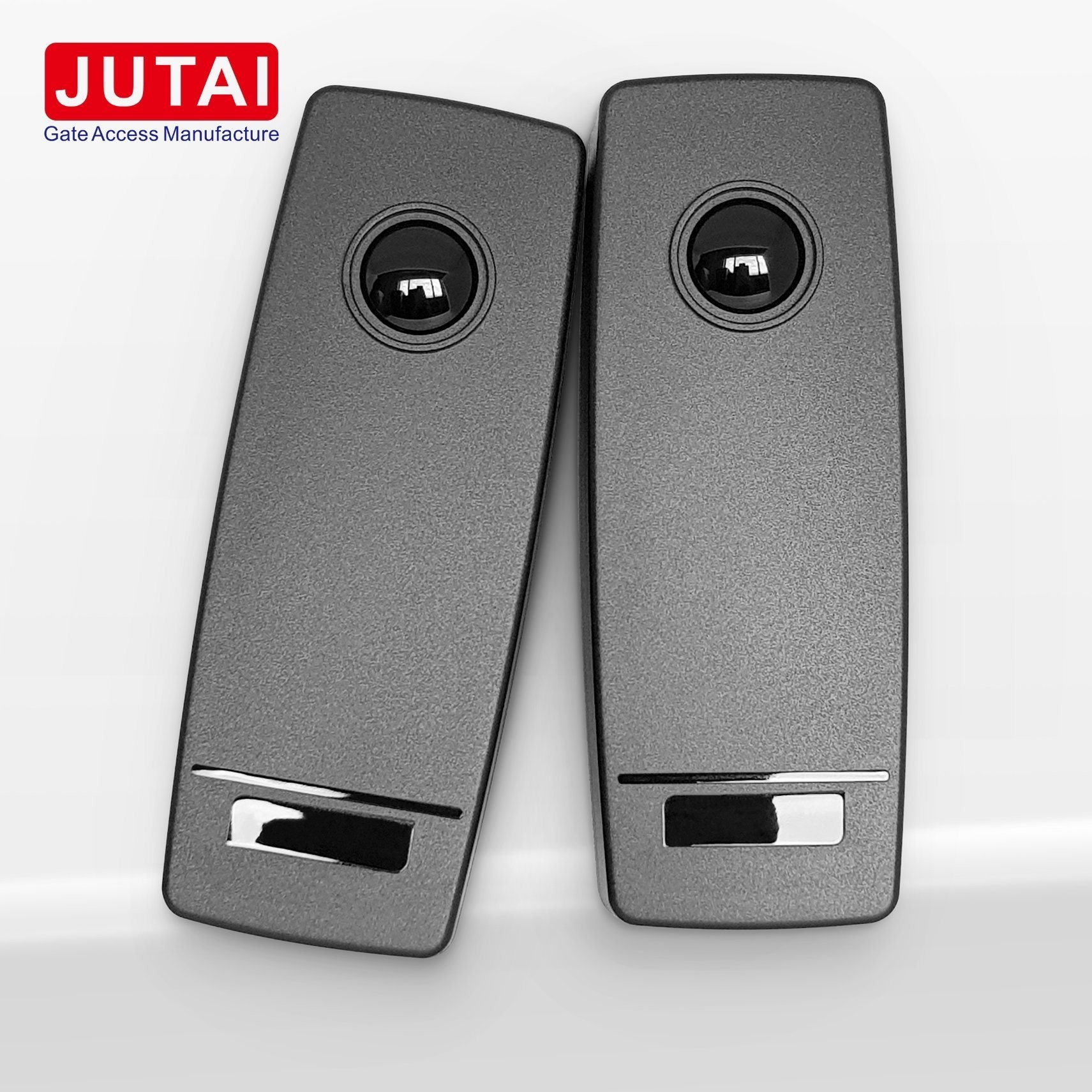

Wireless Photoelectric Infrared Photocell Beam Sensors IR Gate Sensor OEM ODM
Product Overview
Wireless Battery-Powered Gate Photoelectric Infrared Sensor with 30m range featuring ultra-low power consumption and reliable performance for gate automation and security applications.
Key Features
- Wireless transmitter powered by batteries with ultra-low power consumption and over two-year battery life
- 30-meter operating range suitable for entrance gates and outdoor use with IP65 waterproof rating
- Fully dust-resistant and weather-resistant enclosure for reliable performance in harsh conditions
- Audible feedback for easy setup and low battery level alerts
- Low power consumption for enhanced overall efficiency
- Compatible with intruder-detection alarms for perimeter security
- Quick and simple installation with built-in laser beam alignment system
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |
| Size | 51(L) * 135(W) * 32(H) mm |
Applications
Business Advantages
Flexible Business Model
We are dedicated to supporting our customers in developing their own brand and facilitating local marketing efforts. In addition to offering wireless photocell sensors, we are committed to expanding our product range to include high-quality solutions for gate automation systems and villa security. By assisting customers in promoting their brands locally, we aim to foster mutually beneficial partnerships and achieve shared success, fostering growth together.
