Wireless Rotating Infrared Gate Safety Beams 12-24V AC 12-30V DC
Product Details
| Receiver | 12 - 24V AC 12 - 30V DC | Rotation Angle | 180 Degree |
|---|---|---|---|
| Receiver Power Consumption | 30mA @ 12V DC | Transmitter Battery Life | Minimum 2 Years |
| Specified Operating Distance | 30m | Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact |
| Size | 113*46.79*47.72mm | Waterproof | IP66 |
| Highlight | wireless rotating infrared gate safety beams,infrared gate safety beams 12-24V AC,wireless rotating infrared gate beam |
||
Product Description

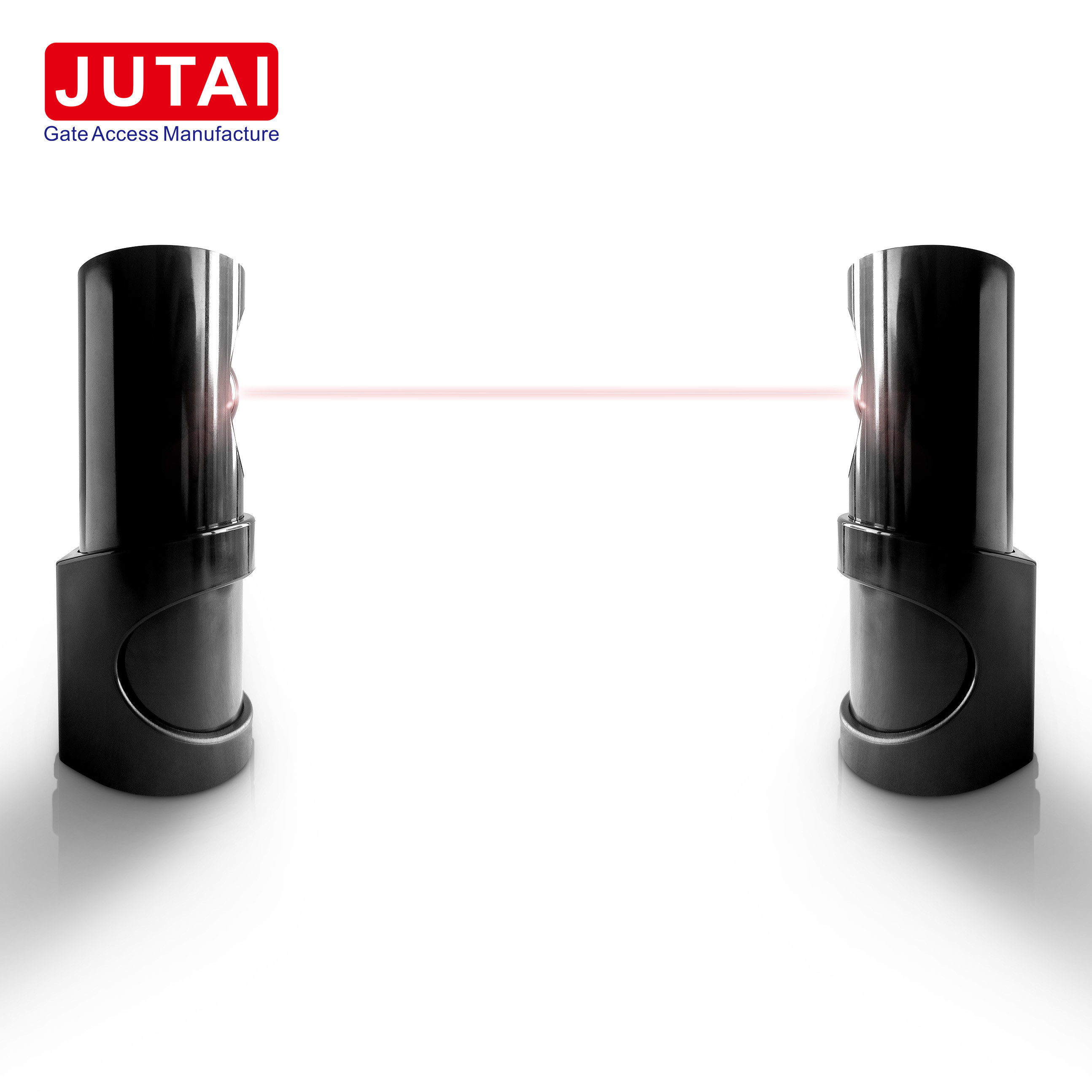

Wireless Rotating Infrared Gate Safety Beams 12-24V AC 12-30V DC
Wireless Rotating Infrared Photocell Sensor For Outdoor Use Resist Sunlight Interference
Product Overview
The Wireless Rotating Infrared Sensor is designed for easy installation with its external rotation feature, allowing for a full 180-degree rotation. Ideal for access control systems and entrance monitoring, this product operates wirelessly, eliminating the need for wiring and ensuring hassle-free setup. With its dustproof and waterproof housing, it guarantees reliable performance in various environments.
Key Features
- External rotation design for effortless 180-degree adjustment, simplifying installation
- Wireless operation eliminates the need for wiring, saving time and costs
- 30-meter operating range suitable for almost all entrance gates
- Dustproof and waterproof enclosure ensures high reliability
- Provides audible feedback for easy installation and battery low indication
- Low power consumption throughout the system for enhanced efficiency
- Compatible with intrusion detection alarm systems for enhanced perimeter security
- Built-in laser beam alignment system for quick and accurate installation
Product Parameters
| Feature | Specification |
|---|---|
| Power Supply | 12-24VAC, 12-30VDC |
| Transmitter | 2 x AAA alkaline batteries (Supplied) |
| Receiver | 12-24VAC, 12-30VDC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12VDC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic-im'@ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP66 |
| Housing Material | PC (UV) |
| Size | 113 x 46.79 x 47.72mm |
Functions
- External Rotation, 180 Degrees: Effortlessly adjust for optimal alignment, ensuring simple installation and reducing labor costs
- Wireless and Battery-Operated Transmitter: Save time and money with a transmitter that operates wirelessly and runs on batteries
- 30 Meters Operating Range: Perfect for a wide range of entrance gate applications, providing ample coverage
- Ant-Proof and Weather-Resistant Enclosure: Built to withstand environmental factors, ensuring reliable operation in various conditions
- Audible Feedback for Easy Setup: The transmitter offers audible feedback, simplifying setup procedures and providing battery-low indication
- Low Power Consumption: Enjoy enhanced efficiency with low power consumption across the entire system
- Compatibility with Intruder-Detection Alarms: Seamlessly integrate with intruder-detection alarms to bolster perimeter security measures
- Built-in Laser Beam Alignment System: Facilitates quick and easy installation with a built-in laser beam alignment system, ensuring precise positioning
Installation Instructions
Connection Diagram
