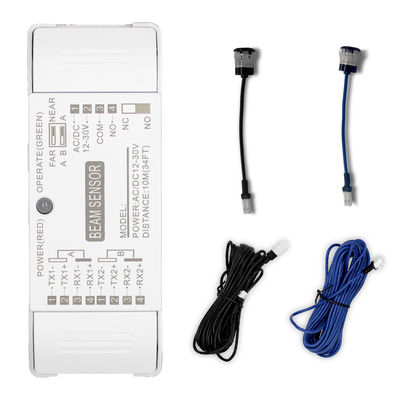

5.5m Rx Cable Length Infrared Beam Sensor with 58mA Operating Current and ABS Material for Automatic Door Safety
Product Details
| Working Voltage | AC/DC10-30VDC | Maximum Transceiver Distance | 13m |
|---|---|---|---|
| Rx Cable Length | 5.5m | Operating Temperature | -42~45 ℃ |
| Operating Humidity | 10~90%Rh | Material | ABS |
| Specification | 14*9*5.5 Cm | Output Type | Relay |
| Highlight | 5.5m rx cable length infrared beam security system,58ma infrared beam security system,58ma infrared beam sensor for home security |
||
Product Description
5.5m Rx Cable Length Infrared Beam Security System Operating Current 58mA
5.5m Rx Cable Length Infrared Beam Sensor for Safe Automatic Doors 30-Day Return Refunds
Product Name: Automatic Door Safety Beam
Manufacturer: Shenzhen Jutai Comm Co., Ltd.
Product Overview
The Automatic Door Safety Beam, developed by Shenzhen Jutai Comm Co., Ltd., is a vital safety feature for automatic doors. This innovative system, comprising infrared emitters and receivers, ensures immediate door halt upon obstruction detection, preventing accidents like pinching or crushing.
Key Advantages
- Immediate Obstruction Detection: Ensures immediate door halt upon obstruction detection
- Versatile Application: Ideal for busy environments like offices, retail stores, and hospitals
- Reliable Technology: Trusted safety technology from Shenzhen Jutai Comm Co., Ltd.
Product Features
- Safety Assurance: Safeguard automatic door operations with prompt obstruction detection and prevention of accidents
- Infrared Technology: Reliable infrared range and seamless integration with existing door systems for accurate detection
- Photoelectric Sensor: High-quality photoelectric sensor for precise movement detection and efficient automatic door control
- Reflective Beam Sensor: Advanced reflective beam sensor technology detects objects in its path for safe operation
- Waterproof Design: Built to withstand diverse weather conditions, enhancing durability for outdoor environments
- Easy Installation: User-friendly design simplifies installation and configuration
- Precision Installation: Optimize performance with 13mm diameter hole during electric eye installation
- Recommended Heights: Single beam at 60cm height; double beams at 30cm and 90cm for optimal performance
- Automatic Capture Range: Maintain consistent performance with proper transmitter and receiver alignment
- Interference Resistance: Withstands natural light interference (avoid direct frontal exposure to strong sunlight)
- Safety Standards: Position safety light at minimum 20cm height from the ground
Product Images
Technical Specifications
| Working Voltage | AC/DC 10-30V DC |
| Quiescent Current | 18mA (12V Electricity) |
| Operating Current | 58mA (12V Electricity) |
| Maximum Transceiver Distance | 10m |
| Output Contact | Normally Open And Closed (Jumper cap selection setting) |
| RX Cable Length | 5.5m |
| TX Cable Length | 5.5m |
| Number of Beams | Single- or dual-beam option |
| Operating Temperature | -42°C to +45°C |
| Operating Humidity | 10-90% RH |
| Material | ABS |
| Controller Dimension | 109.5(L) × 41.1(W) × 25.6(H) mm |
| Beam Dimension | 19(L) × 13(D) mm |
Additional Product Views
