LD-102 Single Channel Vehicle Loop Detector
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-100 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Delivery Time | 3-5 working days after receipt the payment |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supplu | 12-24VADC | Self-turning Range | 20-2000μH |
|---|---|---|---|
| Sensitivity | 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L | Frequency | Four Step Switch Selectable20-80KHz |
| Operation Tempts | -40℃ To +70℃ / (-111°F To +158°F) | Fault Output | Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS | Relay | Presence Relay / Fault Relay |
| Highlight | single channel vehicle loop detector,single channel induction loop detector,10-90ms vehicle loop detector |
||
Product Description

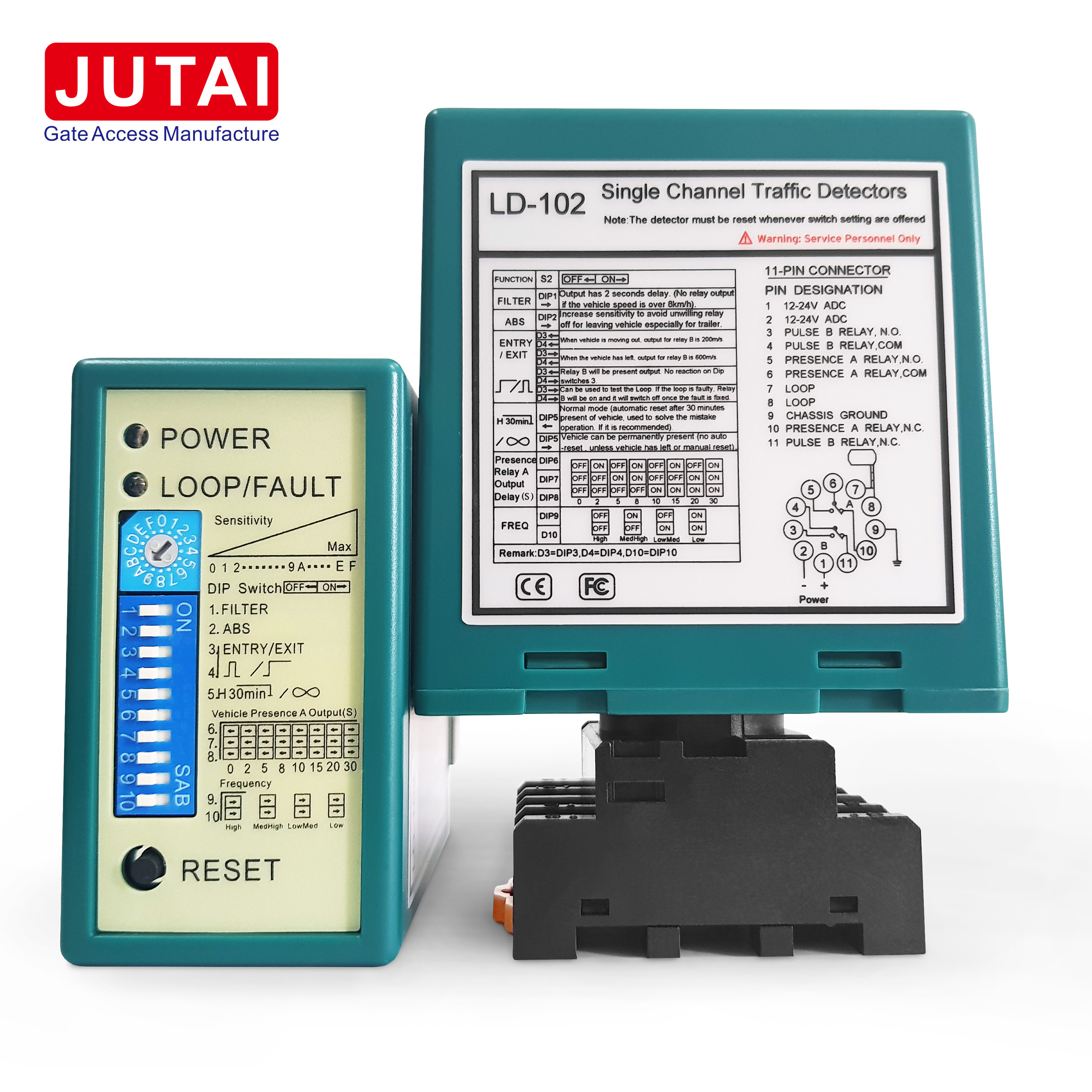

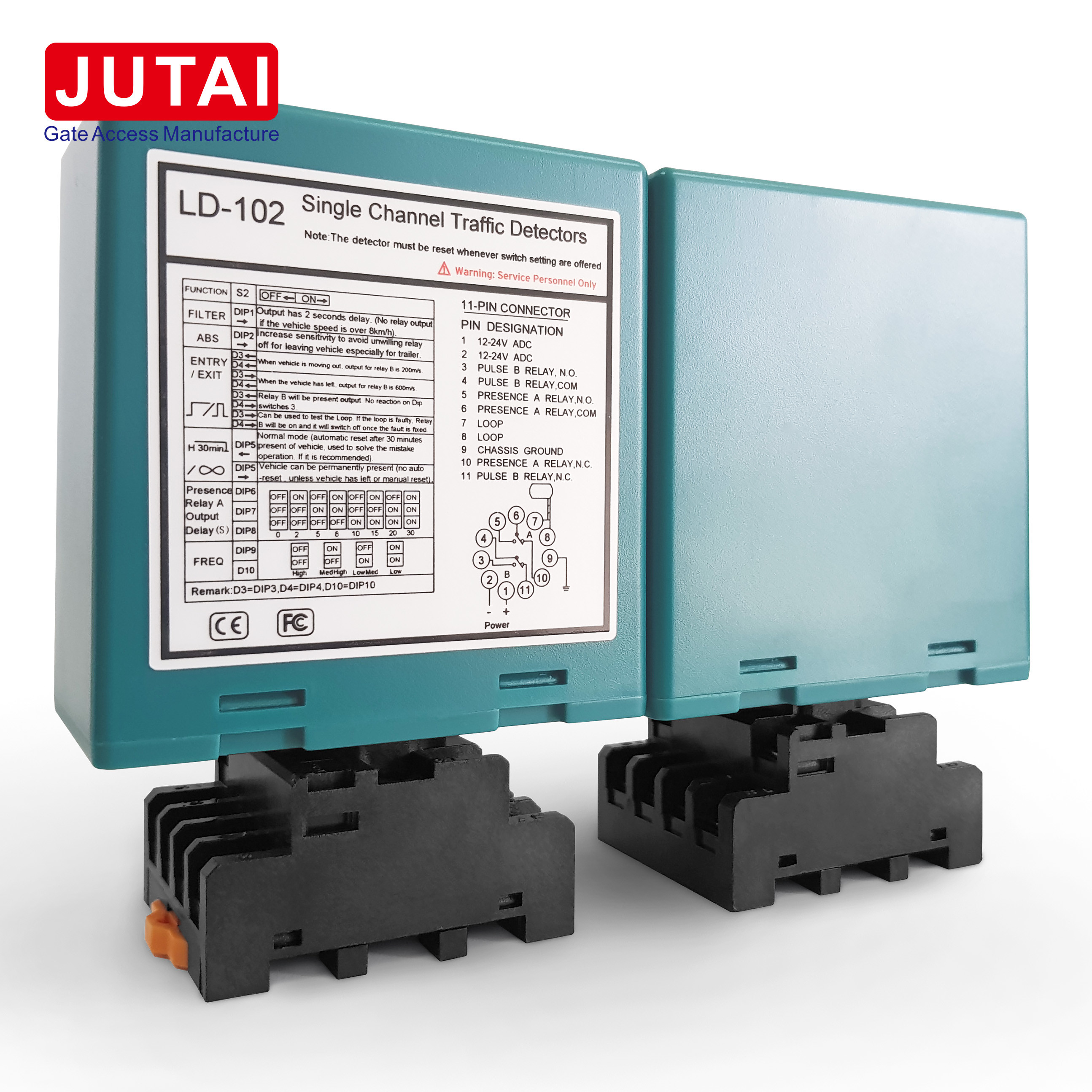

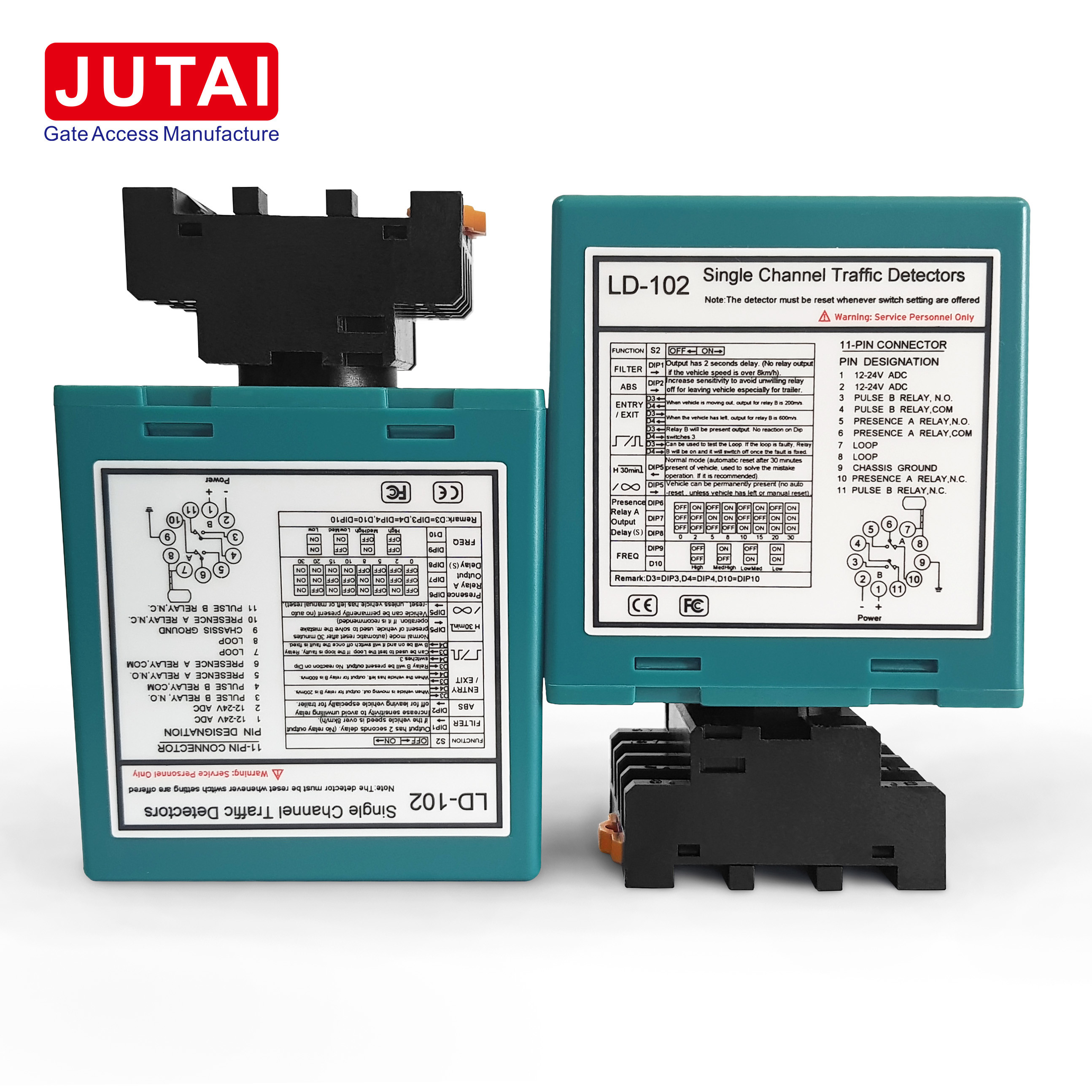

LD-102 single channel vehicle loop detector wide sensing range sensitive for Barrier Gate
Product Name: Parking Barrier Gate Loop Detector (Loop Sensor)
Description: JUTAI LD-102 is a specialized sensor designed for parking barrier gates, ensuring seamless automatic gate operation by efficiently identifying and detecting various vehicles, including oversized vehicles, trucks, and motorcycles.
Advantages:
1. Wide Sensing Range & Enhanced Sensitivity: Accurately detects diverse vehicles with a sensing range from 15 to 2000μH.
2. Automatic Reset Capability: Activates automatic reset in case of malfunction, enhancing system stability.
3. Flexible Detection Level Selection: Offers 16 selectable levels for tailored requirements.
4. Robust Lightning Protection: Withstands lightning strikes up to 40000V for sustained operation.
5. Broad Operating Environment Range: Operates from -40°C to +70°C for consistent performance in diverse weather conditions.
Experience reliable vehicle detection with JUTAI LD-102 Loop Detector for Parking Barrier Gates.
Product parameters:
| Specification | Value |
| Self-turning Range | 20-2000μH |
| Sensitivity | 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Frequency | Four-step switch selectable 20-80KHz |
| Power Requirements | 110-240VAC (48 to 62Hz) / 12-24VADC |
| Operation Temp | -40℃ to +70℃ / (-111°F to +158°F) |
| Fault Output | Blinks slowly: may indicate a short circuit or insufficient number of turns <br> Blinks faster: may indicate an open loop or excessive number of turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS |
| Visual Indications | Power LED - Red <br> Channel LED - Green |
| Reset | Reset by push button on the front of the enclosure |
| Relay Output | Presence relay / Fault relay |
| Humidity | Up to 95% relative humidity without condensation |
Connection Details

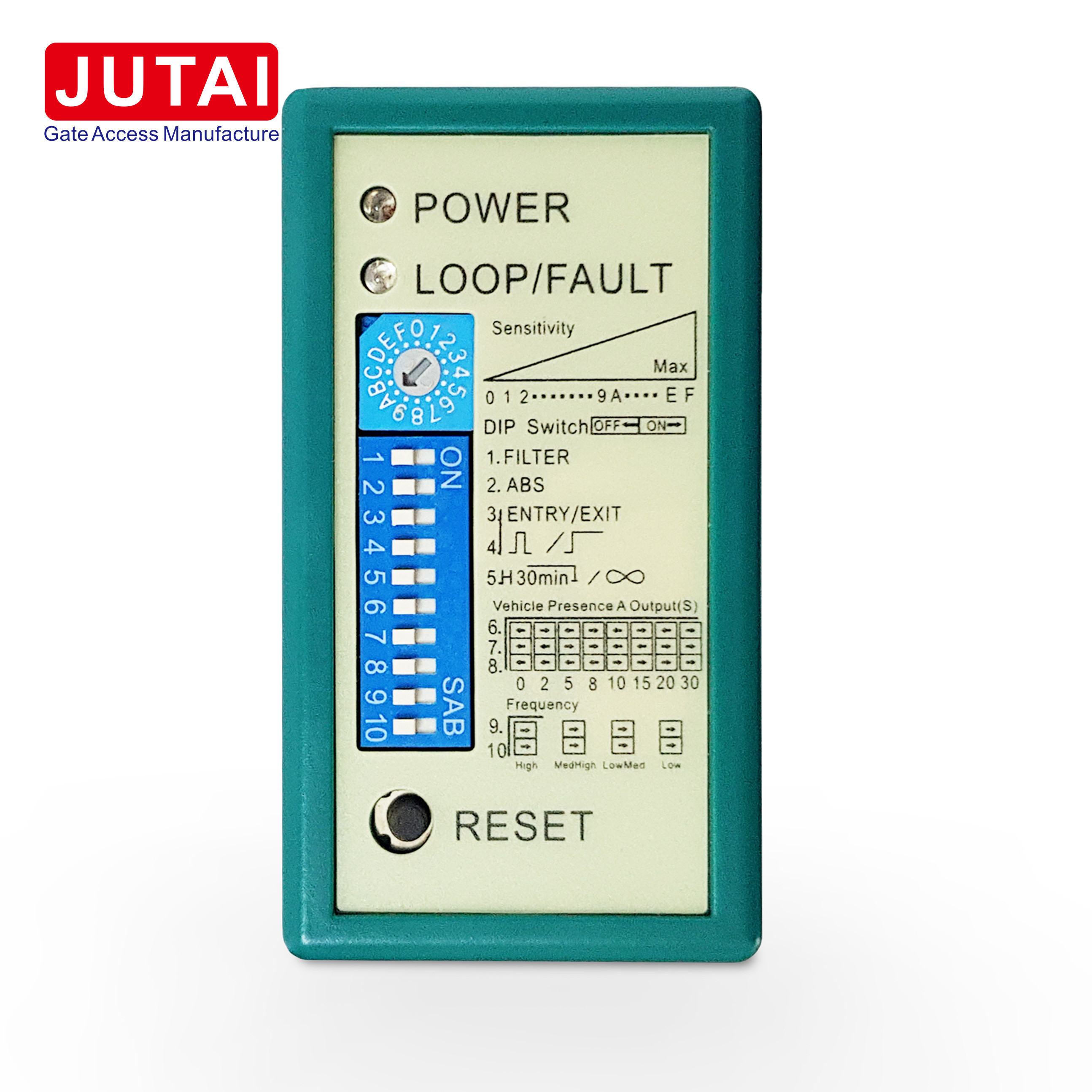

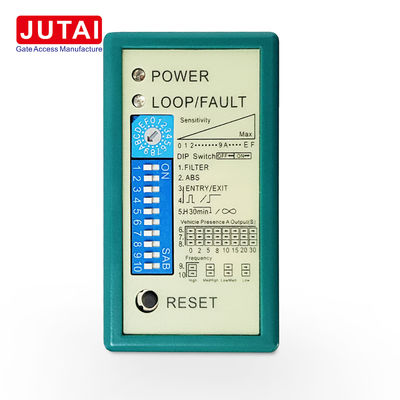

Switch 2 (Dipswitch Settings)
1.DIP 1 & DIP 2 Setting Special Functions
2.DIP 3 & DIP 4 Setting Relay B Output
3. DIP 5 Setting Automatic Reset
4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

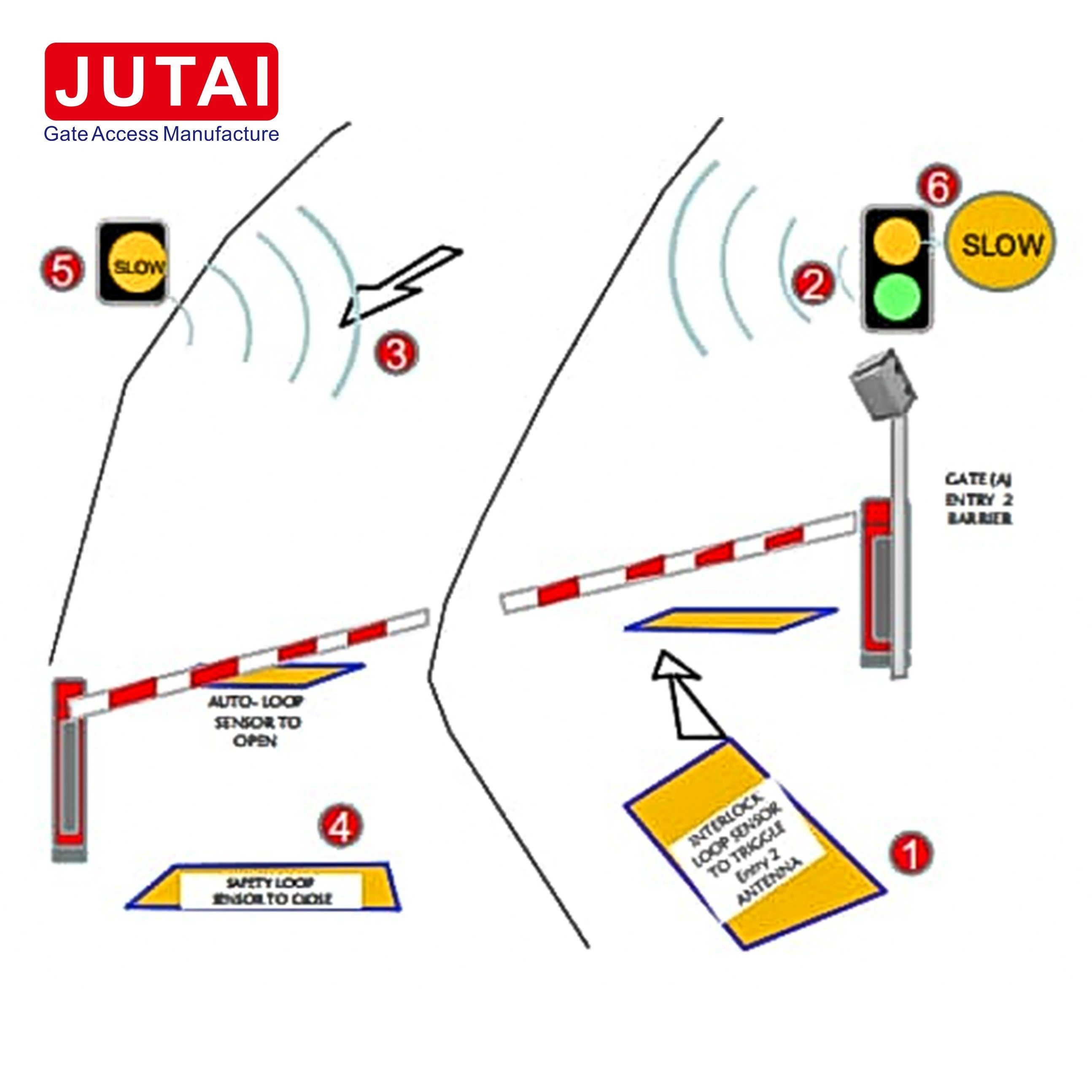

Loop Installation:
Trouble Shooting:
Mass Production:
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.
Certification:
