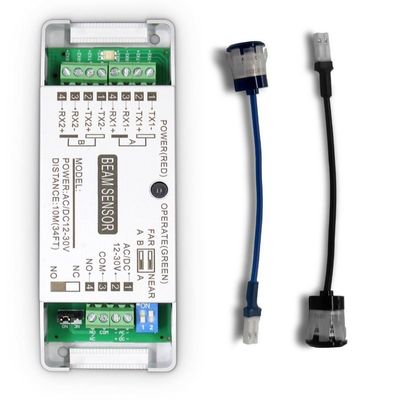

Seamless Integration Automatic Door Safety Beam with 5.5m Cable Length and Weatherproof Design
Product Details
| Working Voltage | AC/DC10-30VDC | Maximum Transceiver Distance | 13m |
|---|---|---|---|
| Rx Cable Length | 5.5m | Operating Temperature | -42~45 ℃ |
| Operating Humidity | 10~90%Rh | Material | ABS |
| Specification | 14*9*5.5 Cm | Output Type | Relay |
| Highlight | seamless integration automatic sliding door motion sensor,seamless integration automatic sliding door sensor,5.5m cable length automatic sliding door sensor |
||
Product Description
Seamless Integration Automatic Sliding Door Motion Sensor With 5.5m Cable Length
Product Overview
Product Name: Automatic Glass Sensor Door Safety Beam
The Automatic Door Safety Beam, crafted by Shenzhen Jutai Comm Co., Ltd., stands as a crucial safety element for automated doors. This innovative system, comprising infrared emitters and receivers, guarantees swift door cessation upon detecting obstructions, effectively averting accidents such as pinching or crushing.
Key Advantages
- Swift Obstruction Detection: Instantaneous halt upon obstruction detection ensures enhanced safety
- Versatile Application: Perfect for bustling environments like offices, retail outlets, and healthcare facilities
- Reliable Technology: Stably operates within a 10-meter range with rapid response, ensuring utmost safety and dependability
Product Features
- Seamless Integration: Seamlessly integrates with existing door systems, ensuring accurate detection and efficient operation
- High-Quality Sensor: Incorporates a premium photoelectric sensor for precise movement detection
- Reflective Beam Technology: Utilizes reflective beam sensor technology for obstacle detection
- Weatherproof Design: Engineered to endure diverse weather conditions with waterproof features
- Effortless Installation: User-friendly design simplifies installation and configuration
- Precision Drilling: Optimizes performance with 13mm diameter hole during electric eye installation
- Light Interference Resistance: Naturally resistant to light interference for reliable operation
Installation Guidelines
- Recommended Heights: Single beams at 60cm, double beams at 30cm and 90cm respectively
- Automatic Capture Range: Align transmitter and receiver during installation for consistent performance
- Clear Path Maintenance: Avoid blockage by maintaining clear path between transmitter and receiver
- Sunlight Avoidance: Avoid direct frontal exposure to intense sunlight during installation
- Safety Height: Position safety light minimum 20cm from the ground
Technical Specifications
| Working Voltage | AC/DC 10-30V DC |
| Quiescent Current | 18mA (12V Electricity) |
| Operating Current | 58mA (12V Electricity) |
| Maximum Transceiver Distance | 10m |
| Output Contact | Normally Open and Closed (Jumper cap selection setting) |
| RX Cable Length | 5.5m |
| TX Cable Length | 5.5m |
| Number of Beams | Single- or dual-beam option |
| Operating Temperature | -42°C to +45°C |
| Operating Humidity | 10-90% RH |
| Material | ABS |
| Controller Dimension | 109.5(L) × 41.1(W) × 25.6(H) mm |
| Beam Dimension | 19(L) × 13(D) mm |
Unique Selling Proposition: Safeguard your establishment's automated door operations with the Automatic Door Safety Beam from Shenzhen Jutai Comm Co., Ltd. Experience swift obstruction detection, precise movement control, and optimal safety assurance, all seamlessly integrated into your existing door systems.
