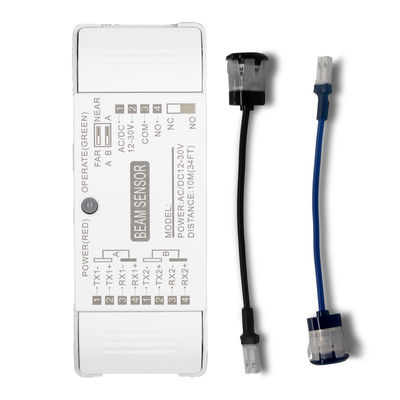

ABS Infrared Beam Sensor with 10m Detection Range and Weatherproof Design for Automatic Door Safety
Product Details
| Working Voltage | AC/DC10-30VDC | Maximum Transceiver Distance | 13m |
|---|---|---|---|
| Rx Cable Length | 5.5m | Operating Temperature | -42~45 ℃ |
| Operating Humidity | 10~90%Rh | Material | ABS |
| Specification | 14*9*5.5 Cm | Output Type | Relay |
| Infrared Beams Group | 1 Pair Or 2 Pairs | ||
| Highlight | abs sliding door sensors,abs automatic sliding door sensor,10m detection range sliding door sensors |
||
Product Description
Safety Beams ABS Infrared Sliding Door Sensors With 10m Detection Range
Product Overview
The Automatic Glass Sensor Door Safety Beam from Shenzhen Jutai Comm Co., Ltd. represents advanced safety technology for automated door systems. Designed to prevent potential hazards, this innovative device ensures reliable obstruction detection for enhanced user safety and security.
Key Advantages
- Instantaneous Obstruction Detection: Promptly stops door operation upon detecting obstructions, minimizing accident risks
- Versatile Application: Suitable for high-traffic environments including office complexes, retail outlets, and medical facilities
- Dependable Technology: Features a stable 10m operating range with rapid response times for consistent, secure performance
Technical Features
- Enhanced Infrared Range and Communication System for reliable detection and seamless integration
- High-Quality Photoelectric Sensor for precise movement detection and automatic door control
- Reflective Beam Sensor Technology for optimal obstacle detection and operational efficiency
- Weatherproof Design with waterproof features for outdoor installations and diverse weather conditions
- Effortless Installation with hassle-free setup and configuration
- Precision Drilling with 13mm diameter hole for reliable electric eye installation
- Recommended Installation Heights: Single beam at 60cm, or double beams at 30cm and 90cm
- Automatic Capture Range Alignment for consistent horizontal and vertical performance
- Obstruction Avoidance design prevents blockage and malfunction
- Light Interference Resistance with protection against natural light interference
- Safety Height compliance with minimum 20cm from ground positioning
Product Images
Wiring Definition
Product Parameters
| Parameter | Specification |
|---|---|
| Working Voltage | AC/DC 10-30V DC |
| Quiescent Current | 18mA (12V Electricity) |
| Operating Current | 58mA (12V Electricity) |
| Maximum Transceiver Distance | 10m |
| Output Contact | Normally Open and Closed (Jumper cap selection setting) |
| RX Cable Length | 5.5m |
| TX Cable Length | 5.5m |
| Number of Beams | Single- or dual-beam option |
| Operating Temperature | -42°C to 45°C |
| Operating Humidity | 10-90% RH |
| Material | ABS |
| Controller Dimension | 109.5(L) × 41.1(W) × 25.6(H) mm |
| Beam Dimension | 19(L) × 13(D) mm |
