IS-30R Wireless Infrared Gate Sensor with 180 Degree Rotation 30m Range and IP66 Waterproof
Product Details
| Receiver | 12 - 24V AC 12 - 30V DC | Rotation Angle | 180 Degree |
|---|---|---|---|
| Receiver Power Consumption | 30mA @ 12V DC | Transmitter Battery Life | Minimum 2 Years |
| Specified Operating Distance | 30m | Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact |
| Size | 113*46.79*47.72mm | Waterproof | IP66 |
| Highlight | IS-30R Infrared Gate Sensor,gate infrared sensors 180 Degrees,Infrared Gate Sensor 180 Degrees |
||
Product Description
IS-30R External Rotation Wireless Gate Infrared Sensors 180 Degrees
Outdoor Wireless Photocell Sunproof Ultra-Low Power Battery Over Two Years 30m
Product Overview
The IS-30R External Rotation Wireless Infrared Gate Sensor revolutionizes gate safety and automation with its innovative features and reliable performance. Designed for seamless installation and optimal convenience, this sensor offers 180-degree external rotation, wireless operation, and long-distance performance, making it ideal for a wide range of entrance gate applications. Its ant-proof and weather-resistant enclosure ensure durability and reliability in any environment.
Key Features
- External Rotation, 180 Degrees: Effortlessly adjust for optimal alignment, ensuring simple installation and reducing labor costs
- Wireless and Battery-Operated Transmitter: Save time and money with a transmitter that operates wirelessly and runs on batteries

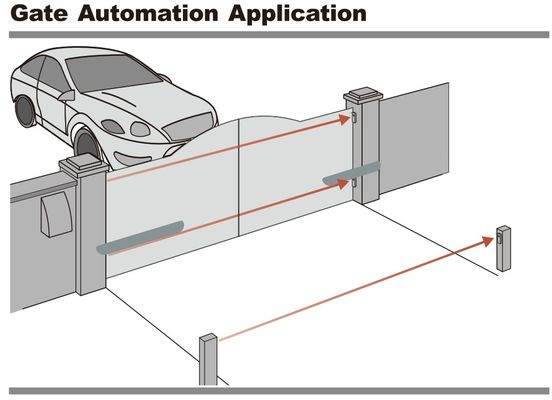

- 30 Meters Operating Range: Perfect for a wide range of entrance gate applications, providing ample coverage
- Ant-Proof and Weather-Resistant Enclosure: Built to withstand environmental factors, ensuring reliable operation in various conditions
- Audible Feedback for Easy Setup: The transmitter offers audible feedback, simplifying setup procedures and providing battery-low indication
- Low Power Consumption: Enjoy enhanced efficiency with low power consumption across the entire system
- Compatibility with Intruder-Detection Alarms: Seamlessly integrate with intruder-detection alarms to bolster perimeter security measures
- Built-in Laser Beam Alignment System: Facilitates quick and easy installation with a built-in laser beam alignment system, ensuring precise positioning
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 12-24VAC, 12-30VDC |
| Transmitter | 2 x AAA alkaline batteries (Supplied) |
| Receiver | 12-24VAC, 12-30VDC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12VDC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic-im'@ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP66 |
| Housing Material | PC (UV) |

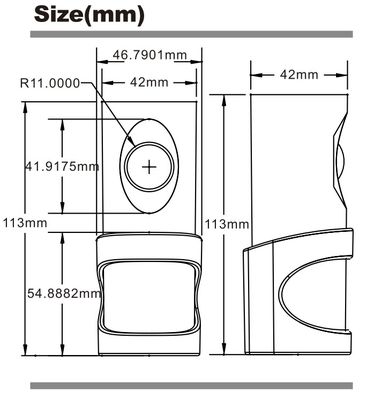

| Size | 113 x 46.79 x 47.72mm |

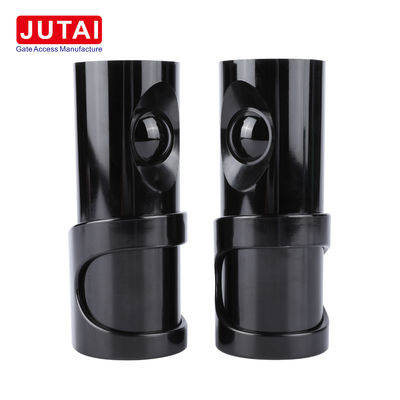

Product Images
Why Choose IS-30R?
180 Degree External Rotation Alignment
Simplifies installation and enhances convenience, especially for special project sites
Low Power Consumption
Enjoy reliable operation for years with minimal battery usage
Highly Cost-Effective
Provides a cost-effective detection solution without compromising on safety
Compatible with Any Brands Gate Operators
Versatile beams compatible with a wide range of gate automation equipment
Long-Distance Performer
With a 30-meter operating range, suitable for virtually any entrance gate
