Wireless Rotating Photoelectric Sensor Ultra Low Power Sun Resistant Sensor 30m

Place of Origin China
Brand Name JUTAI
Certification CE, FCC
Model Number IS-30R
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Receiver 12 - 24V AC 12 - 30V DC Rotation Angle 180 Degree
Receiver Power Consumption 30mA @ 12V DC Transmitter Battery Life Minimum 2 Years
Specified Operating Distance 30m Output Contact Fail-Safe, N/C And N/O, Potential Free Contact
Size 113*46.79*47.72mm Waterproof IP66
Highlight

Wireless Rotating Photoelectric Sensor

,

Ultra Low Power Sun Resistant Sensor

,

Photoelectric Sensor 30m

Leave a Message
Product Description

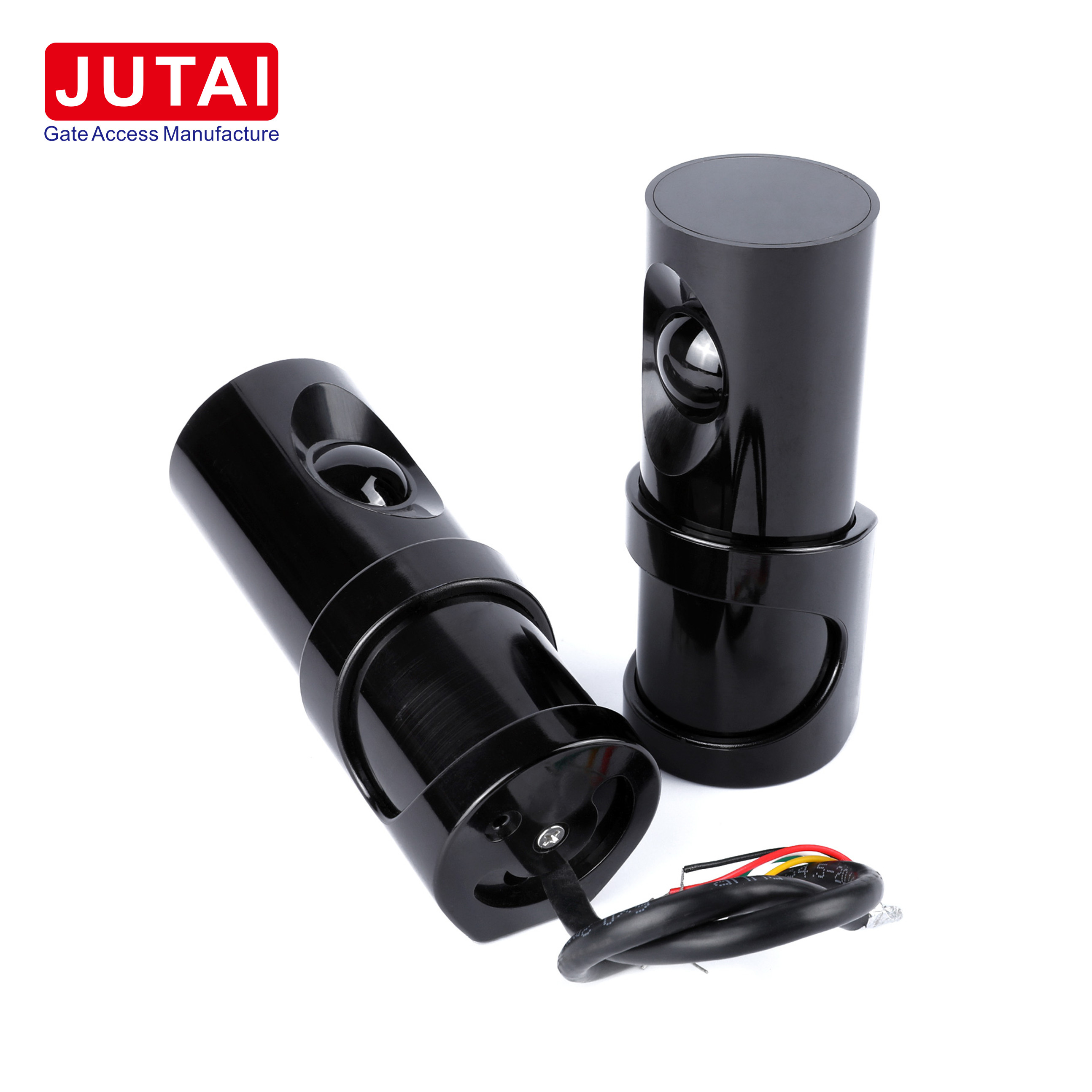

Wireless Rotating Photoelectric Sensor Ultra-Low-Power Sun-Resistant Sensor 30m



Product Name: IS-30R External Rotation Wireless Infrared Gate Sensor



Product Description: The IS-30R External Rotation Wireless Infrared Gate Sensor is an advanced safety solution designed to ensure secure and convenient access control for residential, commercial, and industrial gate systems. With its innovative external rotation feature and wireless operation, this sensor simplifies installation, saves on labor costs, and offers reliable performance in various weather conditions.



Key Features:

Feature Description
External Rotation, 180 Degrees Effortlessly adjust for optimal alignment, ensuring simple installation and reducing labor costs.
Wireless and Battery-Operated Transmitter Save time and money with a transmitter that operates wirelessly and runs on batteries.
30 Meters Operating Range Perfect for a wide range of entrance gate applications, providing ample coverage.
Ant-Proof and Weather-Resistant Enclosure Built to withstand environmental factors, ensuring reliable operation in various conditions.
Audible Feedback for Easy Setup The transmitter offers audible feedback, simplifying setup procedures and providing battery-low indication.
Low Power Consumption Enjoy enhanced efficiency with low power consumption across the entire system.
Compatibility with Intruder-Detection Alarms Seamlessly integrate with intruder-detection alarms to bolster perimeter security measures.
Built-in Laser Beam Alignment System Facilitates quick and easy installation with a built-in laser beam alignment system, ensuring precise positioning.



Why Choose IS-30R External Rotation Wireless Infrared Gate Sensor?

  1. 180 Degree External Rotation: The IS-30R's most outstanding feature is its 180-degree external rotation, allowing for easy adjustment and convenient installation, especially in special project sites.

  2. Low Power Consumption: With a wireless transmitter that requires only two AA batteries (not included) and operates reliably for up to two years, the IS-30R ensures efficient energy usage and long-lasting performance.

  3. Highly Cost-Effective: Delivering a highly cost-effective detection solution, the IS-30R ensures gate safety without breaking the bank, providing peace of mind without compromising on quality.

  4. Compatibility: Compatible with gate operators from various brands and with supply voltages ranging from 12V to 30V DC, the IS-30R offers versatility and adaptability to different gate systems.

  5. Long-Distance Performance: With a 30-meter operating range, the IS-30R is suitable for wide entrances, making it ideal for virtually any entrance gate application.



Product Parameters

IS-30R External Rotation Infrared Safety Beam Specification:



Parameter Specification
Power Supply 12-24VAC, 12-30VDC
Transmitter 2 x AAA alkaline batteries (Supplied)
Receiver 12-24VAC, 12-30VDC
Rotation Angle 180 Degree
Receiver Power Consumption 30mA @ 12VDC
Transmitter Battery Life Minimum 2 years
Battery Low indication Audible Beep
Specified Operating Distance 30m
Alignment Automatic-im'@ 10m (circular area - assumes parallel surface)
Output Contact Fail-safe, N/C and N/O, potential free contact
Output Contact Rating 3A @ 30V DC Non-inductive
Operating Temperature -20°C - +60°C
Operating Humidity 0 - 90% Non-condensing
Degree of Protection IP66
Housing Material PC (UV)

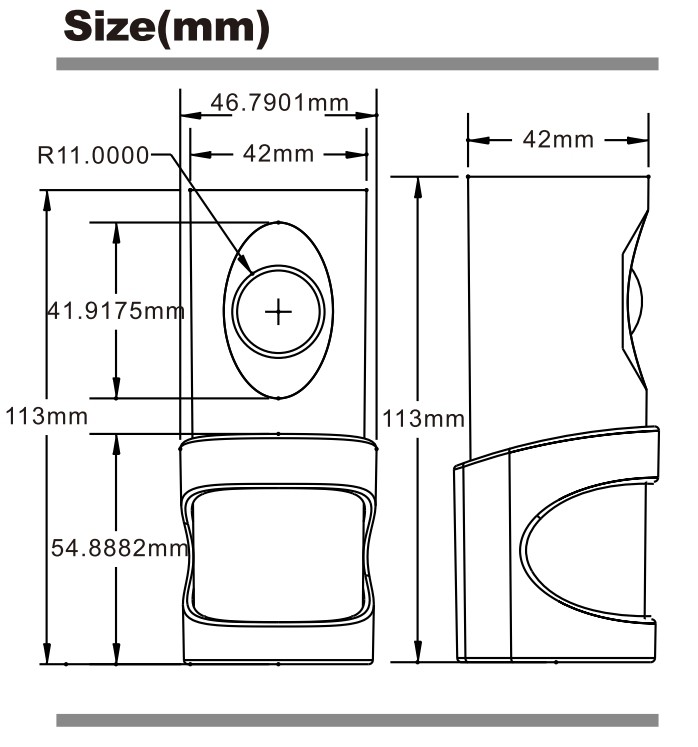

Size 113 x 46.79 x 47.72mm
Functions

12V-24V Infrared Photocell Sensor Rotational Easy Install

12V-24V Infrared Photocell Sensor Rotational Easy Install



Wireless Rotating Infrared Sensor: Enhanced Security and Hassle-Free Installation



Experience enhanced security and effortless installation with our Wireless Rotating Infrared Sensor. Here's why it's the perfect choice for your security needs:

  1. External Rotation, 180 Degrees:

    • Effortlessly adjust the sensor for optimal alignment with its 180-degree external rotation feature. This ensures simple installation and reduces labor costs, saving you time and money.
  2. Wireless and Battery-Operated Transmitter:

    • Say goodbye to complicated wiring and power outlets. Our sensor's transmitter operates wirelessly and runs on batteries, offering convenience and flexibility during installation.
  3. 30 Meters Operating Range:

    • Enjoy ample coverage with a 30-meter operating range, making our sensor perfect for a wide range of entrance gate applications.
  4. Ant-Proof and Weather-Resistant Enclosure:

    • Built to withstand environmental factors, our sensor features an ant-proof and weather-resistant enclosure, ensuring reliable operation in various conditions.
  5. Audible Feedback for Easy Setup:

    • Simplify setup procedures with audible feedback from the transmitter. It provides easy installation guidance and indicates low battery levels, ensuring hassle-free operation.
  6. Low Power Consumption:

    • Benefit from enhanced efficiency with low power consumption across the entire system, extending battery life and reducing energy costs.
  7. Compatibility with Intruder-Detection Alarms:

    • Seamlessly integrate our sensor with intruder-detection alarms to bolster perimeter security measures, enhancing overall security effectiveness.
  8. Built-in Laser Beam Alignment System:

    • Facilitate quick and precise installation with our sensor's built-in laser beam alignment system. It ensures accurate positioning, streamlining setup procedures for optimal performance.

Elevate your security measures with our Wireless Rotating Infrared Sensor, offering enhanced security and hassle-free installation for your peace of mind.

Installation Instructions



12V-24V Infrared Photocell Sensor Rotational Easy Install





12V-24V Infrared Photocell Sensor Rotational Easy Install

Connection Diagram



12V-24V Infrared Photocell Sensor Rotational Easy Install
