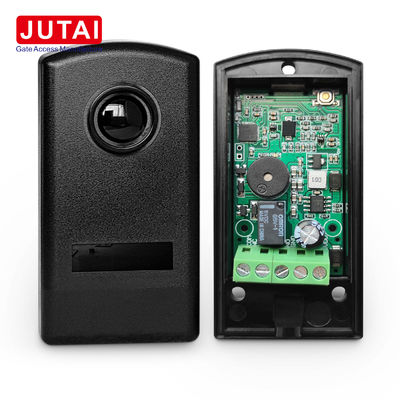

Customizable Wired Photoelectric Sensor with 30m Detection Range Anti Sunlight and IP65 Waterproof for Industrial Gates
Product Details
| IP Rating | IP65 | HS Code | 8531901000 |
|---|---|---|---|
| Package Size | 12.00cm * 11.70cm * 4.30cm | Package Gross Weight | 0.150kg |
| Detection Type | Photon Detector | Type | Wired |
| Highlight | wired photoelectric sensor,photoelectric sensor anti sunlight,customizable infrared photoelectric |
||
Product Description
Customizable Wired Photoelectric Sensor Anti Sunlight for Large Industrial Gate 30m
JUTAI IR-20M Infrared Beam Sensor
Experience reliable long-distance detection with the JUTAI IR-20M infrared beam sensor, designed for industrial applications requiring precision and durability.
Key Features
Long-Distance Detection
Up to 30 meters detection distance in outdoor sunlight conditions
High Sensitivity
Accurately detects very small objects or subtle movements
Fast Response Time
Extremely quick detection suitable for time-sensitive applications
High Interference Resistance
Resists environmental light interference including sunlight and vehicle lights
Easy Installation
Designed for straightforward installation and maintenance
Applications
- Automatic Doors and Access Control Systems
- Security Systems for perimeter, window, and door protection
- Industrial Automation in production lines and conveyor systems
- Parking Management for vehicle detection and barrier control
Technical Specifications
| Feature | Specification |
|---|---|
| Power Supply | 12-24VAC/VDC |
| Maximum Range | 20 Meters |
| Operating Temperature | -10 to +60°C |
| Maximum TX Working Current | 25mA |
| Maximum RX Working Current | 35mA |
| Maximum Relay Contact | 500mA at 48VAC/VDC |
| IP Rating | IP65 with rubber sealing |
Advanced Features
| Feature | Description |
|---|---|
| Versatile Integration | Seamlessly integrates with all door control systems |
| Flexible Mounting Options | Adaptable mounting including door edge integration |
| Automatic Door Safety | Reliable safety measures for automatic doors and gates |
| Wide Application Range | Suitable for various door types and freight elevators |
| Accurate Detection | Through-beam safety light curtains prevent accidents |
| Output Options | Versatile NO/NC and COM output methods |
| Efficient Operation | Low working current <20mA at DC12V |
| Blanking Functionality | Advanced function to prevent unnecessary relay activation |
| IP67 Waterproof Rating | Withstands harsh environmental conditions |
Each package includes an English Usage Manual with illustrated diagrams, offering comprehensive guidance for effortless installation and configuration.
Product Images
Product Summary
The JUTAI IR-20 Infrared Beam Sensor offers unmatched security and versatility across various applications, ensuring peace of mind and convenience in diverse industrial environments. With years of development and a comprehensive product range, JUTAI provides reliable solutions for all your infrared detection needs.
