IP65 Wired Photon Detector Infrared Beam Sensor For Home Security

Waterproof Infrared Photocell for Auto Gate Safety 12-24VADC 30M Detection Range

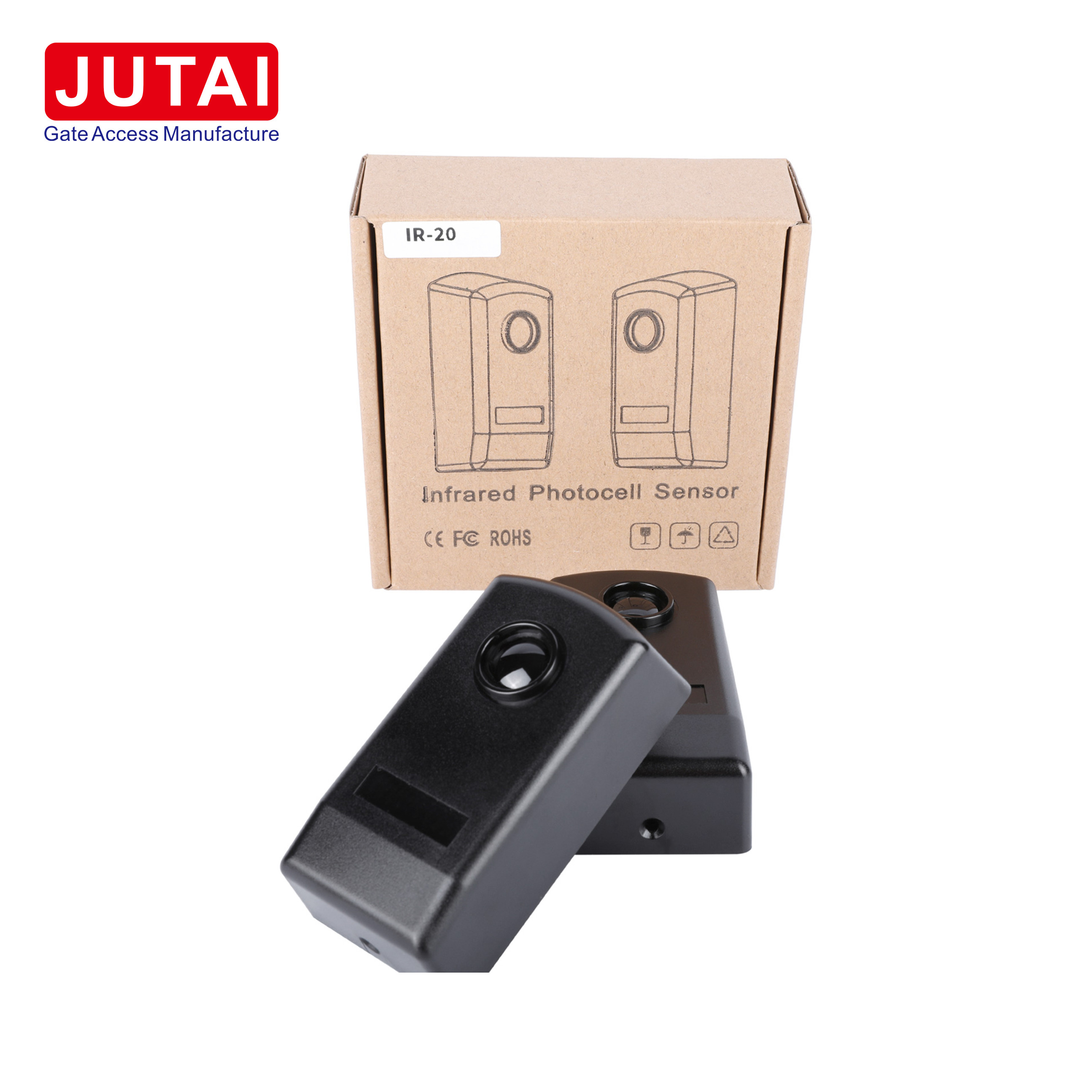

Experience enhanced security and convenience with the JUTAI Automatic Door Sensor Infrared Photocell. This meticulously designed sensor promptly detects interruptions in the infrared beam, triggering a relay switch signal for prompt action. Its versatility makes it ideal for various applications, including parking barriers, pedestrian gates, and vehicle gates for body induction. Additionally, it serves as a reliable anti-burglar detection system for windows, doors, and passageways.

Unique Features:

• Solitary Beam Detectors: Widely used in automated sliding doors, shutter doors, garage doors, and windows, these sensors provide reliable detection.

• Integrated Transmitter and Receiver: Featuring a transmitter and receiver with an integrated amplifier, the narrow infrared beam effectively counters external light interference.

• Dependable Detection Range: Despite mounting at a low elevation (20-40cm above ground level), these sensors maintain a reliable detection range spanning 2-20 meters.

• IR-20 Self-Detecting Capability: Specifically tailored for sliding doors, the IR-20 sensor halts door closure upon interruption of the self-detecting beam, ensuring swift retraction to the widest position. The door resumes motion until the detecting beam is reinstated, deactivating after complete closure.

Functionality:

Position detector pairs at opposing points to establish an infrared zone. Movement detection triggers an alarm signal relayed to the security alarm host (not included). Ideal for seamless integration into security setups in various environments.

Consistent Performance:

Maintaining consistent performance in inclement weather, the compact and IP65 waterproof-rated design ensures exceptional resistance to ultraviolet radiation and abrasive particulate matter, enhancing resilience in outdoor settings.

Comprehensive Support:

Each package includes an English Usage Manual with illustrated diagrams for effortless installation and configuration.

In summary, the JUTAI Automatic Door Sensor Infrared Photocell offers unparalleled security and versatility, providing peace of mind and convenience across diverse applications.




Technical parameter

Connection Details of JUTAI IR-20

To install the IR-20M photocell, please follow these step-by-step instructions:

1. Access the Interior: Lift the front panel of the photocell to access its interior components.

2. Cable Insertion and Base Fixation: Insert the cables into their respective housing slots and securely fix the base of the photocell to the wall.

3. Mounting on Wall or Metal Surface:

   • If mounting on a wall, drill three 5 ø holes and insert suitable screw anchors.
   • For mounting on metal surfaces, drill three 3 ø holes for self-tapping screws.

4. Make Connections: Connect the necessary cables and power the photocell with a voltage ranging between 12 and 24V DC/AC.

5. Ensure Proper Positioning: Ensure proper positioning, alignment, and connection of the photocell. The red LED on the receiver should remain off if everything is correctly configured. When the infrared beam is interrupted, the red LED will illuminate.

6. Cover with Front Panel: Once connections are verified, cover the photocell with the front panel. Insert it firmly until it stops, and then close it securely.

7. Test System: Test the system by interrupting the infrared beam multiple times to check the relay response.

8. Secure Front Panel: Finally, secure the front panel in place using the provided screws.

Following these steps diligently will ensure the proper installation and functioning of the IR-20M photocell.
