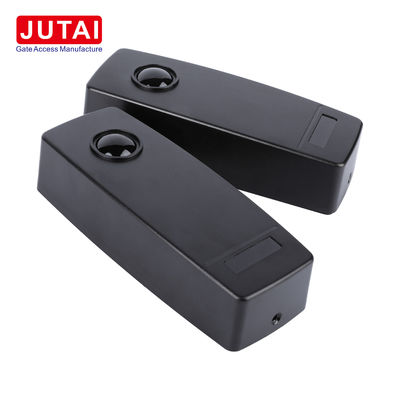

Wireless Infrared Photocell Sensor with 30m Operating Distance IP65 Waterproof and 2-Year Battery Life for Automatic Gates
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | infrared photocell gate sensor ip65,wireless infrared photocell sensor,wireless infrared photocell gate sensor |
||
Product Description
Wireless Automatic Gate Infrared Photocell Gate Sensor IP65 With Rubber
Wireless Automatic Gate Battery Infrared Beam Photocell with Ultra Low Power Consumption
Product Overview
Product Name: Wireless Battery-Powered Gate Photoelectric Infrared Sensor with 30m Range
Experience seamless gate operation with our Wireless Battery-Powered Gate Photoelectric Infrared Sensor. This advanced sensor ensures reliable gate operation with ultra-low power consumption and a two-year battery life.
Featuring a 30-meter operating range and IP65 waterproof design, it's perfect for outdoor use, resistant to sunlight and dust. The weather-resistant enclosure guarantees dependable performance in harsh conditions. Additional features include audible feedback for easy setup, low power consumption, compatibility with intruder-detection alarms, and a built-in laser beam alignment system for quick installation.
Key Features
- Long Battery Life: Ultra-low power consumption ensures over two years of continuous operation
- Extended Range: 30-meter operating range with IP65 waterproof design for outdoor use
- Robust Enclosure: Fully dust and weather-resistant for reliable performance in harsh conditions
- Audible Feedback: Easy setup and low battery alerts with audible feedback
- Efficient Power Consumption: Enhanced overall efficiency for prolonged operation
- Enhanced Security: Compatible with intruder-detection alarms for perimeter security
- Swift Installation: Built-in laser beam alignment system for quick and simple setup
Technical Specifications
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |
| Size | 51(L)*135(W)*32(H)mm |
Applications
