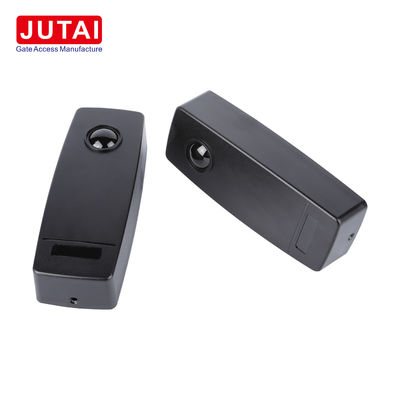

Wireless Infrared Photocell Beam Sensor with 30m Detection Sunlight Resistant and 2+ Years Battery Life
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | wireless infrared photocell,wireless photocell infrared sensor,sunlight resistant infrared photocell |
||
Product Description
Wireless Infrared Photocell Beam Sensors Sunlight Resistant 30m Detection
Product Overview
Introducing the Wireless Battery-Powered Gate Photoelectric Infrared Sensor, a cutting-edge solution crafted for superior gate automation and enhanced perimeter security. This advanced sensor integrates innovative technology with practical features to ensure reliable performance in even the most demanding environments.
Key Features
- Long Battery Life: Ultra-low power consumption with batteries lasting over two years
- Extended Operating Range: 30-meter detection capability for various gate types
- Weather-Resistant Enclosure: IP65 rated for dust-proof and weather-resistant operation
- Audible Feedback: Simple setup with low battery alerts
- Low Power Consumption: Engineered for maximum efficiency
- Intruder Detection Compatibility: Seamless integration with security systems
- Easy Installation: Built-in laser beam alignment system
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) |
| Receiver | 12-24V AC / 12-30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 0-90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |
| Size | 51(L) x 135(W) x 32(H) mm |
Applications
Client Projects
Advanced Features
The battery-powered infrared beam sensor is a versatile and reliable safety device designed for a wide range of security and automation applications. Featuring strong light resistance, waterproof capabilities, and an extended detection range of up to 30 meters.
| Feature | Description |
|---|---|
| Easy Installation | Battery-powered design allows for simple installation without extensive wiring |
| Strong Light Resistance | Reliable operation in bright sunlight or intense lighting conditions |
| Waterproof Construction | IP65 rating ensures durability in outdoor environments |
| Long Detection Range | Detects objects up to 30 meters away |
| Flexible Applications | Suitable for security systems, gate automation, and perimeter protection |
Installation & Business Support
Installation is streamlined with the built-in laser beam alignment system, ensuring perfect alignment for maximum detection accuracy. At JUTAI, we support customers in developing their own brand and enhancing local marketing efforts with comprehensive solutions for gate automation and villa security.
