Wireless Battery Infrared Photocell Beam Sensor with 30m Operating Distance, IP65 Waterproof, and 2-Year Battery Life for Sliding Doors
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | jutai sliding door sensor system,sliding door sensor system wireless,jutai infrared photocell |
||
Product Description

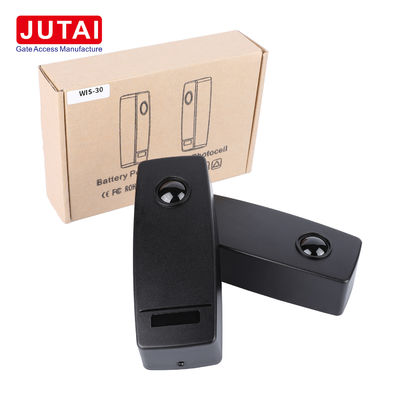

JUTAI Sliding Door Sensor System Wireless Battery Infrared Photocell Beam Sensor
Sliding Door Wireless Battery Infrared Photocell Beam Sensor with sunlight resistance and 30m operating range.
Product Overview
The Wireless Battery-Powered Gate Photoelectric Infrared Sensor ensures reliable gate operation with ultra-low power consumption and extended battery life. Featuring a 30-meter operating range and IP65 waterproof design, it's engineered for outdoor use with resistance to sunlight and dust.
Key Features
- Wireless transmitter powered by batteries with ultra-low power consumption
- Battery life exceeding two years for cost and time savings
- 30-meter operating range suitable for most entrance gates
- IP65 waterproof design, impervious to sunlight and dust
- Fully dust-resistant and weather-resistant enclosure
- Audible feedback for easy setup and low battery alerts
- Compatible with Intruder-detection Alarms for enhanced security
- Built-in laser beam alignment system for quick installation
Technical Specifications
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries |
|---|---|
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |

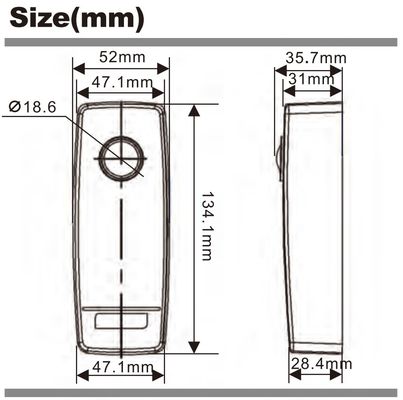

| Size | 51(L) * 135(W) * 32(H)mm |

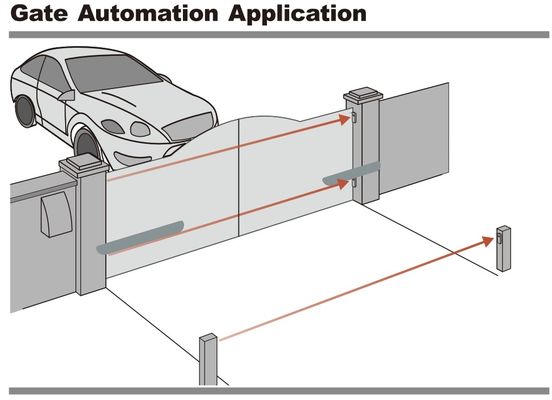

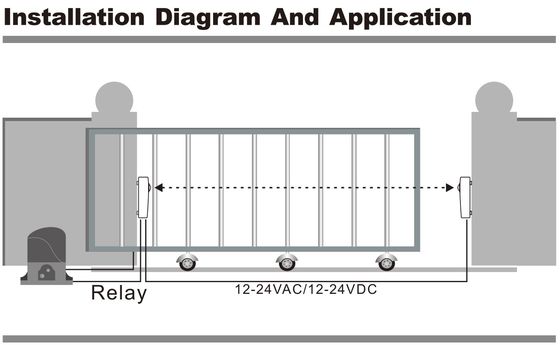

Applications
