Wireless Photoelectric Infrared Sensor with 30m Operating Range 2 Years Battery Life and IP65 Waterproof for Gates
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | wireless infrared gate sensor,wireless photoelectric infrared sensor,battery powered infrared gate sensor |
||
Product Description

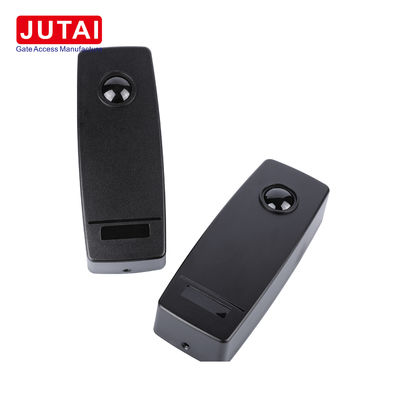

Wireless Battery Powered Gate Photoelectric Infrared Sensor With PC Housing
30m Swing Door Long lasting Wireless Photocell 2 Years Battery Sensor Outdoor Resistant
Product Overview
The Wireless Battery-Powered Gate Transmitter ensures reliable gate operation with ultra-low power consumption and a two-year battery life. Featuring a 30-meter operating range and IP65 waterproof design, it's perfect for outdoor use, resistant to sunlight and dust. Its weather-resistant enclosure guarantees dependable performance in harsh conditions.
Experience seamless gate operation with the Wireless Battery-Powered Gate Transmitter, offering long-lasting battery life, a wide operating range, and enhanced reliability for outdoor use.
Key Features
- Efficient Battery Power: Ultra-low power consumption with battery life exceeding two years
- Extensive Operating Range: 30-meter range suitable for nearly all entrance gates
- Weather Resistant: IP65 waterproof design, impervious to sunlight and dust
- Robust Construction: Fully dust-resistant and weather-resistant enclosure
- Audible Feedback: Facilitates easy setup and alerts for low battery levels
- Enhanced Efficiency: Maintains low power consumption for energy savings
- Compatibility: Works with Intruder-detection Alarms for perimeter security
- Easy Installation: Built-in laser beam alignment system for accurate setup
Technical Specifications
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |

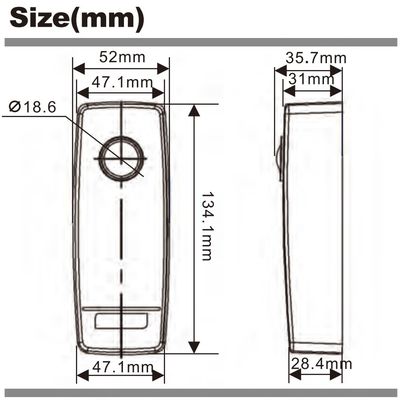

| Size | 51(L)*135(W)* 32(H)mm |

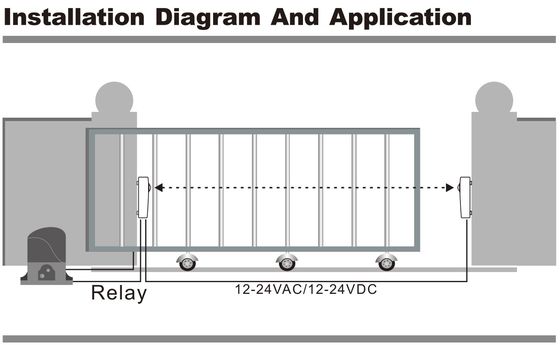

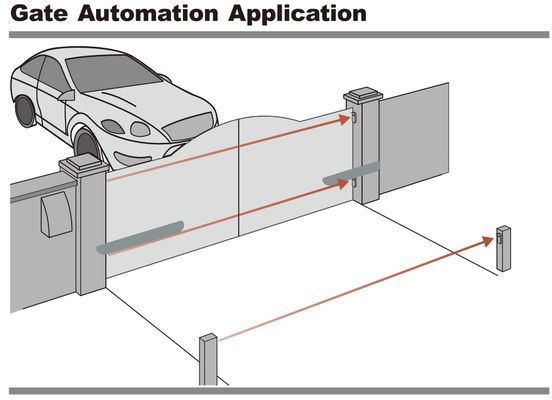

Applications
