Barrier Gate Wireless Infrared Photocell Gate Sensor Sunlight Resistant 30m
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | Wireless Infrared Photocell Gate Sensor,Barrier Gate Infrared Photocell Gate Sensor,Wireless Infrared Photocell Gate Sensor 30m |
||
Product Description

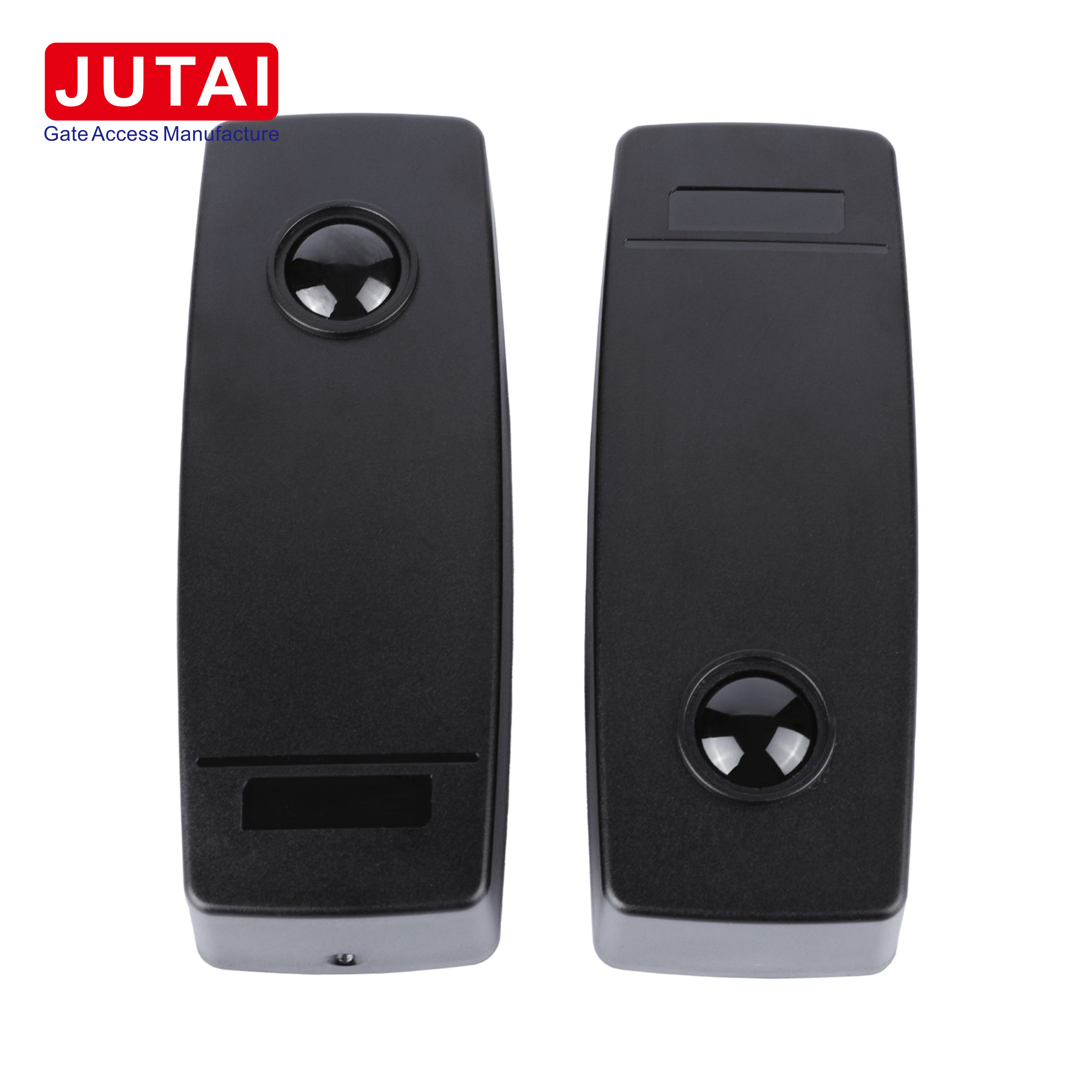

Barrier Gate Wireless Infrared Photocell Gate Sensor Sunlight Resistant 30m
Product Overview
Wireless Battery-Powered Gate Photoelectric Infrared Sensor with 30m range, designed for reliable gate operation in outdoor environments.
Key Features
- Long Battery Life: Ultra-low power consumption enables battery life exceeding two years
- Wide Operating Range: 30-meter range with IP65 waterproof design resistant to sunlight and dust
- Reliable Performance: Fully dust-resistant and weather-resistant enclosure for harsh conditions
- Audible Feedback: Easy setup with alerts for low battery levels
- Efficient Operation: Maintains low power consumption for enhanced efficiency
- Perimeter Security Compatibility: Works with intruder-detection alarms
- Easy Installation: Built-in laser beam alignment system for quick setup
Product Description
The Wireless Battery-Powered Gate Transmitter ensures reliable gate operation with ultra-low power consumption and two-year battery life. Its 30-meter operating range and IP65 waterproof design make it perfect for outdoor use, resistant to sunlight and dust. The weather-resistant enclosure guarantees dependable performance even in harsh conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |

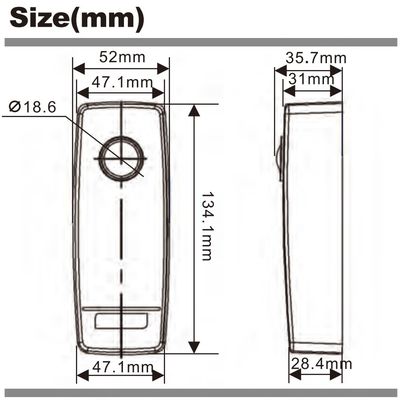

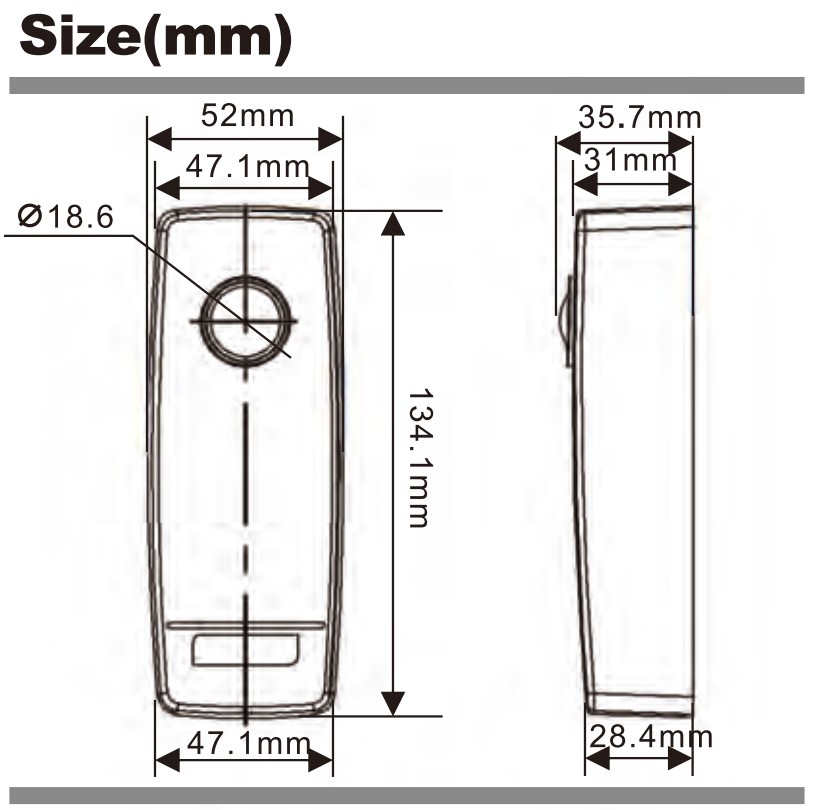

| Size | 51(L)*135(W)*32(H)mm |

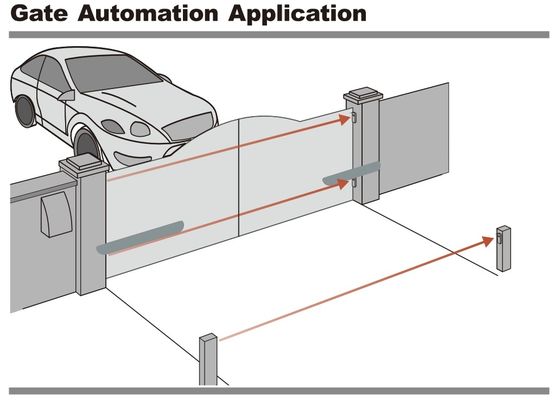

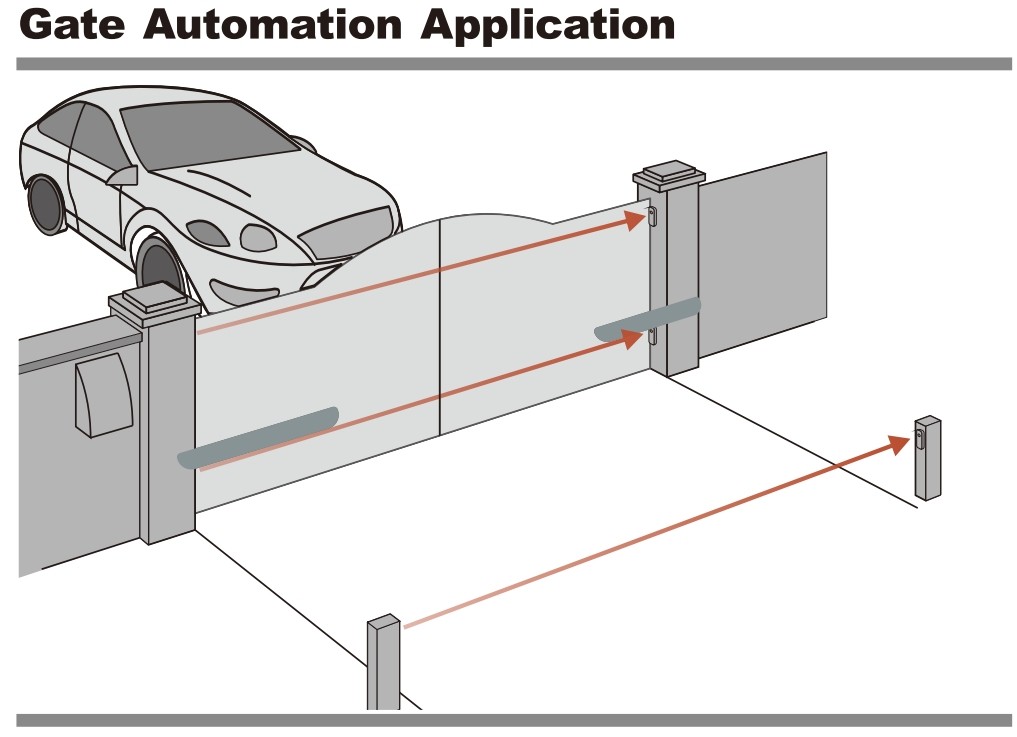

Applications
