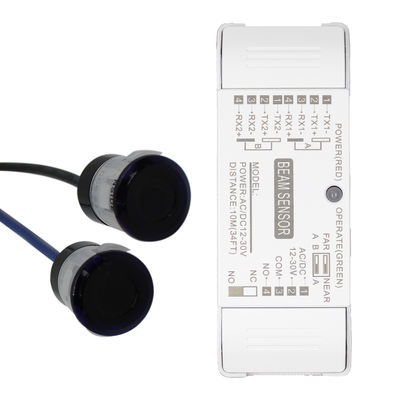

Infrared Beam Detector For Automatic Sensor Door 10m Detection Range
Product Details
| Working Voltage | AC/DC10-30VDC | Maximum Transceiver Distance | 13m |
|---|---|---|---|
| Rx Cable Length | 5.5m | Operating Temperature | -42~45 ℃ |
| Operating Humidity | 10~90%Rh | Material | ABS |
| Specification | 14*9*5.5 Cm | Output Type | Relay |
| Highlight | 10m detection range infrared beam detector,10m detection range infrared beam motion detector,abs infrared beam detector |
||
Product Description
Infrared Beam Detector For Automatic Sensor Door 10m Detection Range
Product Overview
Dual Pair Infrared Beam Sensor For Automatic Sensor Door with 10m Detection range
Product Details
Product Name: Automatic Door Safety Beam
Manufacturer: Shenzhen Jutai Comm Co., Ltd.
The Automatic Door Safety Beam is a crucial safety component for automatic door systems. This innovative apparatus, comprising infrared emitters and receivers, serves as a vigilant guardian that swiftly halts door operations upon detecting obstructions, preventing accidents like pinching or crushing.
Key Advantages
- Immediate Obstruction Detection: Ensures swift door halting upon obstruction detection, prioritizing safety in bustling environments
- Versatile Application: Tailored for various settings including offices, retail stores, and hospitals where safety and efficiency are paramount
- Reliable Technology: Harnesses reliable safety technology from the reputable Shenzhen Jutai Comm Co., Ltd.
Technical Features
- Infrared Range and Communication System: Seamless integration with existing door systems with reliable infrared range for accurate detection
- Photoelectric Sensor: High-quality sensor enabling precise movement detection and efficient automatic door control
- Reflective Beam Sensor: Utilizes reflective beam sensor technology to detect objects in its path
- Waterproof Design: Designed to endure diverse weather conditions, suitable for outdoor applications
- Effortless Installation: User-friendly design simplifies installation and configuration
- Precision Drilling: Optimize performance with 13mm diameter hole during electric eye installation
- Light Interference Resistance: Resilient against natural light interference
Installation Guidelines
Recommended Heights: For optimal performance, install single beam at 60cm height; for double beams, position one set at 30cm and the other at 90cm.
Automatic Capture Range: Align transmitter and receiver during installation to maintain consistent performance in both horizontal and vertical directions.
Avoid Blockage: Maintain clear path between transmitter and receiver to prevent malfunctions.
Light Interference: Avoid direct frontal exposure to strong sunlight during installation.
Safety Height: Position safety light at minimum height of 20cm from ground for optimal functionality and compliance.
Wiring Definition
Product Parameters
| Parameter | Specification |
|---|---|
| Working Voltage | AC/DC 10-30V DC |
| Quiescent Current | 18mA (12V Electricity) |
| Operating Current | 58mA (12V Electricity) |
| Maximum Transceiver Distance | 10m |
| Output Contact | Normally Open And Closed (Jumper cap selection setting) |
| RX Cable Length | 5.5m |
| TX Cable Length | 5.5m |
| Number of Beams | Single- or dual-beam option |
| Operating Temperature | -42°C to +45°C |
| Operating Humidity | 10-90% RH |
| Material | ABS |
| Controller Dimension | 109.5(L) × 41.1(W) × 25.6(H) mm |
| Beam Dimension | 19(L) × 13(D) mm |
