30m Wired Infrared Gate Beam For Automatic Gate Safety
Product Details
| IP Rating | IP65 | HS Code | 8531901000 |
|---|---|---|---|
| Package Size | 12.00cm * 11.70cm * 4.30cm | Package Gross Weight | 0.150kg |
| Detection Type | Photon Detector | Type | Wired |
| Highlight | wired infrared gate beam,wired infrared beam detector,gate safety infrared gate beam |
||
Product Description

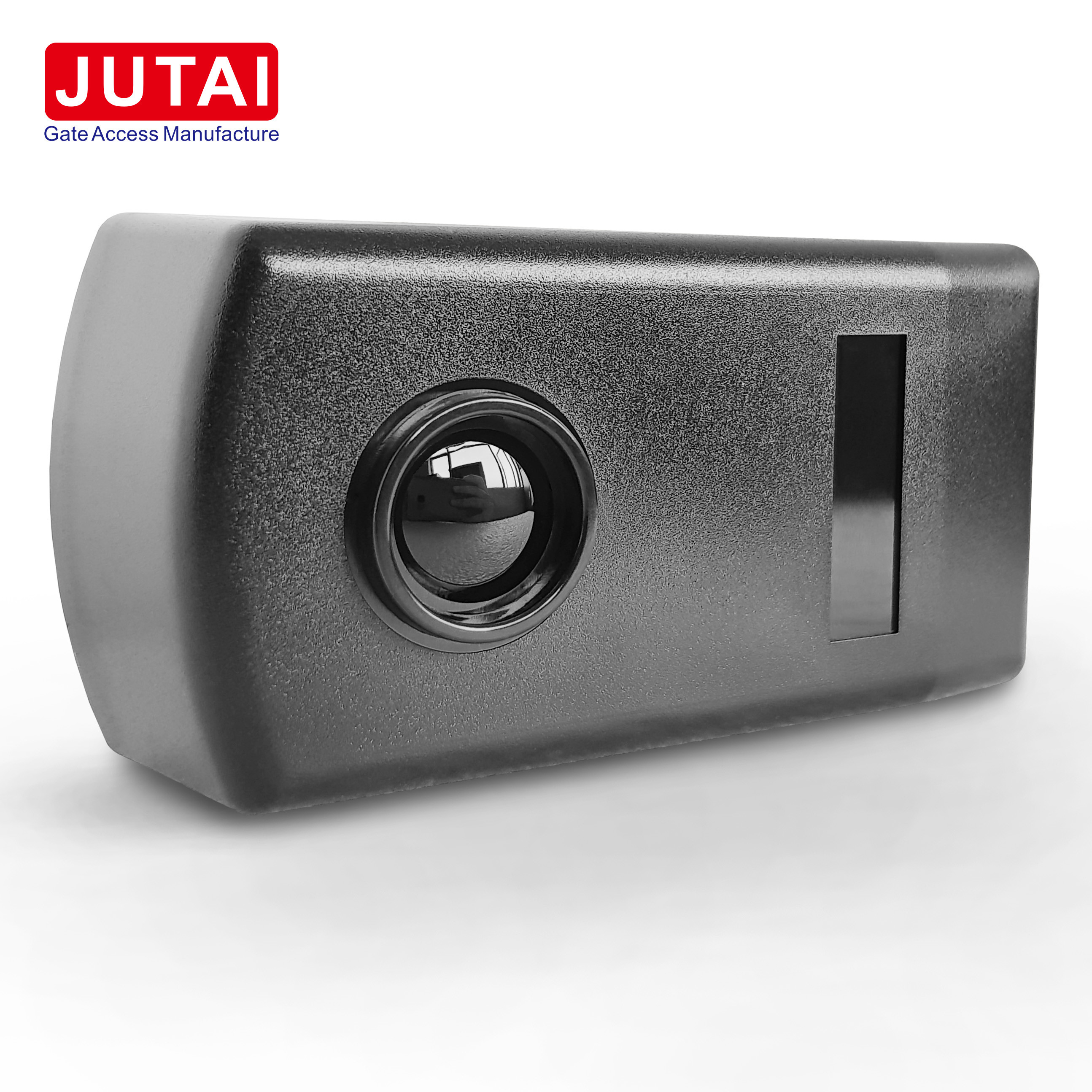

30m Wired Infrared Gate Beam For Automatic Gate Safety
Product Overview
Enhancing Security and Efficiency with JUTAI IR-20 Infrared Beam Sensor
Key Features
- Long-Distance Detection: Up to 30 meters detection range even in outdoor sunlight, ensuring extensive coverage and reliable detection capabilities
- High Sensitivity: Accurately detects even the smallest objects or subtle movements for heightened security and efficiency
- Fast Response Time: Extremely fast response times ideal for applications requiring quick detection and swift action
- High Interference Resistance: Designed to resist environmental light interference from sunlight or vehicle lights for stable performance
- Easy Installation: Simple installation and alignment process minimizes downtime and maintenance hassle
Applications
- Automatic Doors and Access Control Systems: Detects people or vehicles passing through, automatically controlling door opening and closing
- Security Systems: Detects unauthorized entry for perimeter, window, and door security applications
- Industrial Automation: Used in production lines and conveyor belts to detect object positions and control machinery operations
- Parking Management: Detects vehicle entry and exit, controlling barrier gates and monitoring parking space occupancy
Technical Specifications
| Feature | Specification |
|---|---|
| Power Supply | 12-24VAC/VDC |
| Max. Range | 20 Meters |
| Operating Temperature | -10 to +60°C |
| Max. TX Working Current | 25mA |
| Max. RX Working Current | 35mA |
| Max. Relay Contact | 500mA at 48VAC/VDC |
| IP Rating | IP65 with rubber |
Installation Instructions
- Access the Interior: Open the front panel of the photocell to access interior components
- Cable Insertion and Base Fixation: Insert cables into designated slots and securely fix the base to the wall
- Mounting: Drill holes and insert suitable screws for wall or metal surface mounting
- Make Connections: Connect cables and power with 12-24V DC/AC voltage
- Ensure Proper Positioning: Align photocell properly - red LED remains off when correctly aligned
- Test System: Interrupt infrared beam to verify relay response
- Secure Front Panel: Replace front panel and secure with provided screws
Advantages and Features
- Versatile integration with all door control systems
- Flexible mounting options including door edge integration
- Reliable safety measures for automatic doors and gates
- Wide application range for various door types and industrial uses
- Accurate detection of people or objects passing through
- Efficient operation with low working current and versatile output options
- IP67 waterproof rating for harsh environments

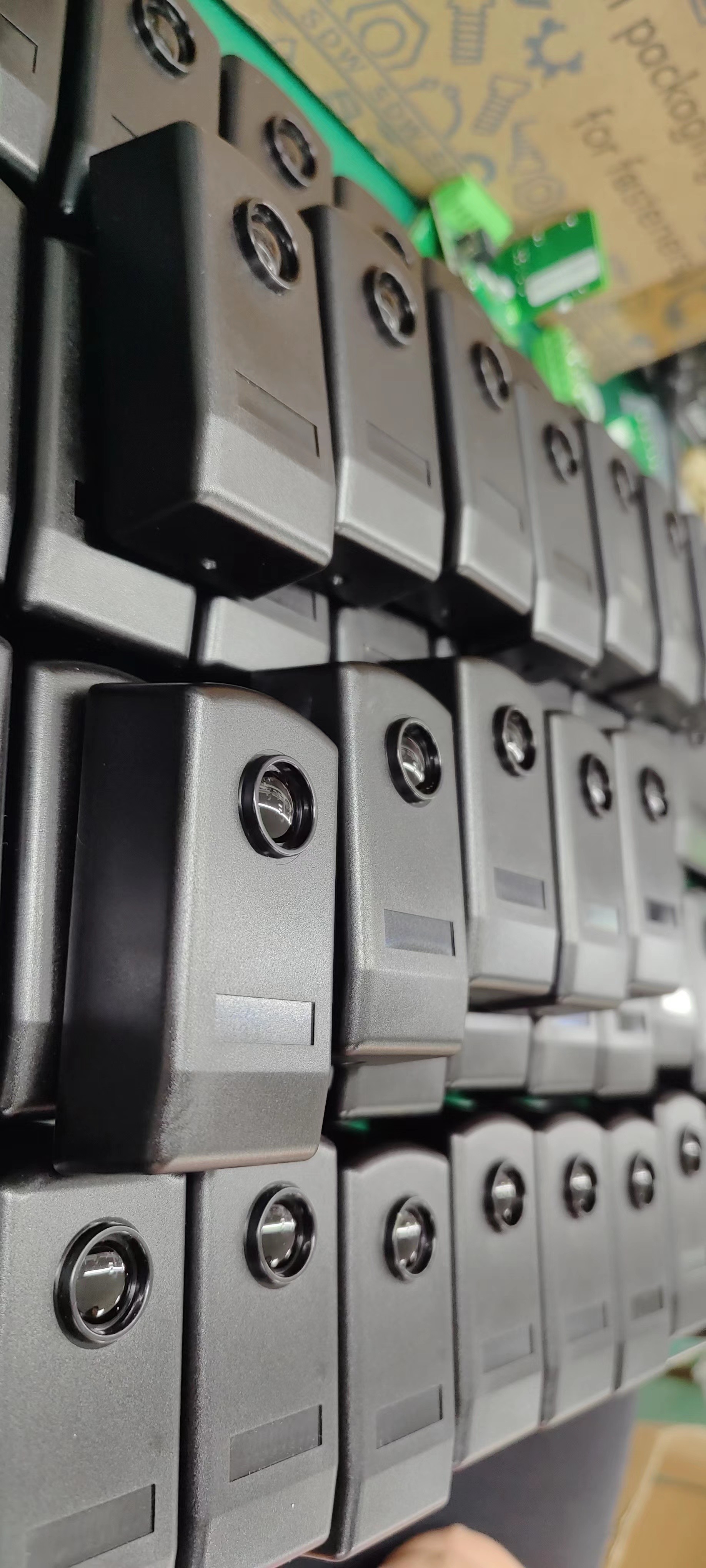

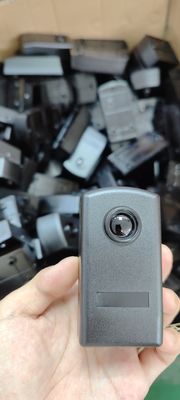

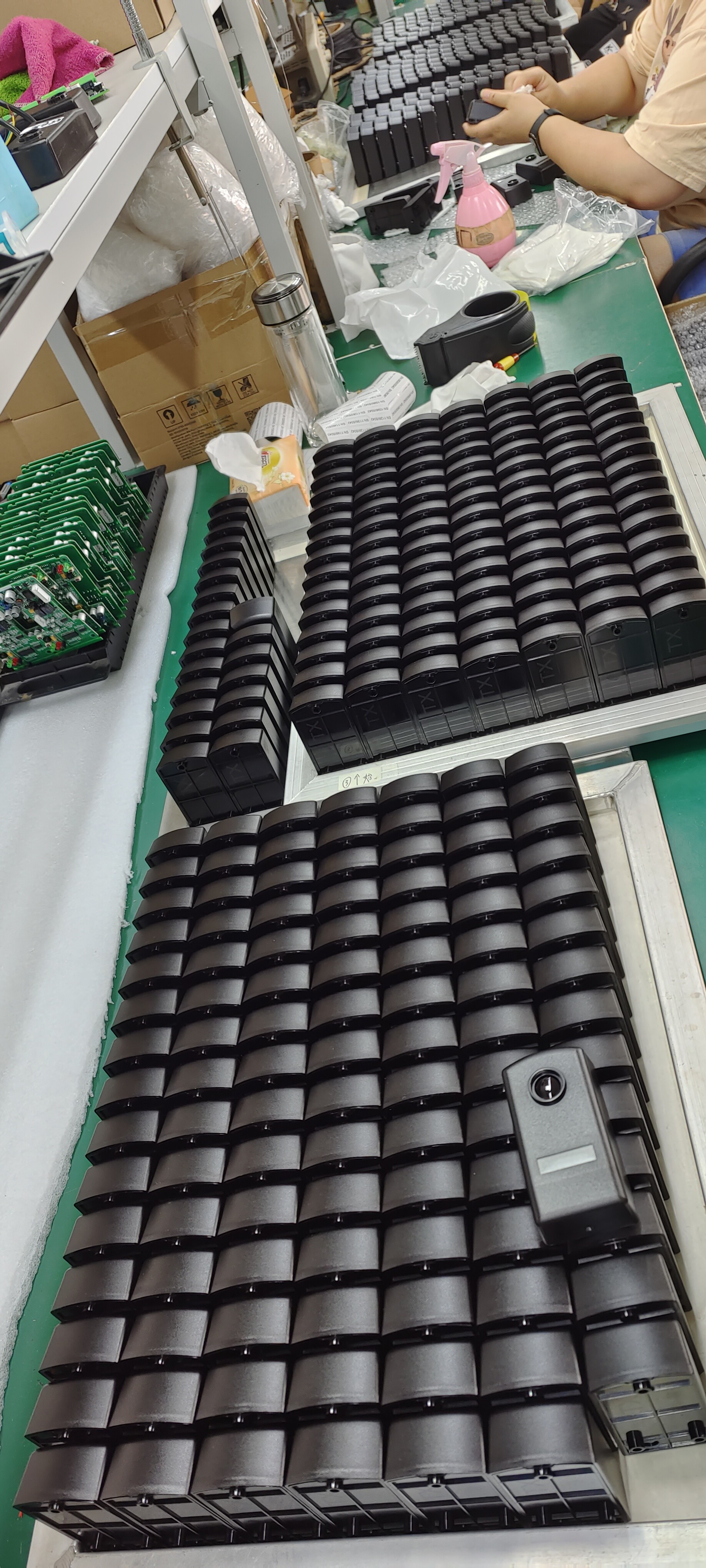

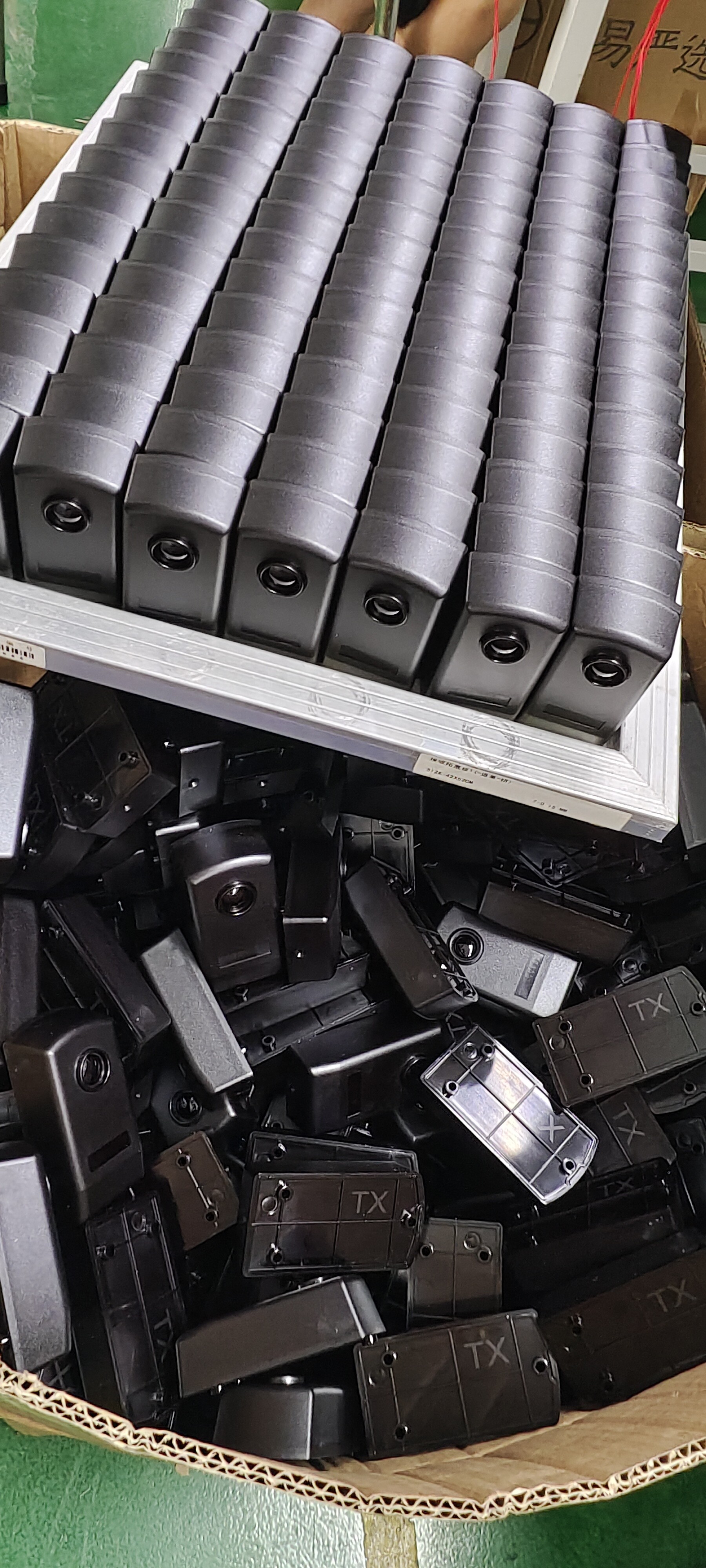

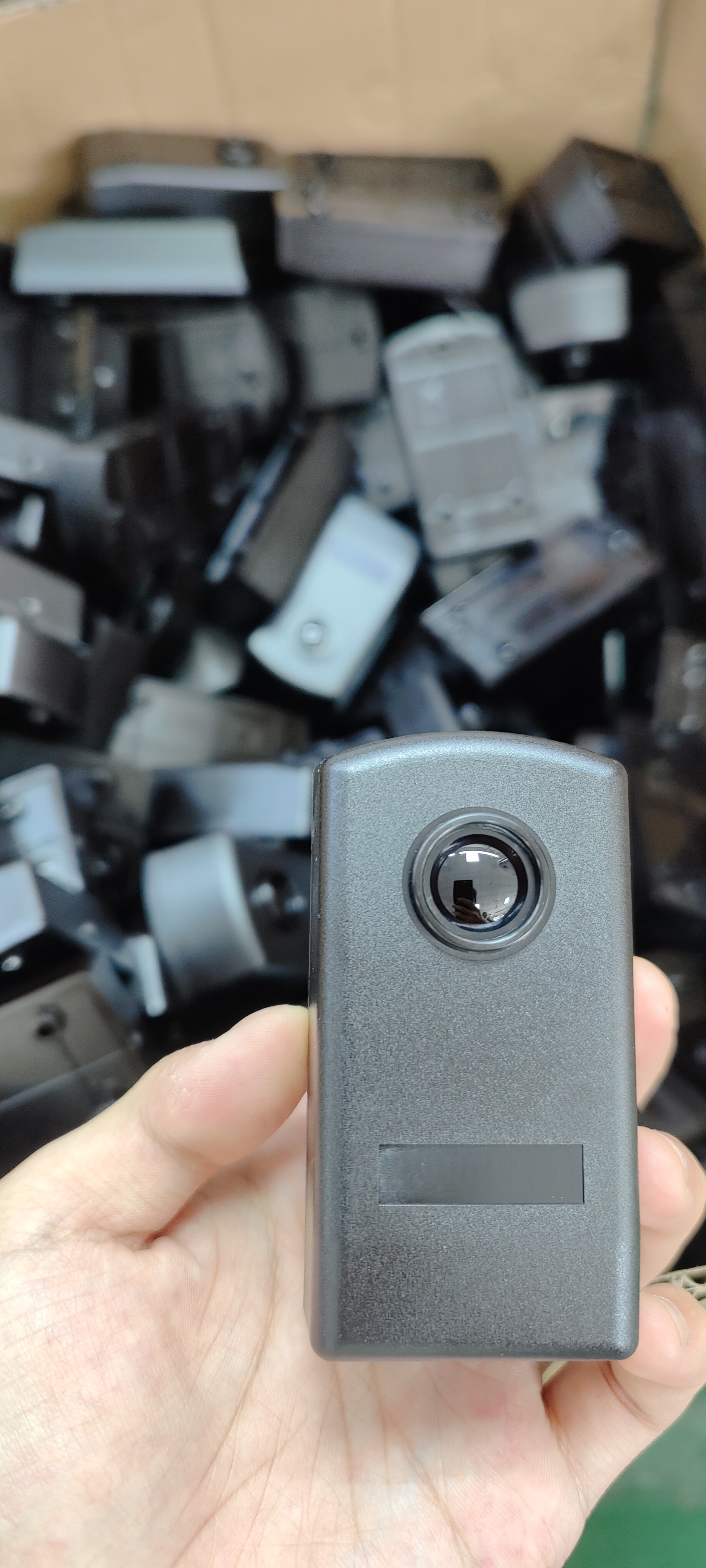

Product Images
Connection Details of JUTAI IR-20
JUTAI Photocell Beam Sensors Ordering Information
Product Summary
The JUTAI IR-20 Infrared Beam Sensor offers unparalleled security and efficiency across various applications. With advanced features, precise detection capabilities, and easy installation, the IR-20 ensures peace of mind and convenience in diverse environments, making it an essential component of modern access control and security systems.
