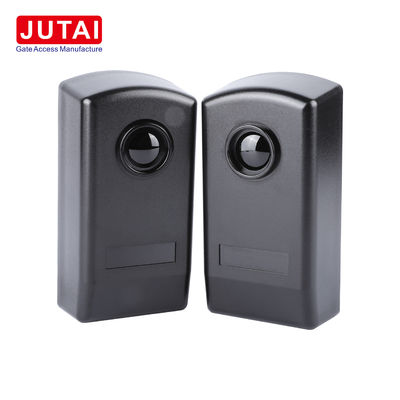

JUTAI 30m Range IP65 Waterproof Wired Infrared Beam Sensor for Gate Safety
Product Details
| IP Rating | IP65 | HS Code | 8531901000 |
|---|---|---|---|
| Package Size | 12.00cm * 11.70cm * 4.30cm | Package Gross Weight | 0.150kg |
| Detection Type | Photon Detector | Type | Wired |
| Highlight | jutai infrared gate beam,jutai infrared gate safety beams,gate safety infrared gate beam |
||
Product Description
JUTAI Automatic Gate Photocell Infrared Gate Safety Beams With 30m Range
Product Overview
JUTAI Automatic Gate Photocell Infrared Photocell Beam Wired Sensor With 30m Range enhances security and efficiency with advanced infrared beam technology.
Key Features
- Extensive Detection Range: Up to 30 meters detection distance for broad coverage in outdoor conditions
- Enhanced Sensitivity: Accurate detection of minute objects and subtle movements
- Rapid Response Time: Lightning-fast detection and reaction to potential threats
- Resilient to Interference: Withstands environmental light interference including sunlight and vehicle lights
- User-Friendly Installation: Easy setup and alignment with simplified installation procedures
Applications
- Seamless Access Control: Automatic doors and access control systems for people and vehicles
- Robust Security Measures: Perimeter, window, and door security protocols
- Industrial Optimization: Production line object position and movement detection
- Efficient Parking Management: Vehicle entry and exit management in parking lots
Technical Specifications
| Feature | Specification |
|---|---|
| Power Supply | 12-24VAC/VDC |
| Max. Range | 20 Meters |
| Operating Temperature | -10 to +60°C |
| Max. TX Working Current | 25mA |
| Max. RX Working Current | 35mA |
| Max. Relay Contact | 500mA at 48VAC/VDC |
| IP Rating | IP65 with rubber |
Installation Guide
Step-by-Step Installation Process
- Access the Interior: Gently lift the front panel to reveal interior components
- Cable Insertion and Base Fixation: Insert cables into designated slots and securely fix base to wall
- Mounting Options: Use appropriate mounting hardware for wall or metal surfaces
- Make Connections: Connect cables and power with 12-24V DC/AC
- Ensure Proper Positioning: Verify alignment and check red LED indicator status
- Cover with Front Panel: Replace front panel securely
- Test System: Interrupt infrared beam to verify relay response
- Secure Front Panel: Fasten front panel with provided screws
Installation Guidelines
- Choose obstruction-free location with optimal coverage
- Mount at appropriate height and angle for maximum detection range
- Follow wiring diagram for proper connections
- Ensure stable power supply within specified voltage range
- Align infrared lamps facing each other
- Test functionality and fine-tune sensitivity as needed
- Secure installation with provided mounting hardware
Advantages and Features
- Seamless integration with various door control systems
- Flexible mounting solutions including door edge integration
- Reliable safety measures for automatic doors and gates
- Versatile application across diverse door types and industrial environments
- Precision detection of individuals and objects for accident prevention
- Efficient performance with low power consumption
- Durability in harsh conditions with IP67 waterproof rating
Product Line Information
JUTAI offers a comprehensive range of infrared product groups including 20 meters wired models, 30 meters wireless models, 7 meters reflected infrared sensors, and Curtain Photocell groups.
Conclusion
The JUTAI IR-20 Infrared Beam Sensor delivers unparalleled performance in security and efficiency across various applications. With advanced features, precise detection capabilities, and user-friendly installation, it serves as an indispensable component of modern access control and security systems.
