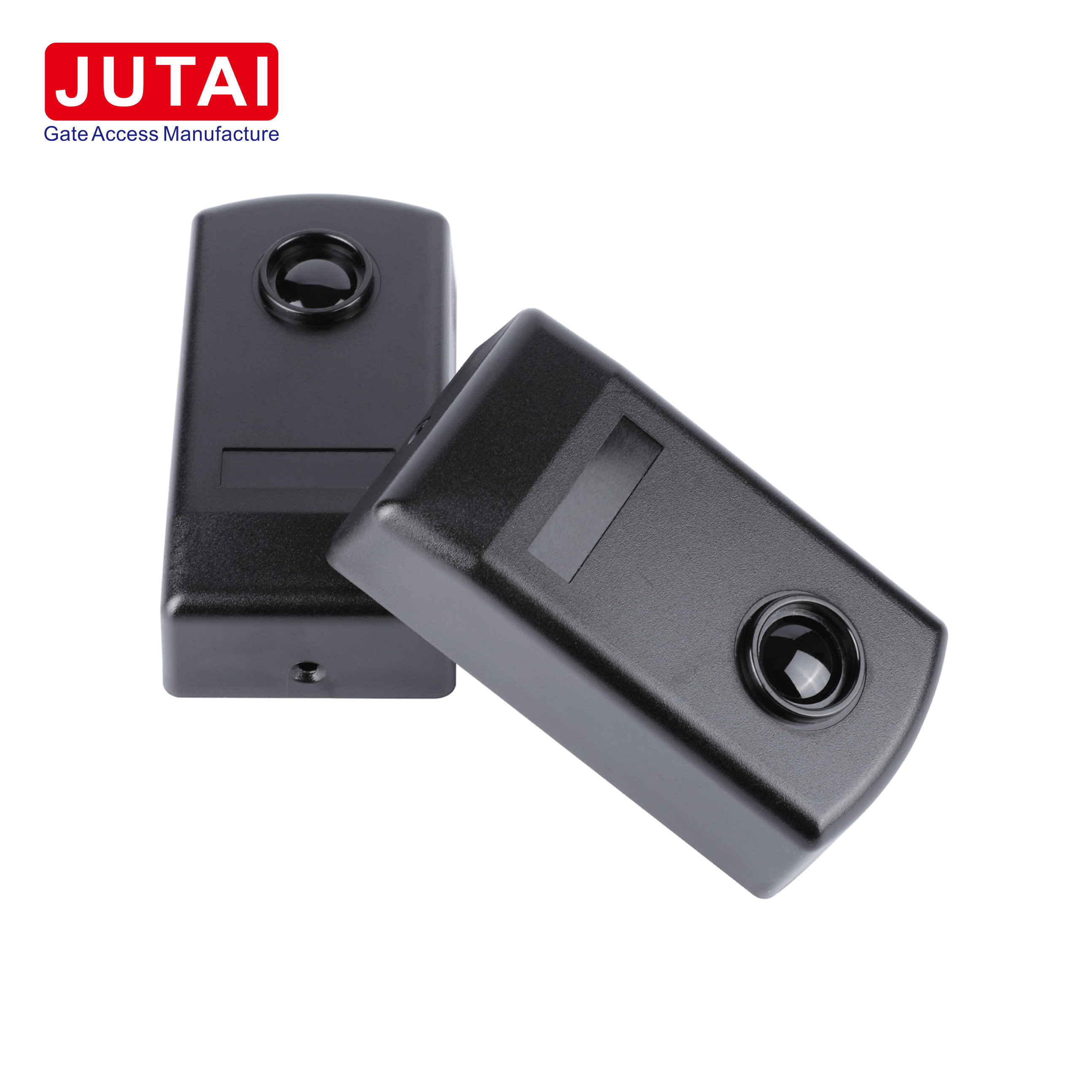

DC12V/24V Home Surveillance Infrared Beam Motion Detector CE

DC12V/24V Home surveillance Outdoor active Photocell Beam Sensor Infrared Detector

Enhancing Security and Efficiency with JUTAI IR-20 Infrared Beam Sensor

Key Features:

1. Extensive Detection Range: With a remarkable reach of up to 30 meters, the IR-20 ensures comprehensive coverage, even in challenging outdoor environments.

2. Enhanced Sensitivity: Boasting high sensitivity, the IR-20 detects even the slightest movements or objects, bolstering security measures.

3. Rapid Response Time: Featuring lightning-fast response times, the IR-20 swiftly identifies potential threats, enabling prompt action.

4. Resilient to Interference: Designed to withstand environmental light interference, such as sunlight or vehicle lights, the IR-20 maintains consistent performance in any condition.

5. User-Friendly Installation: Engineered for easy setup and alignment, the IR-20 simplifies installation procedures, reducing downtime and streamlining maintenance tasks.

Applications:

1. Seamless Access Control: Perfect for automatic doors and access control systems, the IR-20 facilitates smooth passage for people or vehicles, enhancing security and convenience.

2. Robust Security Measures: In security applications, the IR-20 effectively detects unauthorized entry, fortifying perimeter, window, and door security protocols.

3. Industrial Optimization: In industrial settings, the IR-20 optimizes production lines by accurately detecting object positions and movements, improving operational efficiency.

4. Efficient Parking Management: Deployed in parking lots, the IR-20 efficiently manages vehicle entry and exit, ensuring smooth traffic flow and effective utilization of parking spaces.

Installation Instructions:

1. Convenient Access: Open the front panel of the photocell to access internal components easily.

2. Secure Fixation: Insert cables into designated slots and firmly fix the base to the wall, ensuring stability during operation.

3. Versatile Mounting Options: Choose suitable mounting methods for wall or metal surfaces, ensuring secure placement.

4. Proper Connection: Connect cables and power the photocell within the specified voltage range for optimal performance.

5. Accurate Alignment: Align the photocell correctly to maintain proper functionality, indicated by the status of the red LED.

6. Functional Testing: Verify relay response by interrupting the infrared beam, ensuring reliable operation.

7. Secure Closure: Replace the front panel and secure it with provided screws to maintain integrity and functionality.

Advantages and Features:

1. Seamless Integration: The IR-20 seamlessly integrates with various door control systems, offering compatibility and ease of use.

2. Flexible Mounting Solutions: Its adaptable mounting options, including door edge integration, simplify installation procedures for enhanced convenience.

3. Reliable Safety Measures: With robust safety features, the IR-20 ensures reliable protection for automatic doors and gates, prioritizing user safety.

4. Versatile Application Scope: Suitable for diverse door types and industrial environments, the IR-20 offers versatility in usage and deployment.

5. Precision Detection Capabilities: Accurate detection of individuals or objects passing through ensures accident prevention and heightened security measures.

6. Efficient Performance: The IR-20 operates with low power consumption and offers versatile output options, ensuring efficient and reliable performance.

7. Durability in Harsh Conditions: Its IP67 waterproof rating enables the IR-20 to withstand challenging environmental conditions, ensuring longevity and durability.

In conclusion, the JUTAI IR-20 Infrared Beam Sensor stands as a pinnacle of security and efficiency across various applications. With its advanced features, precise detection capabilities, and user-friendly installation process, the IR-20 delivers unparalleled performance in ensuring safety and convenience in diverse environments, solidifying its role as an indispensable component of modern access control and security systems.




Technical parameter

Connection Details of JUTAI IR-20

Installing the IR-20M Photocell: A Step-by-Step Guide

1. Access the Interior:

• 1.1 Gently lift the front panel of the photocell to reveal its interior components, allowing for easy access during installation.

2. Cable Insertion and Base Fixation:

• 2.1 Carefully insert the cables into their designated housing slots within the photocell.
• 2.2 Securely fix the base of the photocell to the wall using appropriate mounting hardware, ensuring stability and reliability.

3. Mounting on Wall or Metal Surface:

• 3.1 If mounting on a wall, drill three 5 ø holes and insert suitable screw anchors to firmly anchor the photocell.
• 3.2 For mounting on metal surfaces, drill three 3 ø holes and use self-tapping screws to ensure a secure attachment.

4. Make Connections:

• 4.1 Connect the necessary cables to the photocell, ensuring proper insulation and secure connections.
• 4.2 Power the photocell with a stable voltage ranging between 12 and 24V DC/AC to enable its operation.

5. Ensure Proper Positioning:

• 5.1 Verify the correct positioning, alignment, and connection of the photocell components to optimize performance.
• 5.2 Confirm that the red LED indicator on the receiver remains off when the photocell is correctly configured.
• 5.3 The red LED will illuminate if the infrared beam is interrupted, indicating potential obstructions.

6. Cover with Front Panel:

• 6.1 Once all connections are verified, carefully cover the photocell with the front panel.
• 6.2 Insert the front panel firmly until it stops, ensuring a snug fit, and then securely close it to protect the internal components.

7. Test System:

• 7.1 Conduct a thorough system test by intentionally interrupting the infrared beam multiple times.
• 7.2 Observe and confirm proper relay response to validate the functionality of the photocell.

8. Secure Front Panel:

• 8.1 Finally, securely fasten the front panel in place using the provided screws, ensuring it remains securely attached to the photocell.

By meticulously following these step-by-step instructions, you can confidently install and ensure the proper functioning of the IR-20M photocell, thereby enhancing security and efficiency in your application.

Installation Guidelines for JUTAI IR-20 20 Meters Wired Infrared Photocell

1. Prepare Installation Site:

   • Choose a suitable location ensuring optimal coverage for detection.
   • Ensure the area is free from obstruction to prevent interference.

2. Mounting Position:

   • Mount the infrared photocell at an appropriate height and angle for maximum coverage and detection range.
   • Use a stable and secure mounting surface to prevent movement or misalignment.

3. Wiring Connections:

   • Refer to the provided wiring diagram or user manual for proper connection of wires.
   • Ensure all connections are securely insulated to prevent electrical issues.

4. Power Supply:

   • Provide a stable power supply within the specified voltage range (typically 12-24V DC).
   • Double-check polarity and voltage to avoid damaging the unit during installation.

5. Alignment and Testing:

   • Align the infrared lamps to face each other ensuring proper detection coverage.
   • Test the photocell by obstructing the infrared beam and verify relay response for functionality.

6. Fine-Tuning:

   • Adjust alignment and sensitivity settings as necessary to optimize performance.
   • Minimize false alarms or missed detections by fine-tuning the photocell.

7. Secure Installation:

   • After confirming proper operation, securely fasten the photocell using provided mounting hardware.
   • Ensure all connections are tight and the unit is protected from environmental factors.

By meticulously following these installation guidelines, you can ensure top-tier reliability and performance with the JUTAI IR-20 20 meters wired infrared photocell, providing unparalleled security and convenience for your needs.
