IP65 Waterproof Wired Infrared Beam Sensor with 30m Detection Range for Gate Safety
Product Details
| IP Rating | IP65 | HS Code | 8531901000 |
|---|---|---|---|
| Package Size | 12.00cm * 11.70cm * 4.30cm | Package Gross Weight | 0.150kg |
| Detection Type | Photon Detector | Type | Wired |
| Highlight | IP65 waterproof door sentry infrared safety beam,gates door sentry infrared safety beam,IP65 waterproof ir beams for gates |
||
Product Description
IP65 Waterproof Door Sentry Infrared Safety Beams For Gates
Product Overview
High Speed Door Sliding Swing Gate Garage Door Photocell Outdoor Infrared Beam Sensor. The JUTAI IR-20 Infrared Beam Sensor enhances security and efficiency with advanced detection technology.
Key Features
- Extensive Detection Range: Covers up to 30 meters for comprehensive outdoor coverage
- Enhanced Sensitivity: Detects subtle movements or objects for bolstered security
- Rapid Response Time: Swiftly identifies potential threats for prompt action
- Resilient to Interference: Maintains consistent performance despite environmental light interference
- User-Friendly Installation: Simplifies setup and alignment, reducing downtime
Applications
- Seamless Access Control: Facilitates smooth passage for people or vehicles
- Robust Security Measures: Detects unauthorized entry for perimeter, window, and door security
- Industrial Optimization: Optimizes production lines by detecting object positions and movements
- Efficient Parking Management: Manages vehicle entry and exit for smooth traffic flow
Technical Specifications
| Feature | Specification |
|---|---|
| Power Supply | 12-24VAC/VDC |
| Max. Range | 20 Meters |
| Operating Temperature | -10 to +60°C |
| Max. TX Working Current | 25mA |
| Max. RX Working Current | 35mA |
| Max. Relay Contact | 500mA at 48VAC/VDC |
| IP Rating | IP65 with rubber |
Installation Guide
- Access the Interior: Gently lift the front panel to reveal interior components
- Cable Insertion and Base Fixation: Insert cables into designated slots and securely fix base to wall
- Mounting Options: Choose suitable mounting methods for wall or metal surfaces
- Make Connections: Connect cables and power within specified voltage range (12-24V DC/AC)
- Ensure Proper Positioning: Verify correct alignment and connection of components
- Cover with Front Panel: Replace front panel and secure with provided screws
- Test System: Conduct thorough testing by interrupting infrared beam
- Secure Front Panel: Fasten front panel securely using provided screws
Product Advantages
- Seamless Integration: Compatible with various door control systems
- Flexible Mounting Solutions: Adaptable installation options
- Reliable Safety Measures: Ensures protection for automatic doors and gates
- Versatile Application Scope: Suitable for diverse door types and industrial environments
- Precision Detection: Accurate detection prevents accidents and enhances security
- Efficient Performance: Low power consumption with versatile output options
- Durability: IP67 waterproof rating withstands challenging environmental conditions

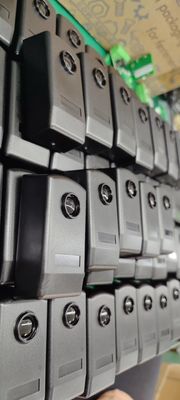

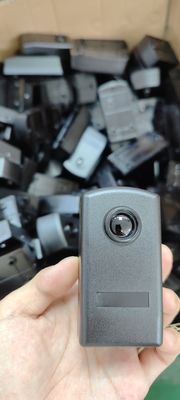

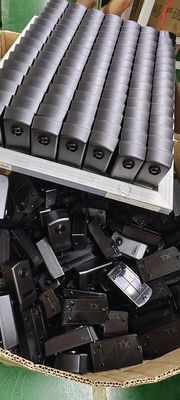

Product Images
Ordering Information
After several years of development, we offer a comprehensive range of infrared products including 20 meters wired models, 30 meters wireless models, 7 meters reflected infrared sensors, and Curtain Photocell groups. Contact us for specific ordering information.
Conclusion
The JUTAI IR-20 Infrared Beam Sensor delivers unparalleled performance, ensuring safety and convenience in various environments. Its advanced features, precise detection capabilities, and user-friendly installation make it indispensable for modern access control and security systems.
