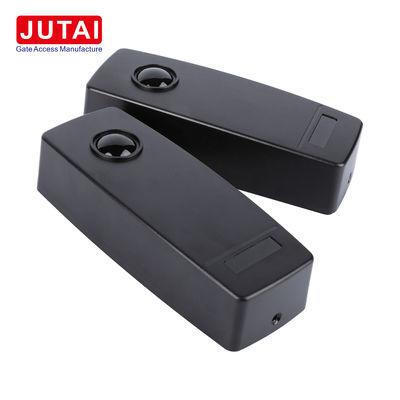

30m Battery-Powered IP65 Waterproof Infrared Sensor Photocell for Sliding Swing Gates
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | single beam photocell safety beams,single beam wireless battery photocell sensors,12v dc photocell safety beams |
||
Product Description
Outdoor Battery Single Beam Infrared Sensor Photocell For Sliding Swing Gates
Product Overview
Introducing the Battery-Powered Wireless Infrared Beam Sensor - an innovative solution that operates wirelessly for unparalleled installation convenience. Powered by batteries with extended lifespan, this sensor minimizes maintenance requirements while maximizing cost-effectiveness.
With efficient operation ensuring reliable performance and low power consumption, this wireless design can be effortlessly deployed in diverse environments without wiring constraints, providing exceptional flexibility and adaptability for security monitoring applications.
Key Features
- Long Battery Life: Ultra-low power consumption enables battery life exceeding two years
- Wide Operating Range: 30-meter range suitable for various entrance gates and outdoor use
- Weather Resistance: IP65 waterproof design resistant to sunlight, dust, and harsh conditions
- Audible Feedback: Easy setup with alerts for low battery levels
- Efficient Operation: Maintains low power consumption for enhanced efficiency
- Security Compatibility: Works with Intruder-detection Alarms for perimeter security
- Easy Installation: Built-in laser beam alignment system for quick setup
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only use alkaline batteries; do not use rechargeable batteries |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |

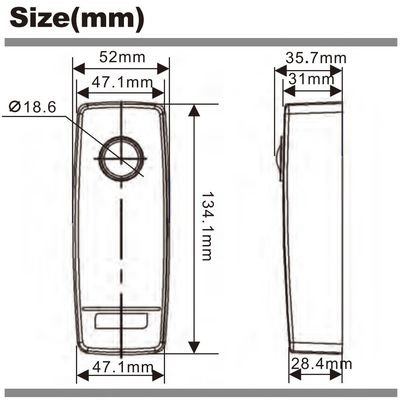

| Size | 51(L)*135(W)* 32(H)mm |

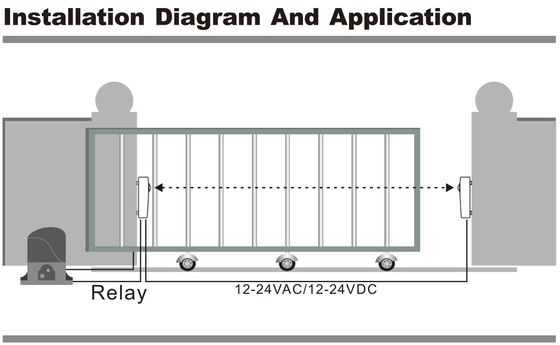

Applications
Ideal for sliding and swing gates, perimeter security systems, and outdoor access control applications where reliable wireless operation is required.
