Outdoor Battery Single Beam Infrared Sensor Photocell For Sliding Swing Gates
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | single beam photocell safety beams,single beam wireless battery photocell sensors,12v dc photocell safety beams |
||
Product Description

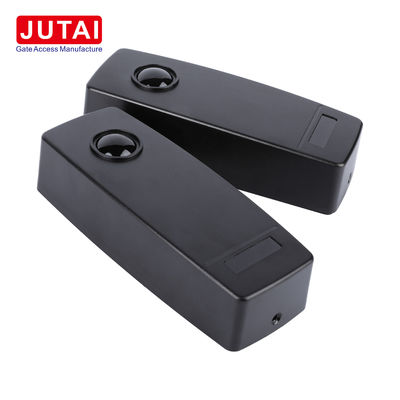

30m Outdoor Battery Single Beam Infrared Sensor Photocell for Sliding Swing Gates
Introducing the Battery-Powered Wireless Infrared Beam Sensor:
This innovative sensor operates wirelessly, offering unparalleled convenience in installation. Powered by batteries, it boasts an extended lifespan, minimizing maintenance requirements and maximizing cost-effectiveness. Its efficient operation ensures reliable performance while maintaining low power consumption, contributing to energy savings. With its wireless design, it can be effortlessly deployed in diverse environments without the constraints of wiring limitations, providing flexibility and adaptability. In summary, the Battery-Powered Wireless Infrared Beam Sensor delivers reliable security monitoring solutions with its combination of convenience, cost-effectiveness, and efficiency.
Product Name: Wireless Battery-Powered Gate Photoelectric Infrared Sensor with 30m Range
Key Features:
- Long Battery Life: Ultra-low power consumption batteries enable a battery life of over two years, providing cost and time savings.
- Wide Operating Range: With a 30-meter operating range, suitable for various entrance gates and outdoor use, featuring an IP65 waterproof design resistant to sunlight and dust.
- Reliable Performance: Fully dust-resistant and weather-resistant enclosure ensures reliable performance even in harsh conditions.
- Audible Feedback: Provides audible feedback for easy setup and alerts for low battery levels.
- Efficient Operation: Maintains low power consumption, enhancing overall efficiency.
- Perimeter Security Compatibility: Compatible with Intruder-detection Alarms, enhancing perimeter security.
- Easy Installation: Swift and simple installation with the built-in laser beam alignment system.
Product Description: The Wireless Battery-Powered Gate Transmitter ensures reliable gate operation with its ultra-low power consumption and two-year battery life. Its 30-meter operating range and IP65 waterproof design make it perfect for outdoor use, resistant to sunlight and dust. The weather-resistant enclosure guarantees dependable performance even in harsh conditions. Additionally, it includes audible feedback for easy setup, low power consumption, compatibility with Intruder-detection Alarms, and a built-in laser beam alignment system for quick installation. Experience seamless gate operation with the Wireless Battery-Powered Gate Transmitter, offering long-lasting battery life, a wide operating range, and enhanced reliability for outdoor use.
Flexible Business Model: Dedicated to supporting customers in developing their own brand and facilitating local marketing efforts, we not only offer wireless photocell sensors but also aim to expand our product range to include high-quality solutions for gate automation systems and villa security. By assisting customers in promoting their brands locally, we aim to foster mutually beneficial partnerships and achieve shared success, fostering growth together.
|
Power Supply Transmitter |
2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product |
|
Receiver |
12 - 24V AC 12 - 30V DC |
|
Receive Power Consumption |
30mA @ 12V DC |
|
Transmitter Battery Life |
Minimum 2 years |
|
Battery Low Indication |
Audible Beep |
|
Specified Operating Distance |
30m |
|
Alignment |
Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
|
Output Contact |
Fail-safe, N/C, and N/O, potential-free contact |
|
Output Contact Rating |
3A @ 30V DC Non-inductive |
|
Operating Temperature |
-20°C - +60°C |
|
Operating Humidity |
0 - 90° Non-condensing |
|
Degree of Protection |
IP65 with rubber |
|
Housing Material |
PC(UV) |
|

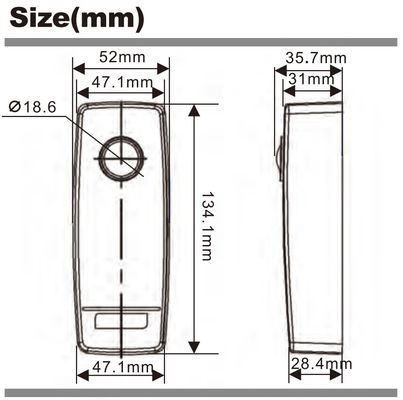

Size |
51(L)*135(W)* 32(H)mm |
