Waterproof Sun Resistant Automatic Infrared Sensor Gate Photocell Safety Beams 30m
Product Details
| Receiver | 12 - 24V AC | Receiver Power Consumption | 30mA @ 12V DC |
|---|---|---|---|
| Transmitter Battery Life | Minimum 2 Years | Specified Operating Distance | 30m |
| Output Contact | Fail-Safe, N/C And N/O, Potential Free Contact | Operating Temperature | -20°c - +60°c |
| Size | 51(L)*135(W)* 32(H)mm | Housing Material | PC(UV) |
| Highlight | Sun Resistant Automatic Infrared Senso,Gate Photocell Safety Beams,Photocell Safety Beams 30m |
||
Product Description

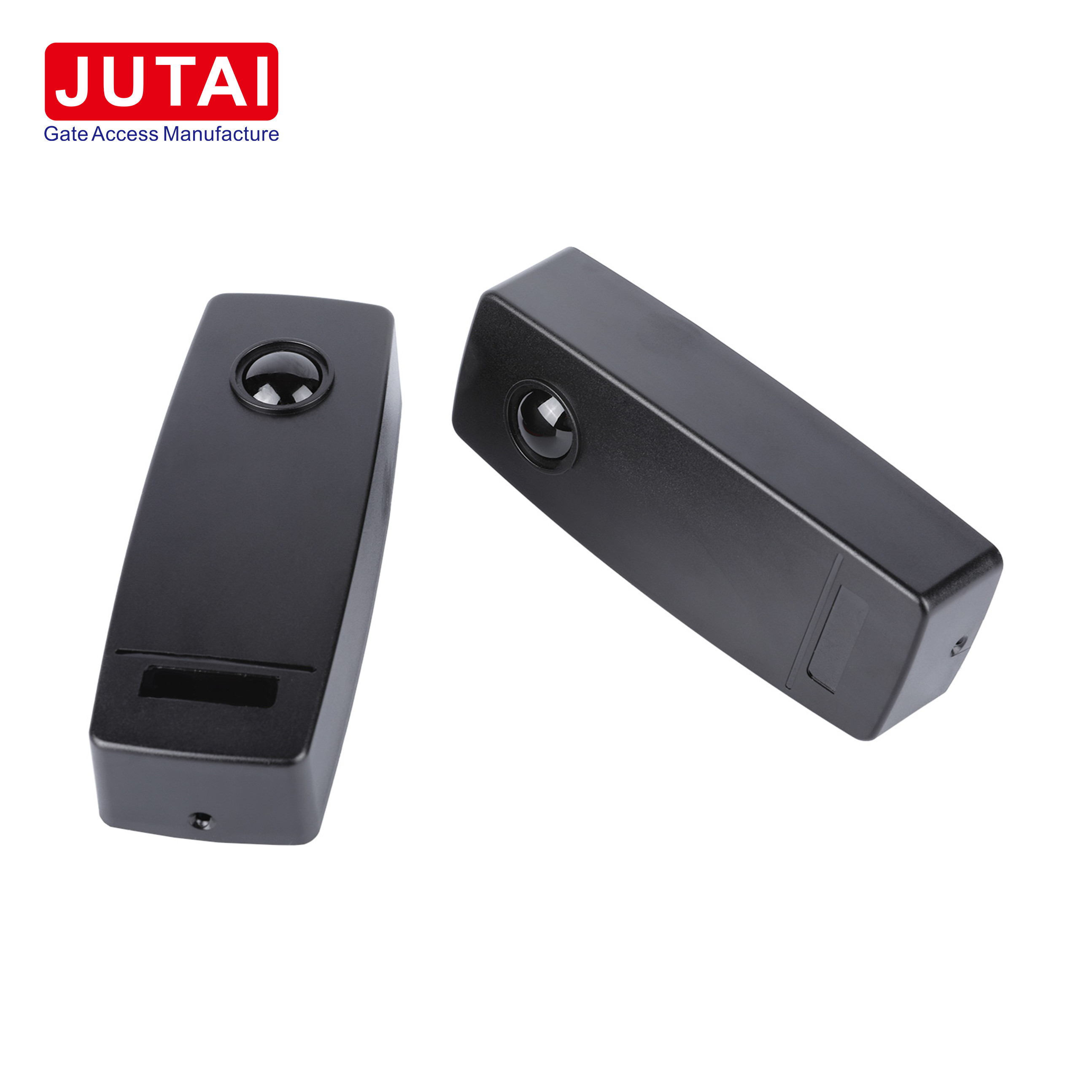

Waterproof Sun Resistant Automatic Infrared Sensor Gate Photocell Safety Beams 30m
Product Overview
Introducing the Battery-Powered Wireless Infrared Beam Sensor: This innovative sensor operates wirelessly, offering unparalleled convenience in installation. Powered by batteries, it boasts an extended lifespan, minimizing maintenance requirements and maximizing cost-effectiveness.
Its efficient operation ensures reliable performance while maintaining low power consumption, contributing to energy savings. With its wireless design, it can be effortlessly deployed in diverse environments without the constraints of wiring limitations, providing flexibility and adaptability.
Key Features
- Long Battery Life: Ultra-low power consumption batteries enable a battery life of over two years
- Wide Operating Range: 30-meter operating range with IP65 waterproof design resistant to sunlight and dust
- Reliable Performance: Fully dust-resistant and weather-resistant enclosure for harsh conditions
- Audible Feedback: Provides audible feedback for easy setup and low battery alerts
- Efficient Operation: Maintains low power consumption for enhanced efficiency
- Perimeter Security Compatibility: Compatible with Intruder-detection Alarms
- Easy Installation: Swift installation with built-in laser beam alignment system
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) |
| Receiver | 12 - 24V AC 12 - 30V DC |
| Receive Power Consumption | 30mA @ 12V DC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low Indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic - 1m² @ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C, and N/O, potential-free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP65 with rubber |
| Housing Material | PC(UV) |
| Size | 51(L)*135(W)* 32(H)mm |
Applications
- Boom barrier gate safety application
- Sliding gate systems
- Gate opener systems
- Security Alarms and Warning systems
- Home Security
- Gate operator safety accessories
