IP65 Photocell Sensor 30m Distance In Sunlight Suitable For UAE Region

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	IR-20
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

IP Rating	IP65	HS Code	8531901000
Package Size	12.00cm * 11.70cm * 4.30cm	Package Gross Weight	0.150kg
Detection Type	Photon Detector	Type	Wired
Highlight	30m Distance Photocell Sensor , UAE Region Sunlight Photocell Sensor , IP65 Photocell Sensor

Leave a Message

Product Description

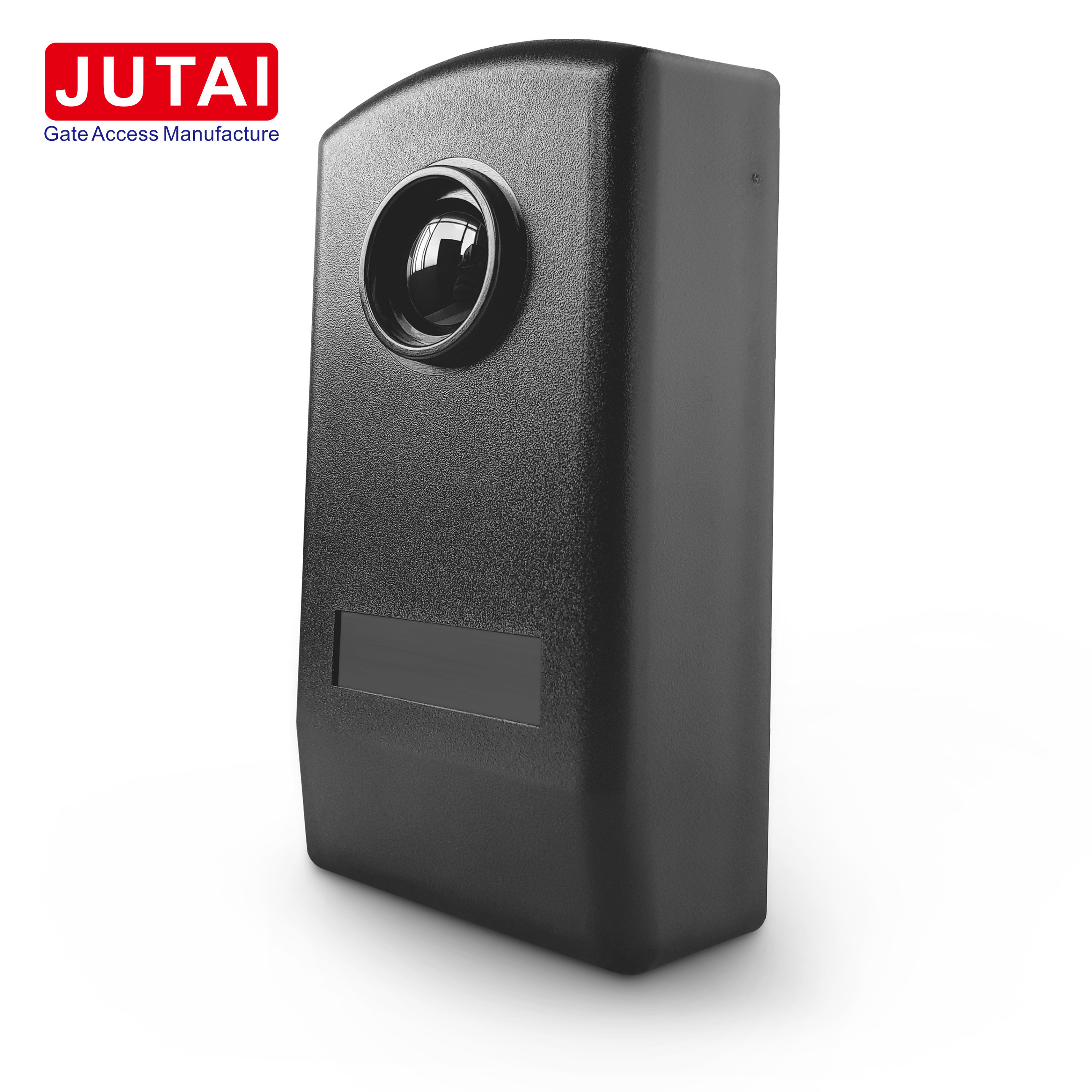

JUTAI IR - 20 Industrial Infrared Photocell Sensor for Outdoor Use with 30m Long Distance In Sunlight

Enhance the security and convenience of your premises with the meticulously crafted JUTAI Automatic Door Sensor Infrared Photocell. This sensor is designed to swiftly detect any disruptions in the infrared beam and promptly initiate a relay switch signal.

Unique Features:

Solitary Beam Detectors: Commonly known as single beam sensors, these are widely used in automated sliding doors, shutter doors, garage doors, windows, and more.
Integrated Transmitter and Receiver: Each unit is equipped with a transmitter and receiver, along with an integrated amplifier. It emits a narrow infrared beam to effectively counter external light interference.
Reliable Detection Range: Even when installed at a relatively low height (20 - 40cm above the ground), these sensors offer a dependable detection range of 2 - 30 meters.
IR - 20 Self - Detection Functionality: Specifically designed for sliding doors, the IR - 20 sensor features self - detection capabilities. When the self - detection beam is interrupted, the door stops closing and quickly retracts to its full extent. Subsequently, the door resumes movement until the detection beam is restored. Once the door is completely closed, the detection beam is deactivated.

Functionality:

Position each detector pair at opposite ends to establish an infrared zone between them. Any movement detected within this zone immediately triggers an alarm signal that is sent to the security alarm host (not included). It is ideally suited for seamless integration into security systems in educational institutions, commercial buildings, medical facilities, residential areas, and more.

Consistent Performance:

Regardless of challenging weather conditions such as rain or dust storms, the detection range remains consistently reliable. The compact and IP65 waterproof design of the JUTAI IR - 20 Infrared Photo Sensor offers excellent resistance to ultraviolet radiation and abrasive particles, ensuring durability in outdoor environments.

Comprehensive Support:

Each package includes an English Usage Manual with illustrated diagrams, providing detailed guidance for easy installation and configuration.

IP65 Photocell Sensor 30m Distance In Sunlight Suitable For UAE Region 0

IP65 Photocell Sensor 30m Distance In Sunlight Suitable For UAE Region 1

IP65 Photocell Sensor 30m Distance In Sunlight Suitable For UAE Region 3

IP65 Photocell Sensor 30m Distance In Sunlight Suitable For UAE Region 4

Technical parameter

Feature	Specification
Power Supply	12-24VAC/VDC
Max. Range	20 Meters
Operating Temperature	-10 to +60°C
Max. TX Working Current	25mA
Max. RX Working Current	35mA
Max. Relay Contact	500mA at 48VAC/VDC
IP Rating	IP65 with rubber

Features and Specifications

High Detection Range:

30 Meters Under Sunlight: The IR - 20 can detect objects at distances up to 30 meters even in direct sunlight, making it ideal for outdoor use.

Durable Design:

IP65 Waterproof Rating: The sensor is protected against dust and water jets, ensuring durability and reliability in harsh weather conditions.
Dual Component Structure: The IR - 20 consists of an emitter and a receiver, enabling precise detection and minimizing false alarms.

Wired Connection:
The sensor operates through a wired connection, providing stable and uninterrupted communication.

Functionality and Applications

Precise Object Detection:
The IR - 20 Infrared Sensor accurately detects the presence and movement of objects between the emitter and receiver, which is crucial for security systems, automatic door controls, and barrier systems.

Versatile Application Range:

Security Systems: The sensor can be integrated into security setups to detect intrusions and unauthorized access.
Automatic Doors and Gates: It provides reliable activation for automatic doors, ensuring smooth and efficient entry and exit.
Barrier Control: The IR - 20 can be used to manage barriers in parking lots, industrial facilities, and restricted areas.

Advantages

High Reliability:
The IR - 20 offers consistent performance with minimal maintenance, thanks to its robust construction and advanced technology.

Weather Resistance:
With an IP65 rating, the sensor is well - suited for outdoor environments, capable of withstanding exposure to dust and water.

Easy Installation and Integration:
The wired setup ensures straightforward installation and integration with existing systems, making it a convenient choice for various applications.

Cost - Effective Solution:
The sensor's durability and low maintenance requirements make it a cost - effective solution for long - term use in both residential and commercial settings.

Necessity and Impact

The JUTAI IR - 20 Infrared Sensor is essential for enhancing safety, security, and automation in various environments. Its ability to operate efficiently in outdoor conditions, coupled with its precise detection capabilities, makes it an invaluable tool in preventing unauthorized access and ensuring the smooth operation of automated systems. Whether for security monitoring, automatic door control, or barrier management, the IR - 20 provides the necessary reliability and accuracy to meet the demands of modern infrastructure.

In summary, the JUTAI IR - 20 Infrared Sensor is a versatile, durable, and highly effective solution for a wide range of applications. Its combination of advanced features, robust design, and ease of integration makes it an ideal choice for enhancing safety and efficiency in both residential and commercial settings.

Installation

Experience top - tier reliability with the JUTAI IR - 20 30 meters wired infrared photocell. Our infrared lamps utilize renowned German brands to ensure an exceptionally stable and dependable detection distance, as well as consistent distance and light resistance. Additionally, our relays feature Japan's Omron brand, guaranteeing compatibility with various door operator brands. By utilizing Surface Mount Technology (SMT) in patch production, we adhere to strict quality standards to ensure the accuracy and consistency of batch production. Trust in the unparalleled quality of our high - quality photo eye for your security and convenience needs.

JUTAI Photocell Beam Sensors Ordering Information
After several years of precipitation and development, we have developed a full range of infrared product groups, ranging from 20 meters wired model, to 30 meters wireless model, 7 meters reflected infrared sensor, and Curtain Photocell groups. For specific information, please refer to our ordering information list.
Gate Opener Manufacturing Infrared Sensor Gate Photocell for Door

IP65 Photocell Sensor 30m Distance In Sunlight Suitable For UAE Region 14
