IRR-7R Reflective Infrared Sensor IP65 Waterproof Anti Sunlight Relay 7m Range
Product Details
| Model NO. | IRR-7R | Material | ABS+PC |
|---|---|---|---|
| Feature | Low Temperature Resistant | IP Rating | IP65 |
| Customized | Customized | Receiver | 12 - 24V AC 12 - 30V DC |
| Operating Temperature | -20 To 60 ℃ | Sensing Range | 6.5-7m |
| Comsuption | ≤11mA | Output Status | No&Nc |
| Specification | 1unit Package 14*9*5.5cm | HS Code | 9031809090 |
| Highlight | 7m Range Reflective Infrared Sensor,Anti Sunlight Reflective Infrared Sensor,IP65 Waterproof Reflective Infrared Sensor |
||
Product Description

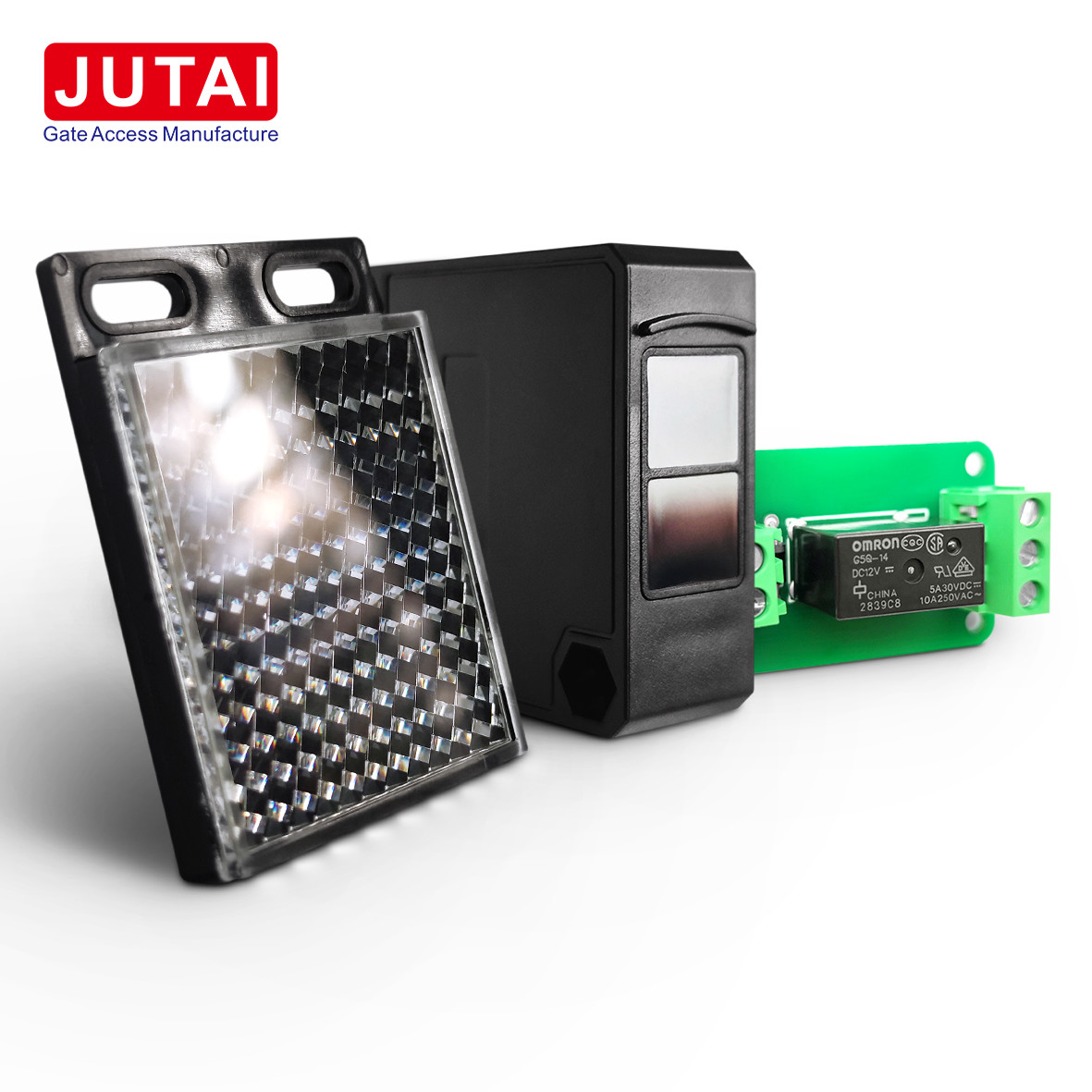

IRR-7R Reflective Infrared Sensor IP65 Waterproof Anti Sunlight Relay 7m Range
Product Overview
The IRR-7R Reflective Infrared Sensor is a highly reliable and efficient safety sensor designed for door safety applications. This sensor utilizes advanced reflective infrared technology, combining the transmitter and receiver into a single unit with a reflective mirror to return the emitted infrared light back to the sensor, ensuring consistent performance.
Key Features
- Reflective Infrared Technology: Integrated emitter and receiver in one compact unit with reflective mirror for obstruction detection
- 7-Meter Detection Range: Stable detection coverage for large door areas
- IP65 Waterproof Rating: Fully sealed construction resistant to dust and water
- Relay Output for Safety Control: Built-in relay triggers immediately when infrared beam is interrupted
- Simple Installation: Single unit with reflector eliminates complex wiring between emitter and receiver
- Versatile Application: Suitable for automatic doors, industrial doors, and barrier systems
Advantages
- Cost-Effective Design: Reduced installation costs and minimal additional wiring requirements
- Quick Response: Immediate reaction when obstructions are detected
- Durability: Robust IP65-rated housing protects against harsh environmental conditions
- Long Detection Range: 7-meter range suitable for most industrial and commercial applications
Technical Specifications
| Sensing Mode | Retro-reflective |
| Sensing Distance | 7 meters |
| Sensing Object | Opaque object, minimum 75mm |
| Standard Target | Reflector |
| Response Time | 53ms |
| Supply Voltage | DC12-24V (10-30V DC), ripple (p-p): 10% max |
| Output Type | NPN output |
| Output Status | Normally Open (N.O.) |
| Consumption | ≤20mA |
| Load Current | 200mA |
| Voltage Drop | ≤1.8V (200mA) |
| LED Display | Red LED |
| Sensitivity Adjustment | Non-adjustable |
| Circuit Protection | Short circuit protection, reversed polarity protection, overload protection |
| Operating Temperature | -10°C to +55°C |
| Insulation Resistance | ≥50MΩ |
| Anti-impact | 10-55Hz (amplitude 1.5mm), X,Y,Z direction, each 10 times |
| Protection | IP67 |
| Connection | Cable: ø4.8mm, 2M |
| Housing Material | PBT |
| Accessories | Mounting bracket: 1pcs; Reflector: 1pcs |
| Product Size | 50*50*18mm |
Applications
- Automatic Doors: Sliding, swinging, and revolving doors in commercial buildings
- Industrial Doors: Warehouses, loading docks, and manufacturing facilities
- Barrier Systems: Safety barriers and access control systems
Product Summary
The IRR-7R Reflective Infrared Sensor provides a reliable and efficient solution for door safety applications. With simple installation, wide detection range, and robust design, it offers a cost-effective and dependable way to ensure the safety of automatic and industrial doors in both commercial and industrial settings.
