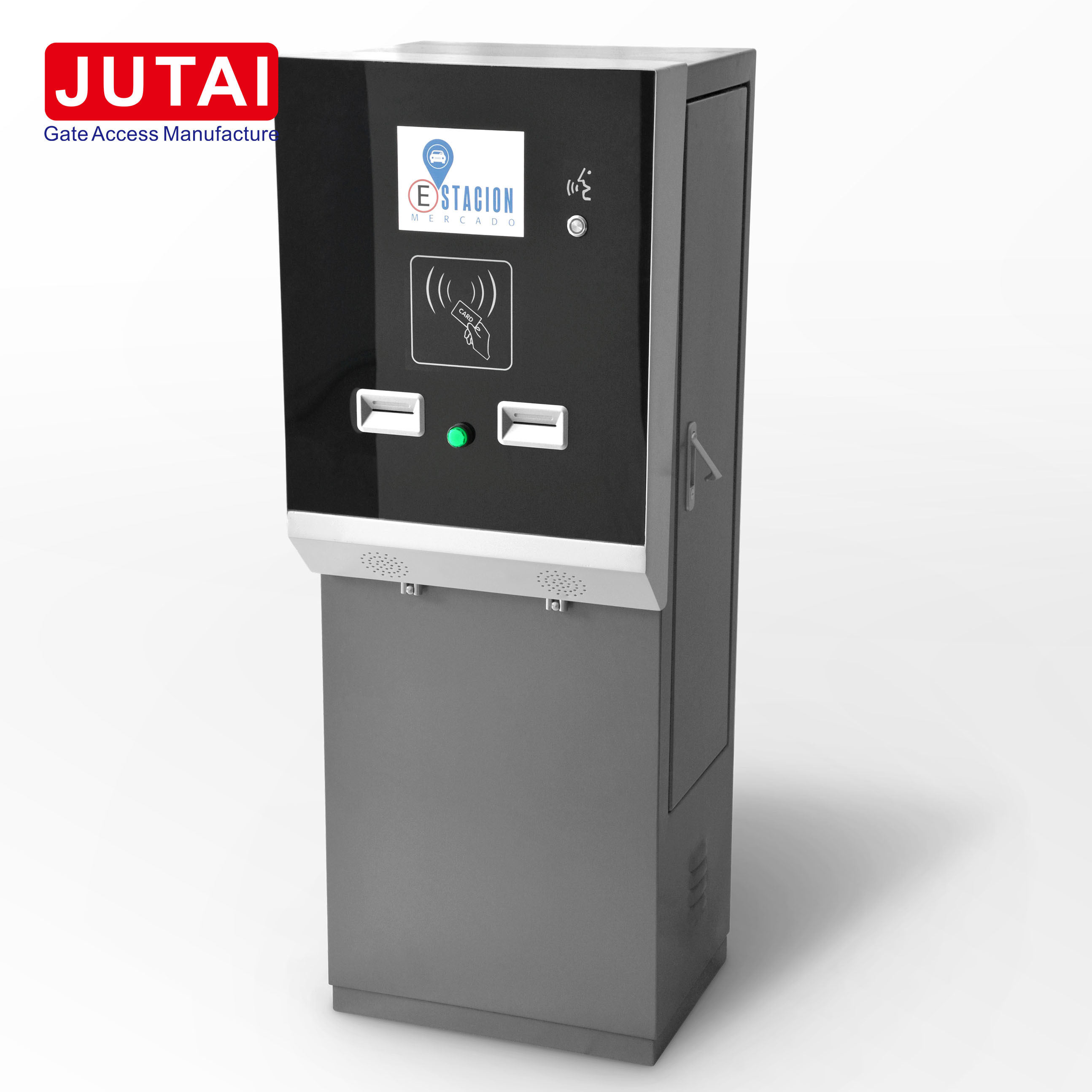

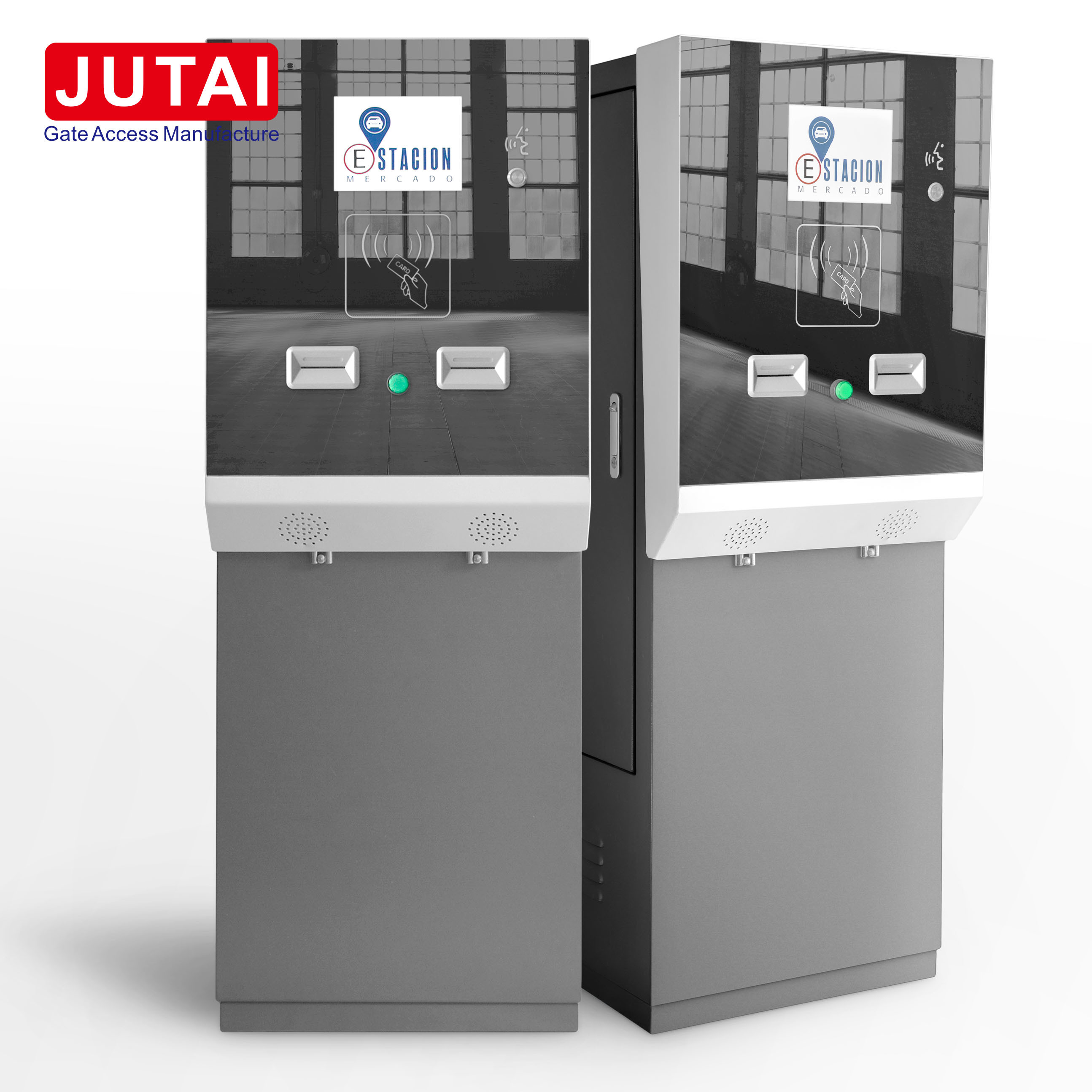

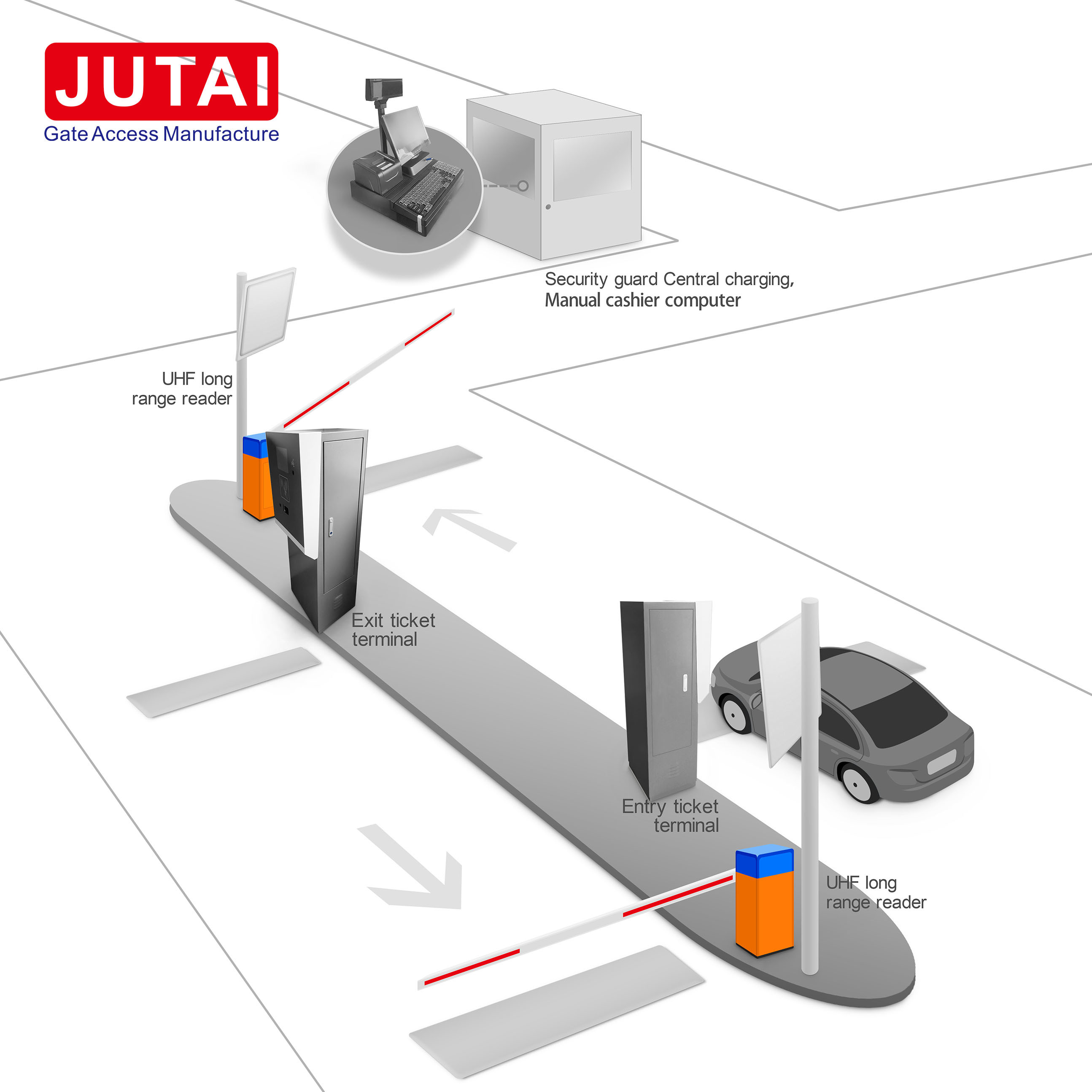

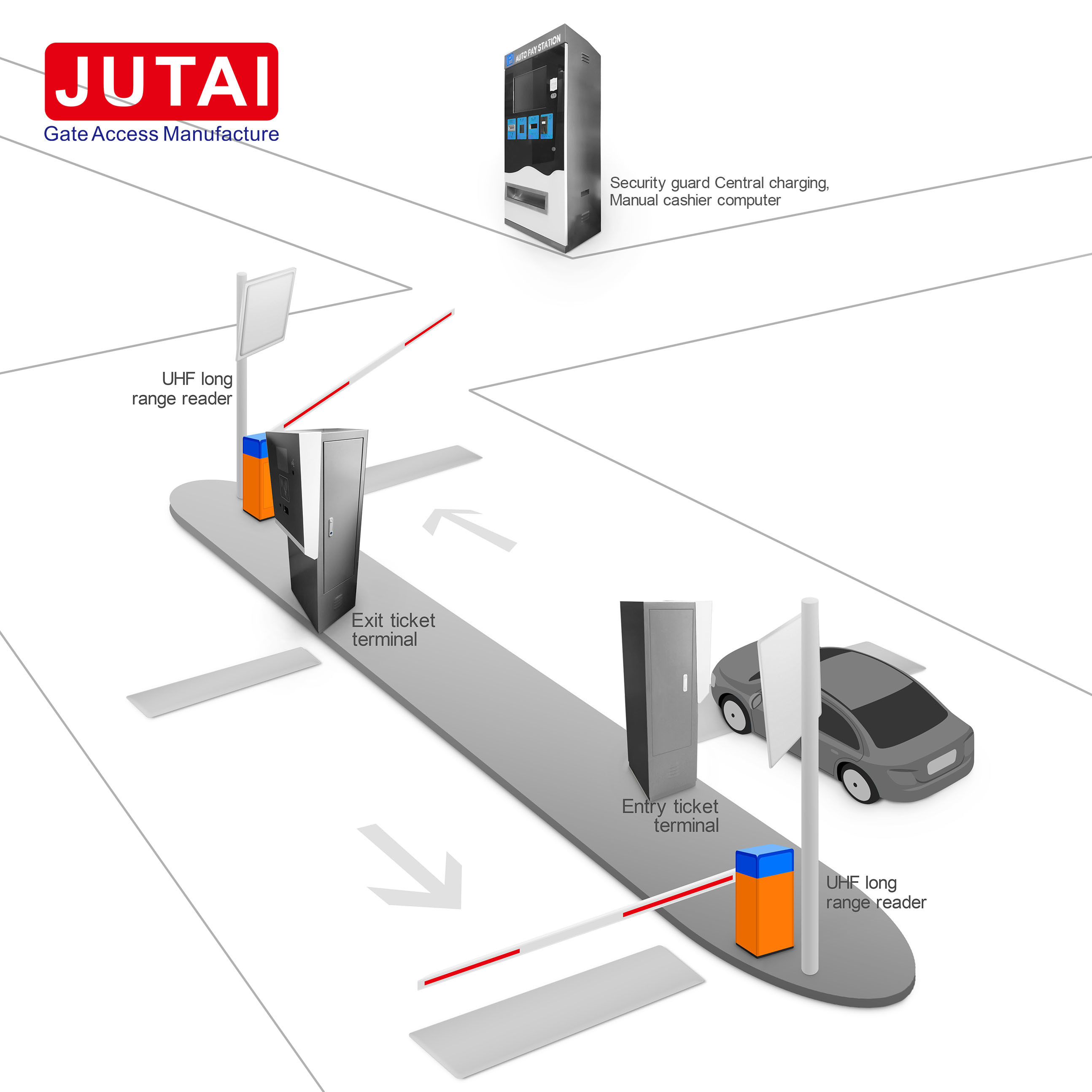

Parking Lot Entrance/Exit Ticket Machine - Product Description

I. Product Overview

II. Key Features

A. User-Friendly Design

• The ticket box features a unique housing design with front and two side panels that can be opened, facilitating effortless internal wiring and maintenance.
• Equipped with card issuance and collection buttons, along with illuminated card slots, the entire process is guided by clear voice prompts and intuitive display instructions, ensuring a seamless user experience.

B. Enhanced Card Handling Capabilities

• At the entrance, dual card dispensers are installed, doubling the card storage capacity and effectively reducing the frequency of manual card replenishment. This not only minimizes the workload for operators but also streamlines the entry process for vehicles.
• The exit is equipped with dual card collectors, providing a redundant system where the failure of one collector does not disrupt the normal operation. This redundancy significantly reduces the likelihood of traffic congestion caused by card collection issues.

C. Vehicle Detection and Differentiation

• The integrated dual ground sensor system is designed to accurately distinguish between motorcycles and small vehicles. This allows for the implementation of different tariff calculations based on vehicle types, providing a more flexible and fair billing system.

D. Cost-Effective Communication

• With an in-built intercom button and microphone, the ticket box supports LAN intercom functionality through dedicated software. This eliminates the need for additional intercom installations, resulting in cost savings for the overall project.

E. Gate Status Monitoring

• The gate feedback interface offers real-time visual representation of the gate status and its peripheral connections on the management software. This enables operators to have complete control and awareness of the access points at all times.

F. Industrial-Grade Durability

• Engineered to withstand extreme conditions, the ticket box can operate flawlessly within a wide temperature range of -40°C to 85°C. This ensures reliable 24/7 performance, making it suitable for various environments.

G. Easy Installation and Connectivity

• Featuring an RJ45 interface for LAN connection, the ticket box can automatically establish a connection with the management software once the server's IP address is configured. This simplifies the installation and commissioning process, saving both time and effort.

H. Commercial Value Addition

• In addition to its core parking management functions, the system also offers commercial advertising capabilities. This provides an opportunity for additional revenue generation through targeted advertising displays.

III. Product Specifications

A. Hardware Specifications

B. Wiring Method and Notes

1. Wiring Diagram: The power supply (110~220VAC) is connected to the ticket box, which is then networked to the managing computer via an RJ45 switch and controllers. The provided diagram illustrates the external device connections.
2. Wiring Precautions:
   • Given the complex internal wiring of the ticket box, which is pre-configured at the factory, it is essential to follow the external connection diagram.
   • When wiring the ground induction loop, strict adherence to the twisted pair principle is required, with the twisted pair connected to the ground detection sensor. Failure to do so may lead to inaccurate vehicle entry and exit detection.
   • In case of any discrepancies between the wiring interface positions in the diagram and the actual device, refer to the markings on the actual device for accurate wiring.

C. Product Dimension Diagram

IV. Internal Component Specifications

A. Controller

1. Key Features:
   • Built with a robust industrial-grade design, the controller can operate stably within a temperature range of -40°C to 85°C. It is equipped with a watchdog timer to prevent system crashes and ensure uninterrupted operation.
   • The high-speed TCP/IP interface enables fast and efficient communication, while also simplifying the wiring process.
   • It provides a DLL (Dynamic Link Library), allowing for easy integration and function calls in different programming languages, facilitating the implementation of complex features.
   • Multiple communication interfaces are available to meet diverse industry requirements and ensure seamless connectivity with other devices.
   • With three light control outputs, it can effectively manage 5-24V LED lights, enhancing the visual display and user guidance.
   • The three ground induction inputs enable real-time vehicle type detection, enabling precise card issuance and paper ticket printing based on the detected vehicle type.
   • Three button inputs are provided for different operational functions, allowing for intuitive user interaction.
   • Dual gate control with isolation ensures simultaneous and independent control of two gates, enabling smooth entry and exit operations.
   • Dual gate feedback with isolation input allows for accurate monitoring of the gate switch status, enhancing security and operational awareness.
   • The dual card dispenser/collector interfaces provide flexibility in connecting multiple card handling devices, optimizing the card management process.
   • A multifunctional button is included for system reset, default settings restoration, and forced upgrade mode, ensuring easy system management and maintenance.
   • Back-end web page access enables convenient configuration of local and destination IP addresses on the control board, enhancing network management capabilities.
   • Customizable communication port numbers prevent conflicts with existing systems, ensuring seamless integration into various network environments.
   • External LED and LCD display screen support enables enhanced interactivity and information display, providing users with clear instructions and status updates.
   • The system supports both online and SD card-based upgrades, ensuring easy access to the latest features and improvements, and simplifying system maintenance.
   • The exterior of the controller features an aluminum shell with laser printing technology, providing efficient heat dissipation, clear text markings, and an aesthetically pleasing appearance.

B. LCD Display

1. Main Features:
   • Designed and manufactured to industrial standards, the LCD display is suitable for high-temperature environments within the ticket box, with an operating temperature range of -30°C to +70°C.
   • Boasting an ultra-high brightness of 900nit, it ensures clear visibility even in direct sunlight, and features a wide viewing angle for optimal user experience.
   • The built-in RTC clock retains time data even during power outages, with automatic time recovery upon power-on, ensuring accurate timekeeping and system synchronization.
   • The backlight brightness is adjustable across 64 levels, allowing for energy-efficient operation at night or in low-light conditions.
   • Before leaving the factory, the LCD display undergoes a 24-hour aging process to ensure reliable and stable performance upon delivery.

C. Card Dispenser

1. Main Features:
   • Engineered with industrial-grade durability, the card dispenser is resistant to wear and corrosion, making it suitable for various harsh environments, including high temperatures and dusty conditions.
   • The friction hair card mechanism mimics the action of a human hand, ensuring reliable card dispensing and strong adaptability to different card types.
   • Equipped with a hardware watchdog and an embedded micro real-time operating system, the card dispenser guarantees reliable and continuous operation, minimizing the risk of system failures.
   • The pre-issue card function significantly speeds up the card issuance process, effectively reducing vehicle queuing times and improving traffic flow.
   • Automatic sound alarms are triggered in case of low card levels, empty card trays, or system faults, ensuring timely operator intervention. The system also features an automatic reset function after 100 seconds of error alarm.
   • It offers both RS232 and I/O level control interfaces, providing flexibility in system integration and operation.
   • With a high card recycling capacity of over 40 cards and an audible full-card alarm, the card dispenser ensures efficient card management.
   • The enhanced safety recovery function prevents malicious card loss, enhancing the security of the card handling process.
   • The stackable card box design allows for flexible expansion of the card storage capacity, adapting to different usage requirements.
   • The card thickness can be adjusted within a range of 0.3mm to 2.5mm (factory-set to 0.8mm), accommodating various card materials.
   • The sliding rail installation design simplifies the installation and removal of the card dispenser, making maintenance and servicing quick and convenient.
   • Manufactured using full mold production techniques, the card dispenser ensures high product accuracy and consistent quality.

D. Card Receiver

1. Main Features:
   • In case of card blockages, the card receiver offers flexible options, allowing operators to choose between returning the card after a timeout or forcibly receiving the card without returning it.
   • The card recognition timeout and return settings can be customized, providing greater control over the card handling process.
   • It can provide enable and switch signals to the host computer, enabling seamless integration with the overall parking management system.
   • The card receiver is equipped with sound and light alarms to alert operators in case of incorrect card insertions or other error conditions.

E. Paper Ticket Printer

1. Main Features:
   • The printer offers font enlargement capabilities, allowing text to be enlarged from 1x to 7x using command control, ensuring clear and legible ticket printing.
   • Equipped with a long-life cutter with a comprehensive lifespan of over 1 million paper cuts, it ensures reliable and durable operation.
   • The built-in paper out sensor, black mark sensor, and optional paper end sensor enable continuous monitoring of the printer's status, ensuring smooth operation and preventing paper jams.
   • It supports barcode and QR code printing in various formats, with the pixel size of the QR code being freely adjustable to meet different application requirements.
   • The printer features a built-in GBK Chinese character library and an integrated Traditional Chinese character library, enabling multilingual ticket printing.
   • It supports USB or RS232 IAP update, facilitating easy firmware upgrades and maintenance, ensuring the printer remains up-to-date with the latest features.

F. Vehicle Loop Detector

1. Main Features:
   • Designed with full industrial-grade specifications, the vehicle loop detector can operate continuously within a temperature range of -40°C to 85°C, ensuring reliable 7*24-hour performance.
   • It is highly adaptable, capable of detecting various vehicle models. The detection parameters can be adjusted to optimize performance for different vehicle types, ensuring accurate vehicle detection.
   • The detector features two sets of relay outputs, with each group's output mode being customizable. It can be set to pulse or existence output, depending on the specific application requirements.
   • The DIP switch allows for easy adjustment of the sensing sensitivity, facilitating quick and efficient detector setup and calibration.
   • It supports delayed output of the detection signal, which can be customized to meet specific operational needs, ensuring smooth and coordinated vehicle entry and exit.
   • The detection frequency can be adjusted, and adjacent coils can be set to different frequencies to prevent same-frequency interference, ensuring reliable and accurate vehicle detection.
   • The long-term detection automatic reset output can be configured to avoid output failures due to abnormal conditions, enhancing the stability and reliability of the system.

G. IC Card Reader

1. Main Features:
   • Built with industrial-grade durability, the IC card reader can operate continuously within a temperature range of -40°C to 85°C, ensuring reliable 7*24-hour performance.
   • It can read TypeA protocol M1 cards and can be customized to read TypeB protocol cards, providing flexibility in card compatibility.
   • The RS232 communication interface simplifies integration with other devices, and an available SDK allows for further development and customization.
   • The multi-field hole design ensures compatibility with different types of card acceptors and dispensers, enhancing its versatility in various parking management setups.

H. Ticket Box IC Card Reader

1. Main Features:
   • With an industrial-grade design, it can operate stably within a temperature range of -40°C to 85°C, providing reliable service for 7*24 hours.
   • Capable of reading TypeA protocol M1 cards and can be customized to read TypeB protocol cards, meeting different card reading requirements.
   • The RS232 communication interface enables seamless connection with the system, and the provided SDK facilitates custom development.
   • Multiple fixed hole designs ensure compatibility with various card readers and dispensers, allowing for easy installation and integration.
