JUTAI Entrance/Exit Parking Lot Card Machine For Efficient Parking Management JTPE-1

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	JTPE-1 (Entrance)/JTPE-5 (Exit)
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	100 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Power Supply	AC 110~220V	Communication Interfaces	1 RJ45, 4 RS232, 1 RS485
Screen Brightness	900nit (LCD), 1500nit (LED)	Screen Resolution	800×600 (LCD), 64×16 (LED)
Screen Size	8 Inches (LCD)	Card Ejection Type	13.56MHz Mifare1 Card
Monthly Card Type	13.56MHz Mifare1 Card Or 125K ID Card	Dimensions (Length×Width×Height)	482×443×1280mm
Highlight	Parking Lot Card Machine , Entrance/Exit Parking System , parking management system

Leave a Message

Product Description

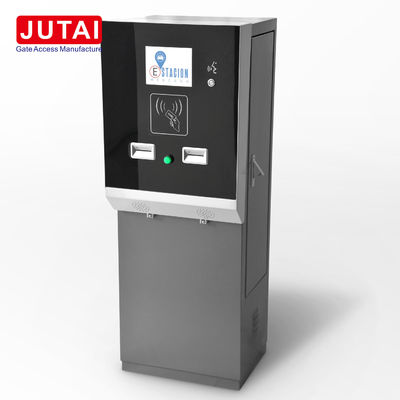

Parking Lot Entrance/Exit Ticket Box Product Description

JUTAI Entrance/Exit Parking Lot Card Machine For Efficient Parking Management JTPE-1 0

1. Product Introduction

The parking lot entrance/exit ticket box is an essential equipment for enclosed parking facilities. It offers self-service card issuance and collection services, enhancing the efficiency of parking management.

Key Features

Dual Dispenser/Collector Design: The entry features dual card dispensers, doubling the card capacity and reducing manual workload. The exit is equipped with dual card collectors, ensuring continuous operation even if one collector fails.
User-friendly Operation: Card issuance and collection buttons, along with slot lighting, are provided. Voice prompts and display screens offer intuitive guidance throughout the process.
Vehicle Sensing: A dual ground sensor system accurately differentiates between motorcycles and small vehicles for precise tariff calculation.
Intercom Capability: The built-in intercom button and microphone support LAN intercom with software, eliminating the need for additional intercom systems and reducing costs.
Gate Status Monitoring: The gate feedback interface allows for real-time visualization of gate status and peripheral connections on the management software.
Reliable in Harsh Conditions: With an industrial-grade design, it can operate stably in temperatures ranging from -40°C to 85°C, ensuring 24/7 performance.
Easy Network Integration: The RJ45 interface enables seamless connection to the LAN. Once the server's IP address is configured, it automatically connects to the management software, simplifying installation and commissioning.

Application Scenarios

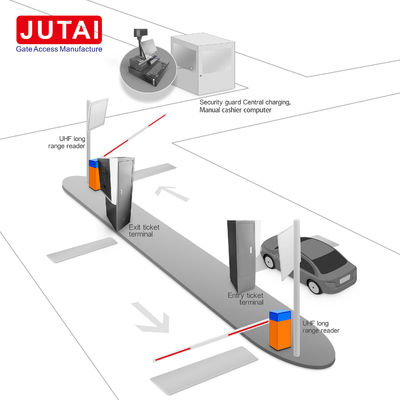

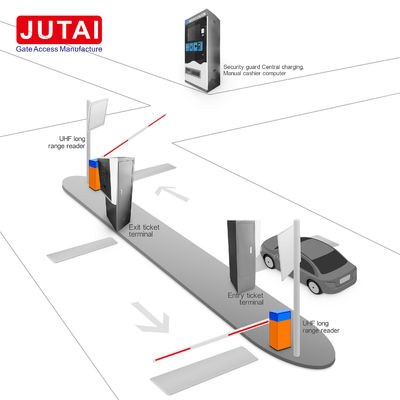

This ticket box is suitable for a wide range of enclosed parking lots, including those in residential areas, supermarkets, large commercial centers, and mixed-use developments. It effectively manages both fixed vehicle access and temporary parking fees, offering multiple billing rates and methods. It also supports differentiated billing based on vehicle types and allows for customization of special rates.

2. Product Specifications

Hardware Specifications

Specification Item	Details
Model	JTPE - 1 (Entrance)/JTPE - 5 (Exit)
Power Supply	AC 110~220V
Power Consumption	≤50W
Communication Interfaces	RJ451, RS2324, RS485*1
Screen Brightness	900nit (LCD)/1500nit (LED)
Screen Resolution	800600 (LCD)/6416 (LED)
Screen Size	8 inches (LCD)
Card Ejection Type	13.56MHz Mifare1 card
Card Dispenser/Collector Quantity	Up to 2
Monthly Card Type	13.56MHz Mifare1 card or 125K ID card
Voice Prompts	Supports Chinese and English
Operating Temperature	-30°C~+70°C
Operating Humidity	5% to 95% without condensation
Installation Method	Ground installation
Dimensions	4824431280mm

Wiring Method

The ticket box is connected to a power source of 110~220VAC. It is also linked to the managing computer via a network cable (RJ45) through an RJ45 Switch. The controllers are connected to the ticket box at the entrance and exit, and these are further connected to the gates.

Wiring Notes

The internal wiring of the ticket box is complex and pre-completed at the factory. The provided diagram shows only the external device connection.
When wiring the ground induction loop, strictly adhere to the twisted pair principle with the twisted pair connected to the ground detection sensor. Failure to do so may lead to inaccurate vehicle detection.
If the wiring interface positions on the diagram do not match the actual device, refer to the actual device's wiring positions and labeling.

Product Dimension Diagram

The ticket box has dimensions of 482mm (width) * 443mm (depth) * 1280mm (height). The internal layout and component placements are designed to optimize space utilization and functionality.

3. Internal Component Specifications

Controller (PM - 900)

Key Features:
- Industrial-grade construction for stable operation in -40°C to 85°C with a watchdog to prevent system crashes.
- High-speed TCP/IP interface for fast communication and convenient wiring.
- Provides a DLL for easy function calls in various programming languages.
- Multiple communication interfaces to meet diverse industry requirements.
- Three light control outputs for 5 - 24V LED lights.
- Three ground induction inputs for real-time vehicle type detection.
- Three button inputs for different operations.
- Dual gate control with isolation for simultaneous gate operation.
- Dual gate feedback with isolation input for monitoring gate status.
- Dual card dispenser/collector interfaces.
- Multi-functional button for reset, default settings restoration, and forced upgrade.
- Back-end web page access for IP address changes.
- Customizable communication port numbers.
- Supports external LED and LCD displays.
- Allows for online or SD card-based upgrades.
- Aluminum shell with laser printing for efficient heat dissipation and an attractive appearance.

Specification Item	Details
Model	PM - 900
Power Supply	DC12V + DC24V
Power Consumption	≤10W (excluding external LED screen)
Communication Interfaces	1 RJ45, 4 RS232, 1 RS485
Input Interface	6 non-isolated IO inputs, 4 isolated IO inputs, 2 Wiegand self-adaptive interfaces
Output Interface	4 relay dry contacts (normally open), 3 traffic light controls (OC output)
Card Reader Interface	Supports connection of 2 card reader devices
Voice Input	Supports intercom function
Voice Prompt	Supports Chinese and English
Operating Temperature	-40°C ~ +85°C
Operating Humidity	5% - 95%, non-condensing
Installation Method	Back screw installation
Dimensions (Length × Width × Height)	218 × 123 × 43.1 mm

LCD Display (JTNP - DWT80600T080_09WN)

Main Features:
- Industrial design with a working temperature range of -30°C to +70°C, suitable for the box's internal environment.
- 900nit ultra-high brightness for visibility in sunlight and a wide viewing angle.
- Built-in RTC clock with power-off data retention and automatic time recovery on power-on.
- Adjustable backlight brightness with 64 levels, enabling energy-saving at night.
- Aged for 24 hours before leaving the factory to ensure quality.

Functional Index	Details
Model	JTNP - DWT80600T080_09WN
Power Supply	DC12V
Power Dissipation	≤8W (At maximum backlight brightness)
Resolution Ratio	800×600
Active Area	162×121.5mm
Backlight Brightness	900nit (visible in sunlight), 64 levels adjustable
Communication Interface	1 RS232
Operating Temperature	-30°C ~ +70°C
Operating Humidity	5% - 95%, no condensation
Installation Method	Back screw mounting
Dimensions (Width × Height × Thickness)	204×148.8×17.5mm

Card Dispenser (JTNP - 820M)

Main Features:
- Industrial design for durability in harsh environments.
- Friction hair card mechanism for reliable card dispensing.
- Hardware watchdog and embedded micro real-time operating system for stability.
- Pre-issue card function to speed up the process.
- Automatic alarms for low card, empty card, and faults.
- Automatic reset after error alarms.
- RS232 and I/O level control interfaces.
- High card recycling capacity with an alarm for full card.
- Enhanced safety recovery to prevent card loss.
- Stackable card box design for flexible capacity.
- Adjustable card thickness.
- Sliding rail installation for easy maintenance.
- Full mold production for accuracy and quality.

Functional Index	Details
Model	JTNP - 820M
Power Supply	DC12V
Power Dissipation	≤24W (Full speed operation)
Card Size	54×85mm
Thickness Caliper	Adjustable from 0.3 to 2.5mm, default is 0.8mm
Card Material	Paper or Polyester cards
Exit Time	About 0.5 seconds
Card Box Capacity	150 sheets (calculated at 0.8mm card thickness), can be increased to 270 sheets
Communication Interface	1 RS232, 12P IO interface
Operating Temperature	-30°C ~ +70°C
Operating humidity	30% - 90%, no condensation
Installation Method	Guide rails are installed in the cabinet
Overall Dimension (Length × Width × Height)	316.5×99.6×237mm

Card Receiver (JTNP - 615P)

Main Features:
- Flexible card handling options in case of blockage or timeout.
- Adjustable card recognition timeout settings.
- Can provide signals to the host computer.
- Wrong state sound and light alarm.

Functional Index	Details
Model	JTNP - 615P
Power Supply	DC24V
Power Dissipation	≤24W (Full speed operation)
Card Size	54×85mm
Card Material	Paper or polyester cards
Exit Time	About 2s
Communication Interface	1 RS232, 12P IO interface
Operating Temperature	-30°C ~ +70°C
Operating Humidity	30% - 90%, no condensation
Installation Method	Guide rails are installed in the cabinet
Dimensions (Width × Height × Thickness)	140×94×102mm

Paper Ticket Printer (JTNP - DYJ - ZJT01/NP - DYJ - ZZB01)

Main Features:
- Font enlargement from 1x to 7x.
- Long-life cutter with over 1 million paper cuts.
- Multiple sensors for printer status monitoring.
- Supports barcode and QR code printing with adjustable pixel size.
- Built-in character libraries.
- USB or RS232 IAP update for easy maintenance.

Functional Items	Details
Model	JTNP - DYJ - ZJT01 (printing head)/NP - DYJ - ZZB01 (main board)
Power Supply	DC24V
Power Consumption	≤48W (peak value during printing)
Instruction Set	ESC/POS
Printing Method	Line thermal
Resolution	203dpi, about 8 dots per mm
Printing Speed	120 - 150mm/second
Bill Size	58mm
Print Life	More than 100Km
Communication Interface	1 RS232, 1 USB interface
Operating Temperature	20°C - +70°C (the best printing effect is within the range of 5°C - 50°C)
Working Humidity	30% - 90%, no condensation
Installation	Installed in cabinet for use
Dimensions (length × width × height)	126.9×91.9×57.5mm (printing head) 96×55×20mm (main board)

IC Card Reader (JTNP - RW102)

Main Features:
- Industrial-grade design for continuous operation in -40°C to 85°C.
- Reads TypeA protocol M1 card, customizable for TypeB.
- RS232 communication interface with SDK for development.
- Multi-hole design for compatibility.

Indicator Items	Details
Model	JTNP - RW102
Power Supply	DC5V
Power Consumption	≤1W
Card Reading Type	1 RS232
Reading Distance	Type A, Type B (customized)
Card Reading Speed	3 - 5cm
Reading Time	Less than 0.3 seconds
Working Temp	-40°C - +85°C
Working Humidity	5% - 90%, no condensation
Installation	Mounted for use in cabinets
Dimensions (Width × Height × Thickness)	65×57mm

Ticket Box IC Card Reader (JTNP - RW101)

Main Features:
- Industrial-grade design for stable operation in -40°C to 85°C.
- Reads TypeA protocol M1 card, customizable for TypeB.
- RS232 communication interface with SDK for development.
- Multiple fixed hole design for compatibility.

Functional Index - Ticket Box IC Reader	Details
Model	JTNP - RW101
Power Supply	DC5V
Power Dissipation	≤1W
Communication Interface	1 RS232
Read Type	Type A, Type B (Customization Required)
Read Distance	8 - 10cm
Read Speed	Less than 0.3 seconds
Operating Temperature	-40°C - +85°C
Operating Humidity	5% - 90%, non-condensing
Installation Method	Installed for use in a cabinet
Overall Dimension (Length × Width)	133.5 × 126.2mm
