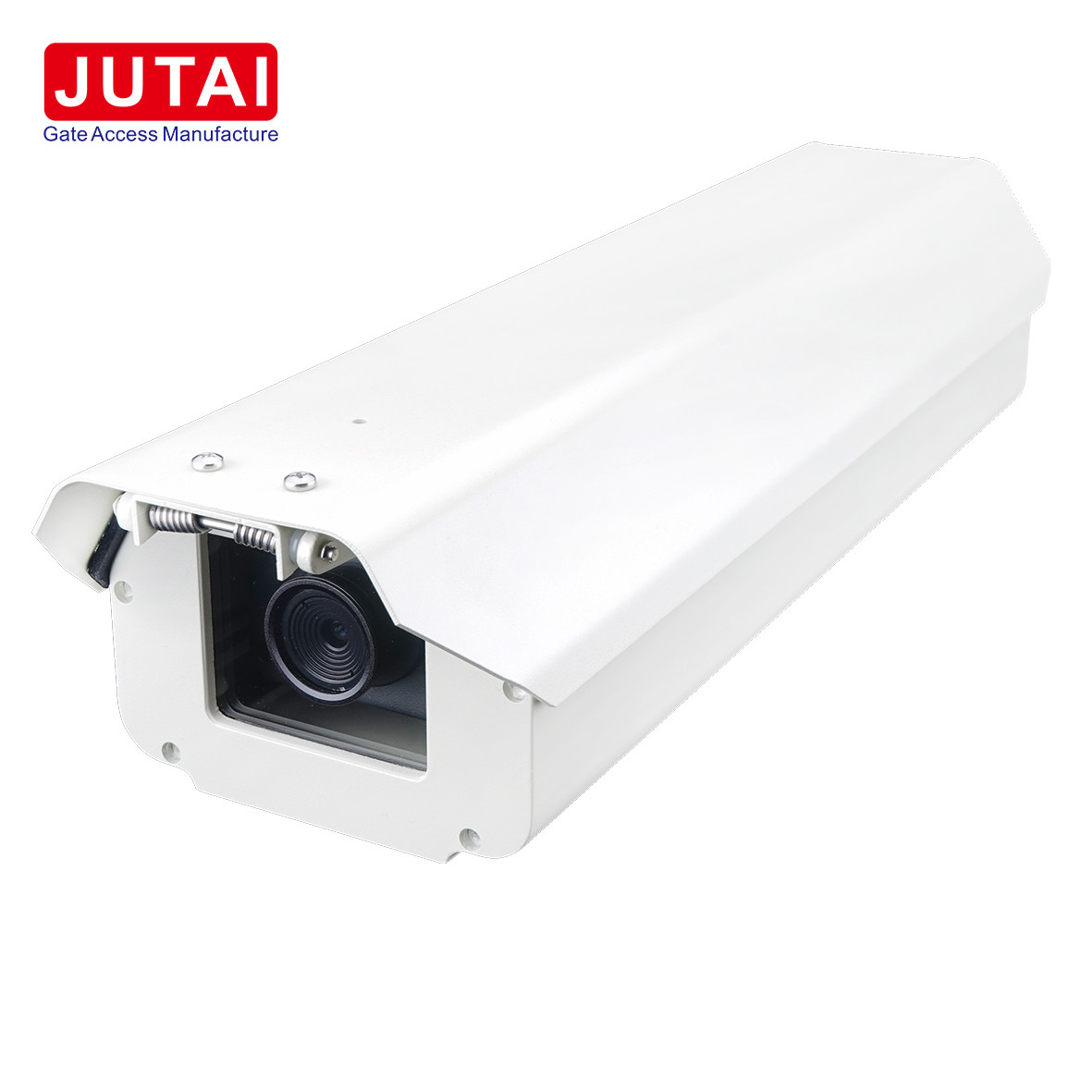

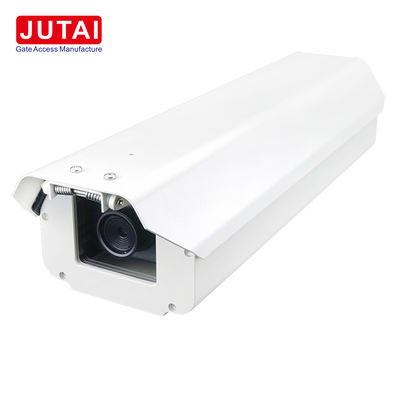

LPR Parking System 2MP Starlight License Plate Recognition Integrated Machine ANPR

  • LPR Parking System 2MP Starlight License Plate Recognition Integrated Machine ANPR
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number C1504-Y/C1504-J
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 100 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 12V DC, Supports 9 - 15V DC, Standard 12V/2A Network Interface RJ45/LAN, Supports 10/100Mbps Ethernet Transmission
Serial Port (RS485) A1/B1, Used To Connect To The Upper Computer And Output Recognition Results Audio (AUDIO) AIN/IAOUT/IGND, Supports Audio Input/output
IO Output (ALARM OUT) OUT1/OUT2, Can Be Used For Operations Such As Lifting The Boom Barrier IO Input (ALARM IN) IN1/2/3/4/GND, Externally Connected To The Ground Induction Coil For Signal-triggered Capture
Highlight

LPR Parking System

,

license plate recognition parking system

,

License Plate Recognition Integrated Machine
Leave a Message
Product Description

2MP Starlight License Plate Recognition Integrated Machine Product Description

LPR Parking System 2MP Starlight License Plate Recognition Integrated Machine ANPR 0

1. Product Overview

Product Introduction



This 2MP starlight license plate recognition integrated machine is an intelligent imaging device specially designed for license plate recognition in high-end parking lots, highway toll stations, urban road bayonets and other scenarios. It can provide structured and accurate data collection support for intelligent traffic services, and is an important part of the urban traffic system.

Key Features



  • High-definition Imaging and Wide Recognition Range: It provides 2MP starlight ultra-high-definition imaging and can recognize over 2100 vehicle types.
  • Intelligent Light Compensation: The intelligent light compensation function can automatically adjust according to the ambient light to ensure clear imaging.
  • Data Storage and Transmission: It supports front-end storage for convenient data management. It also has multiple networking methods such as 4G wireless networking, cloud remote operation and maintenance, and offline self-networking to ensure stable and efficient data transmission.
  • Special Scene Handling: It can trigger the recognition of unlicensed vehicles and has license plate anti-counterfeiting functions to adapt to complex scene requirements. It ensures continuous operation of the business 7*24 hours and reduces after-sales maintenance costs.

Application Scenarios



It is suitable for license plate recognition in parking lots, highway toll stations, urban road bayonets and other scenarios, and meets the business needs of "unattended" and "senseless payment".

2. Product Specifications

Hardware Specifications



Specification Item Details
Model C1504-Y/C1504-J
Power Supply 12V DC, supports 9 - 15V DC, standard 12V/2A
Network Interface RJ45/LAN, supports 10/100Mbps Ethernet transmission
Serial Port (RS485) A1/B1, used to connect to the upper computer and output recognition results
Audio (AUDIO) AIN/IAOUT/IGND, supports audio input/output
IO Output (ALARM OUT) OUT1/OUT2, can be used for operations such as lifting the boom barrier
IO Input (ALARM IN) IN1/2/3/4/GND, externally connected to the ground induction coil for signal-triggered capture
Lamp Interface LED+/LED-, used for power supply and control of the lamp
USB Interface USB, USB2.0 interface
SD Card Slot TF-CARD, SD, maximum 128G
Reset RESET, press for 5 to 10 seconds to fully restore the factory configuration
Indicator Light SYS (green), flashing means the system is working properly, on or off means starting or abnormal

Installation Location and Height Requirements



Installation Requirements Height
Installation on the front of the road gate, about 3 - 6 meters from the virtual coil, about 3 - 4 meters from the trigger. In the scene dominated by small cars, the height of the integrated machine is about 1.4 m above the ground. In the scene dominated by large trucks, the integrated machine is about 1.6 m above the ground. The angle of the integrated machine is recommended to be between 15 ° and 40 ° as far as possible. See above

Interface Description



Function Remark Instruction
Power DV12V;GND Support 9 - 15V DC, standard 12V/2A
Network Interface RJ45/LAN Support 10/100Mbps Ethernet transmission
Serial Port (RS485) A1/B1 Connect the upper computer and output the identification results
Audio (AUDIO) AIN/IAOUT/IGND Audio input/output
IO Output (ALARM OUT) OUT1/OUT2 Can be used for the operation of a road gate lifting rod and the like
IO Input (ALARM IN) IN1/2/3/4/GND Ground-sensing coil for external signal-triggered grab
Lamp Interface LED+/LED- Used for power supply and control of lamp
USB Interface USB USB2.0 interface
SD Card Slot TF-CARD SD, maximum 128G
Reset RESET Press for 5 to 10 seconds for a long time, and the equipment will fully restore the factory configuration
Indicator Light SYS (green) Flashing means the system is working properly, keep on or off means starting or abnormal
