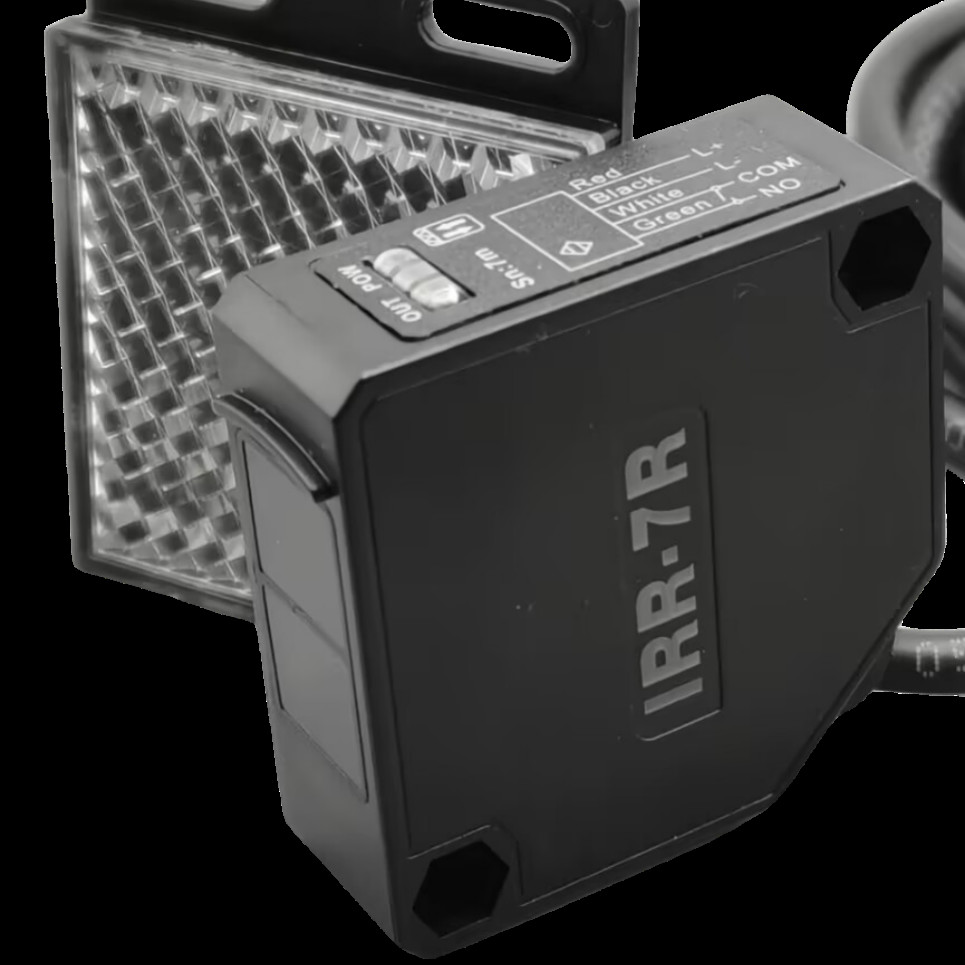

Waterproof Reflective Infrared Photocell Sensor for Garage Door Automation Reliability

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	IRR-7R
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Detection Range

Model NO.

IRR-7R

Material

ABS+PC

Feature

Fast Detection Speed

IP Rating

IP65

Customized

Receiver

12 - 24V AC 12 - 30V DC

Operating Temperature

-20 To 60 ℃

Comsuption

≤11mA

Output Status

NO&NC

Specification

14*9*5.5cm

HS Code

9031809090

Highlight

Reliability Infrared Photocell Sensor

Waterproof Reflective Infrared Photocell Sensor

Garage Door Automation Infrared Photocell Sensor

IRR - 7R Reflective Infrared Sensor: 7 - meter Detection Range, IP65 Protection, Relay Output for Door Safety

Name: Waterproof Reflective Infrared Photocell Sensor for Garage Door Automation Reliability
Brand: Shenzhen Jutai Comm Co., Ltd.
SKU: IRR-7R
Availability: InStock

Refletive Photoelectric Sensor for Gate Opener System

Product Introduction

The IRR - 7R reflective infrared sensor is a highly reliable and efficient safety sensor specifically designed for door - safety applications. This sensor employs advanced reflective infrared technology, integrating the transmitter and receiver into a single compact unit. A reflective mirror is utilized to bounce the emitted infrared light back to the sensor, ensuring consistent performance. When the infrared beam remains unobstructed, the sensor operates as normal. However, when the beam is blocked, the sensor detects the interruption in the signal and promptly triggers the relay output, providing a swift and reliable safety response.

Key Features

Reflective Infrared Technology

The sensor combines the emitter and receiver into one compact unit and uses a reflective mirror to detect obstacles. This design reduces installation complexity while ensuring stable detection performance.

7 - meter Detection Range

With a stable detection range of up to 7 meters, the IRR - 7R offers reliable and efficient coverage for large - scale door areas.

IP65 Waterproof Rating

The IRR - 7R is fully sealed with an IP65 rating, making it resistant to dust and water, thus ensuring long - term durability in both indoor and outdoor environments.

Relay Output for Safety Control

The sensor is equipped with a built - in relay output that activates immediately when the infrared beam is interrupted, providing an instant response for door - safety systems.

Simple Installation and Setup

There is no need for complex wiring between the emitter and receiver as the sensor only requires a single unit with a reflector, simplifying the installation process.

Versatile Applications

This sensor is designed for a wide variety of door - safety applications, including automatic doors, industrial doors, and other barrier systems.

Product Advantages

Cost - effective Design

By integrating the transmitter and receiver into one unit, the sensor minimizes installation costs and reduces the need for additional wiring.

Quick Response

The IRR - 7R reacts instantaneously when an obstacle is detected, ensuring the highest level of safety in any environment.

Durability

The robust IP65 - rated housing protects the sensor from harsh environmental conditions, such as rain, dust, and humidity.

Long Detection Range

With a range of up to 7 meters, this sensor is suitable for most industrial and commercial door applications, providing extensive coverage and reliable operation.

Technical Specifications

Model: IRR - 7R
Detection Range: 7 meters
Output Type: Relay output
Response Time: Immediate
Waterproof Rating: IP65
Operating Temperature: - 25℃ to + 55℃
Operating Voltage: 12 - 24V DC
Dimensions: Compact, suitable for various door types
Mounting: Easy installation with a reflective - mirror setup

The IRR - 7R reflective infrared sensor is a reliable and efficient solution for door - safety applications. With its easy installation, wide detection range, and robust design, it offers a cost - effective and dependable way to ensure the safety of automatic and industrial doors. Whether you are seeking enhanced safety in commercial or industrial settings, the IRR - 7R provides the perfect balance of technology, reliability, and ease of use.

Parameter

Value

Sensing Mode

Retro-reflective

Sensing Distance

7 meters

Sensing Object

Opaque object, minimum 75mm

Standard Target

Reflector

Response Time

53ms

Supply Voltage

DC12-24V (10-30V DC), ripple (p-p): 10% max

Output Type

NPN output

Output Status

Normally Open (N.O.)

Consumption

≤20mA

Load Current

200mA

Voltage Drop

≤1.8V (200mA)

LED Display

Red LED

Sensitivity Adjustment

Non-adjustable

Circuit Protection

Short circuit protection, reversed polarity protection, overload protection

Operating Temperature

-10°C to +55°C

Insulation Resistance

≥50MQ

Anti-impact

10-55Hz (amplitude 1.5mm), X,Y,Z direction, each 10 times

Protection

IP67

Connection

Cable: ø4.8mm, 2M

Housing Material

PBT

Accessories

Mounting bracket: 1pcs; Reflector: 1pcs

Product Size

50*50*18mm
