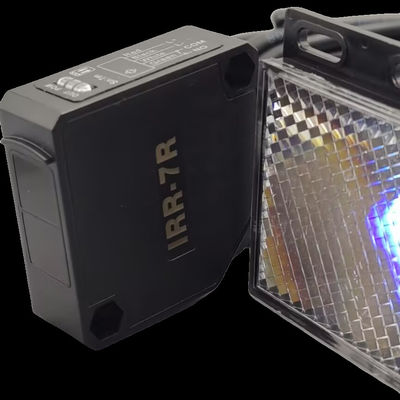

7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates

  • 7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates
  • 7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number IRR-7R
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. IRR-7R Material ABS+PC
Feature Low Temperature Resistant IP Rating IP66
Customized Customized Receiver 12 - 24V AC 12 - 30V DC
Operating Temperature -20 To 60 ℃ Sensing Range 6.5-7m
Comsuption ≤11mA Output Status No&Nc
Specification 1unit Package 14*9*5.5cm HS Code 9031809090
Highlight

Automatic Gates Infrared Sensor

,

7m Range Infrared Sensor

,

Waterproof Infrared Sensor
Leave a Message
Product Description

IRR - 7R Reflective Infrared Sensor: Reliable Door Safety with Cost - effectiveness

Refletive Photoelectric Sensor for Gate Opener System


The IRR - 7R Reflective Infrared Sensor stands out as a reliable and cost - effective solution for door safety applications. Its design and features make it a popular choice across different industries.

Key Features


  • Integrated Reflective Infrared Design: The sensor integrates the emitter and receiver, along with a reflective mirror, to detect obstacles. This integrated design simplifies installation and provides consistent detection results.
  • Impressive 7 - Meter Detection Reach: With a stable sensing distance of 7 meters, it can cover large door areas effectively.
  • Superior IP65 Waterproofing: The IP65 rating ensures the sensor is fully sealed, protecting it from dust and water, making it suitable for both indoor and outdoor use.
  • Instant Relay - based Safety Response: The built - in relay output promptly activates when the infrared beam is blocked, providing an immediate safety response for door systems.
  • User - friendly Installation: Installation is a breeze as it only requires a single unit with a reflector, eliminating the need for complex wiring.
  • Diverse Application Range: It caters to a wide variety of door safety applications, such as automatic doors, industrial doors, and barrier systems.

Advantages


  • Cost - efficient Setup: Combining the transmitter and receiver reduces installation costs and the need for additional wiring.
  • Swift Reaction: Detects any obstruction immediately, ensuring maximum safety.
  • Long - lasting Durability: The IP65 - rated housing safeguards the sensor from harsh environmental elements like rain, dust, and humidity.
  • Broad - spectrum Application: The 7 - meter range makes it suitable for most industrial and commercial door applications.

Technical Specifications


Parameter Value
Sensing Mode Retro - reflective
Sensing Distance 7 meters
Sensing Object Opaque object, minimum 75mm
Standard Target Reflector
Response Time 53ms
Supply Voltage DC12 - 24V (10 - 30V DC), ripple (p - p): 10% max
Output Type NPN output
Output Status Normally Open (N.O.)
Consumption ≤20mA
Load Current 200mA
Voltage Drop ≤1.8V (200mA)
LED Display Red LED
Sensitivity Adjustment Non - adjustable
Circuit Protection Short circuit protection, reversed polarity protection, overload protection
Operating Temperature - 10°C to + 55°C
Insulation Resistance ≥50MQ
Anti - impact 10 - 55Hz (amplitude 1.5mm), X,Y,Z direction, each 10 times
Protection IP67
Connection Cable: ø4.8mm, 2M
Housing Material PBT
Accessories Mounting bracket: 1pcs; Reflector: 1pcs
Product Size 505018mm

Applications


  • Commercial Automatic Doors: Ensures safe operation for sliding, swinging, and revolving doors in commercial buildings by detecting people or objects.
  • Industrial Door Applications: Suitable for large doors in warehouses, loading docks, and manufacturing facilities.
  • Barrier and Access Control Systems: Ideal for safety barriers and access control systems where accurate movement detection is essential.

FAQ


  • Q: Can the sensor be used in outdoor environments?
    • A: Yes, with its IP65 waterproof rating, the IRR - 7R is suitable for outdoor use as it can resist dust and water.
  • Q: What type of output does the sensor have?
    • A: The sensor has an NPN output with a normally open (N.O.) status.
    •





Refletive Photoelectric Sensor for Gate Opener System



Refletive Photoelectric Sensor for Gate Opener System



Refletive Photoelectric Sensor for Gate Opener SystemRefletive Photoelectric Sensor for Gate Opener System

7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates 5

7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates 6

7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates 7

7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates 8

7m Range UV-Proof Reflective Safety Infrared Sensor Waterproof for Automatic Gates 9
