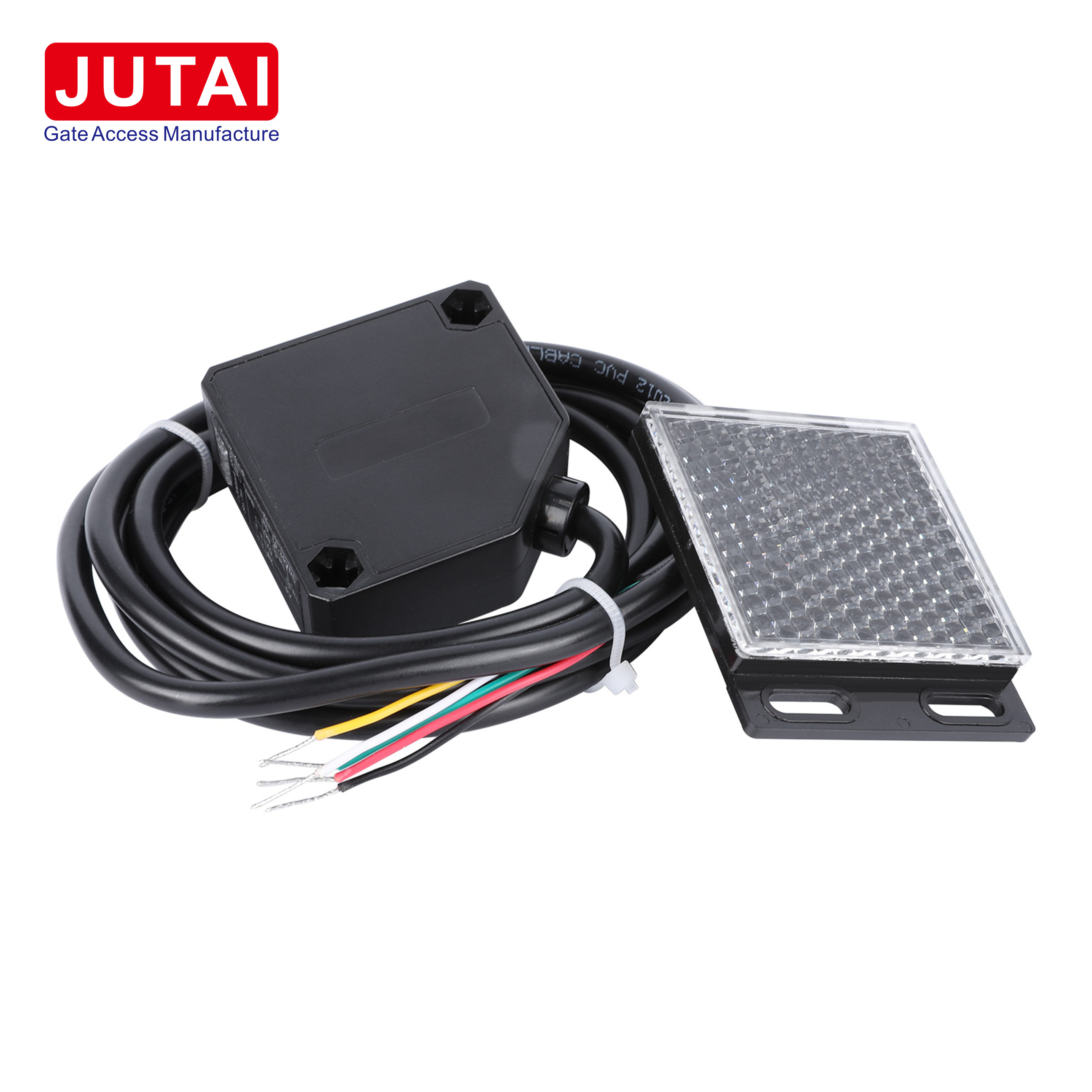

UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates

  • UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates
  • UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number IRR-7R
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month
Product Details
Detection Range 7m Model NO. IRR-7R
Material ABS+PC Feature Fast Detection Speed
IP Rating IP65 Customized Customized
Receiver 12 - 24V AC 12 - 30V DC Operating Temperature -20 To 60 ℃
Comsuption ≤11mA Output Status NO&NC
Specification 14*9*5.5cm HS Code 9031809090
Highlight

Automatic Sliding Gates Photocell Sensor

,

7m Reflective Infrared Photocell Sensor

,

UV-Protected Photocell Sensor
Leave a Message
Product Description

IRR-7R Complete Safety Sensor Kit - Plug-and-Play Solution with 3-Year Warranty
UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 0

Simplified Installation Process

  1. Mounting

    • Use included corrosion-resistant bracket (304 stainless steel)

    • Optimal height: 50-70cm above ground for pedestrian detection

  2. Alignment

    • Adjust reflector angle (±15° vertical/horizontal) using laser alignment marks

    • Green status LED confirms proper beam reception

  3. Wiring

    • 2-meter shielded cable (IP67 M12 connector optional)

    • Color-coded terminals: Brown(+), Blue(-), Black(Output)

Maintenance Comparison Table

AspectIRR-7R SolutionTraditional Sensors
CalibrationAutomatic beam compensationManual quarterly adjustment
Cleaning CycleHydrophobic lens - 6-month intervalMonthly wiping required
Component Lifetime100,000h LED lifespan (11+ years)50,000h typical emitter degradation
Failure DiagnosticsDual-color LED (Green=OK, Red=Fault)External tester needed
Spare PartsUnified replacement unitSeparate emitter/receiver inventories

Lifecycle Cost Advantages

  • Energy Efficiency: 0.24W power consumption vs. 0.8W standard models

  • Downtime Reduction: Hot-swappable design enables <5min replacement

  • Smart Monitoring: Optional IoT module (RS485/MODBUS) for predictive maintenance





UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 1

UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 2



UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 3





UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 4UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 5


UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 6
UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 7
UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 8
UV-Protected 7m Reflective Infrared Photocell Sensor for Automatic Sliding Gates 9
