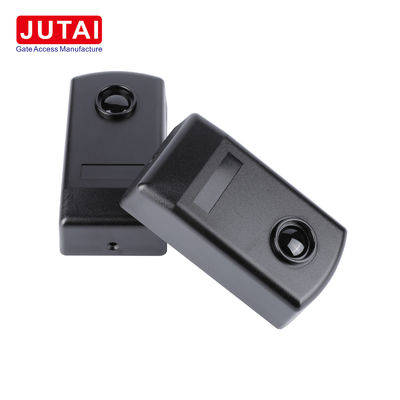

JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers

  • JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers
  • JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number IR-20
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP65 HS Code 8531901000
Package Size 12.00cm * 11.70cm * 4.30cm Package Gross Weight 0.150kg
Detection Range 30m Type Wired
Highlight

Swing Gates IR Sensor

,

30m Detection Range IR Sensor

,

Vehicle Barriers IR Sensor
Leave a Message
Product Description
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 0
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 1

JUTAI IR - 20 Infrared Photo Sensor: Ensuring Outdoor Detection Excellence

I. Introduction
The JUTAI IR - 20 infrared photo sensor is a sophisticated device designed to meet the demands of outdoor detection applications with precision and reliability.

Gate Opener Manufacturing Infrared Sensor Gate Photocell for Door

II. Features and Specifications

A. Prominent Features

  1. ​Wide Application in Door Automation
    • As a solitary beam detector, it finds application in various automated doors. The integrated amplifier in the transmitter-receiver unit emits an infrared beam that is resistant to external light interference.
    • The self-detecting function is crucial for sliding doors. It ensures the door's safe operation by halting and retracting when the beam is interrupted and resuming closure once the beam is restored.
  2. ​Robust Weather Resistance
    • With an IP65 rating and rubber casing, it can withstand the rigors of outdoor environments, including exposure to sunlight, rain, and dust.
  3. ​Long Detection Range
    • The maximum detection range of 20 meters allows for effective coverage in large areas. At a low mounting height, it still maintains a reliable detection range of 2 - 20 meters.
  4. ​High-Quality Components for Consistent Performance
    • German infrared lamps provide stable distance detection and light resistance, while Japanese Omron relays ensure seamless integration with different door operators. SMT production ensures batch quality.

JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 3

B. Technical Parameter Details

Feature Specification
Power Supply 12 - 24VAC/VDC
Max. Range 20 Meters
Operating Temperature - 10 to +60°C
Max. TX Working Current 25mA
Max. RX Working Current 35mA
Max. Relay Contact 500mA at 48VAC/VDC
IP Rating IP65 with rubber

III. How It Works
The sensor works by transmitting an infrared beam. When an object obstructs this beam within the detection zone, it changes the signal received by the receiver. In sliding door applications, this change prompts the self-detecting mechanism to control the door's movement. In security systems, it can trigger an alarm signal upon beam interruption.

JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 4

IV. Installation Guidelines

  1. Open the front panel of the IR - 20M.
  2. Insert the cables into their respective housings and secure the base to the wall using the appropriate mounting method.
  3. Connect the power supply within the specified voltage range.
  4. Verify the red LED status on the receiver; it should be off with correct positioning. Interrupting the beam should activate the LED.
  5. Cover the sensor with the front panel and fix it in place.
  6. Test the relay response by repeatedly interrupting the beam.

JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 5

V. Application Areas

  1. ​Gate and Door Automation
    • Ideal for body induction in gates and anti-burglar detection in doors and windows.
  2. ​Security Systems
    • Suitable for security setups in schools, commercial buildings, hospitals, and homes.

VI. Summary
The JUTAI IR - 20 sensor is a reliable and efficient solution for outdoor detection tasks.



JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 6
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 7
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 8
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 9
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 10
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 11
JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 12

Gate Opener Manufacturing Infrared Sensor Gate Photocell for Door

JUTAI 30m Detection Range IR Sensor for Swing Gates and Vehicle Barriers 14
