Sunlight-Proof IR Sensor for Parking Barriers and Automatic Gates - 30m Detection

Place of Origin China
Brand Name JUTAI
Certification CE
Model Number IR-20
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP65 HS Code 8531901000
Package Size 12.00cm * 11.70cm * 4.30cm Package Gross Weight 0.150kg
Detection Range 30m Type Wired
Highlight

Automatic Gates IR Sensor

,

Parking Barriers IR Sensor

,

30m Detection IR Sensor

Leave a Message
Product Description
Sunlight-Proof IR Sensor for Parking Barriers and Automatic Gates - 30m Detection 0
Sunlight-Proof IR Sensor for Parking Barriers and Automatic Gates - 30m Detection 1

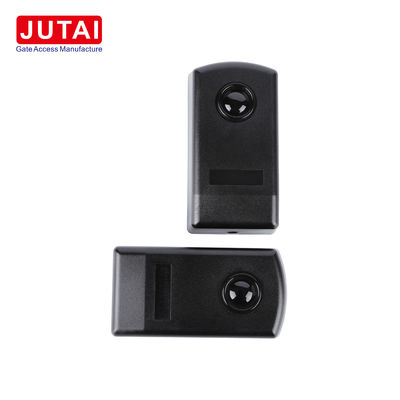

JUTAI IR - 20 Infrared Photo Sensor: Your Ideal Outdoor Detection Partner

I. Overview
The JUTAI IR - 20 infrared photo sensor is a high-quality device engineered to provide accurate and reliable outdoor detection in a variety of applications.

Gate Opener Manufacturing Infrared Sensor Gate Photocell for Door

II. Features and Technical Parameters

A. Notable Features

  1. Versatile Application in Door Systems
    • This solitary beam detector is commonly used in automated doors such as sliding, shutter, and garage doors. The integrated amplifier emits an infrared beam that is less affected by external light.
    • The self-detecting feature for sliding doors ensures smooth operation. When the beam is blocked, the door stops closing and retracts, then resumes closure when the beam is clear.
  2. Weather-Resistant Construction
    • With an IP65 rating and rubber casing, it can resist ultraviolet radiation and abrasive particles, making it suitable for outdoor use in all weather conditions.
  3. Extended Detection Distance
    • It has a maximum detection range of 20 meters. Even at a low elevation, it maintains a reliable detection range of 2 - 20 meters.
  4. High-Quality Components for Reliable Operation
    • German infrared lamps ensure stable distance detection and light resistance, while Japanese Omron relays offer compatibility with various door operators. SMT patch production ensures batch quality.

Sunlight-Proof IR Sensor for Parking Barriers and Automatic Gates - 30m Detection 3

B. Technical Parameter Table

Feature Specification
Power Supply 12 - 24VAC/VDC
Max. Range 20 Meters
Operating Temperature - 10 to +60°C
Max. TX Working Current 25mA
Max. RX Working Current 35mA
Max. Relay Contact 500mA at 48VAC/VDC
IP Rating IP65 with rubber

Sunlight-Proof IR Sensor for Parking Barriers and Automatic Gates - 30m Detection 4

III. Working Principle
The sensor transmits an infrared beam. When an object enters the detection zone and interrupts the beam, it changes the signal received by the receiver. In sliding door applications, this change triggers the self-detecting mechanism to control the door's movement. For security systems, an interrupted beam can send an alarm signal.

Sunlight-Proof IR Sensor for Parking Barriers and Automatic Gates - 30m Detection 5

IV. Installation Instructions

  1. Lift the front panel of the IR - 20M to open it.
  2. Insert the cables into their housings and fix the base to the wall using suitable anchors or screws.
  3. Connect the power supply within the 12 - 24V DC/AC range.
  4. Check the red LED on the receiver; it should be off with proper setup. Interrupting the beam should turn it on.
  5. Cover the sensor with the front panel and secure it.
  6. Test the relay response by interrupting the beam several times.

V. Applications

  1. Gate and Door Automation
    • Used for body induction in gates and anti-burglar detection in doors and windows.
  2. Security Systems
    • Suitable for security setups in educational institutions, commercial complexes, medical facilities, and residential areas.

VI. Conclusion
The JUTAI IR - 20 sensor is a reliable choice for outdoor detection needs.
