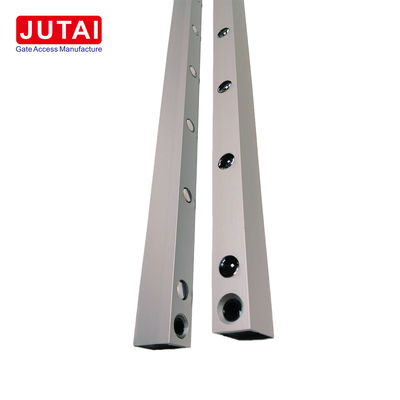

Industrial IP67 Dustproof Photoelectric Light Curtain for Rolling Doors AGVs Freezers 8m -25°C

  • Industrial IP67 Dustproof Photoelectric Light Curtain for Rolling Doors AGVs Freezers 8m -25°C
  • Industrial IP67 Dustproof Photoelectric Light Curtain for Rolling Doors AGVs Freezers 8m -25°C
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2500*21*15 Mm
Leave a Message
Product Description




Product Description



Industrial IP67 Dustproof Photoelectric Light Curtain for Rolling Doors AGVs Freezers 8m -25°C 0

Revolutionizing Industrial Safety: Shenzhen JUTAI Comm Co., Ltd.’s IP67 Waterproof Safety Light Curtain Sensor
Unwavering Protection for Severe Industrial Landscapes

In today’s rapidly evolving industrial environments, where safety risks are constant, Shenzhen JUTAI Comm Co., Ltd. introduces its cutting - edge IP67 Waterproof Safety Light Curtain Sensor. This robust solution is meticulously designed to perform exceptionally well in dusty, damp, and extreme - temperature conditions. With an IP67 rating, the sensor offers strong resistance to water submersion, dust intrusion, and corrosive substances, making it an essential component for manufacturing facilities, logistics centers, cold storage warehouses, and automated production lines across the globe.

Versatile Model Range
Choose from 10 meticulously engineered models with adjustable beam arrangements (4–16 beams) and variable lengths (500mm–2500mm), ensuring a perfect fit for a wide range of applications:

Model Length Beam Quantity Detection Range Beam Spacing Power Consumption Response Time
CL05 - 4L 500mm 4 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL05 - 8L 500mm 8 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL10 - 8L 1000mm 8 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL10 - 16L 1000mm 16 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL15 - 8L 1500mm 8 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL15 - 16L 1500mm 16 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL20 - 8L 2000mm 8 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL20 - 16L 2000mm 16 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL25 - 8L 2500mm 8 beams Up to 8 meters* 100mm ≤4W ≤20ms
CL25 - 16L 2500mm 16 beams Up to 8 meters* 100mm ≤4W ≤20ms

Detection range may be influenced by environmental factors.

Core Features and Advantages

  1. Robust IP67 Design
    • The sensor is enclosed in a hermetically sealed aluminum alloy housing, providing protection against water immersion (IPX7) and dust (IPX6).
    • It can operate perfectly in temperatures ranging from -25°C to +75°C, making it suitable for cold storage (-25°C) and outdoor use.
  2. Dual - Function Operation
    • Blanking Mode: Installed in door gaps, it detects successive beam blockages during door closure and triggers an immediate door reversal.
    • Normal Mode: Mounted on the sides of doors, it offers full - width protection and activates an instant door - open signal when an obstruction is detected.
  3. Sophisticated Detection Technology
    • With a 100mm beam spacing, it can detect objects as small as 50mm with high precision.
    • It is CE certified and complies with EN 61496 safety standards for machinery.
  4. Energy - Efficient Performance
    • With low power consumption (<=4W), it helps reduce long - term operational costs and environmental impact.

Wide - Ranging Applications

  • Industrial Door Systems
    • Rolling Doors: Prevents entrapment in warehouses and factories.
    • High - Speed Doors: Stops sudden closure in cold storage and pharmaceutical plants.
    • Fire Doors: Ensures safe automatic closure without endangering personnel.
    • Cold Storage Doors: Resists condensation and fog in sub - zero environments.
  • Automation and Material Handling
    • Conveyor Systems: Protects operators from moving machinery.
    • Robotic Arms: Triggers emergency stops in hazardous areas.
    • AGVs: Improves navigation safety in dynamic warehouse environments.
  • Heavy Machinery and Equipment
    • Packaging Lines: Prevents jams and operator injuries.
    • Industrial Gates: Safeguards vehicle and pedestrian traffic in loading docks.

Technical Details

  • Product Type: Safety Light Curtain Sensor
  • Waterproof Rating: IP67 (Dustproof & Water - Resistant)
  • Working Voltage: 24V DC ±10%
  • Material: High - Impact Aluminum Alloy
  • Mounting Options: Adjustable Brackets (Vertical/Horizontal)
  • Safety Standards: CE, EN 61496 - 1/-2
  • Warranty: 2 - Year Comprehensive Coverage

Why Choose JUTAI Comm Co., Ltd.?

  • Over 10 Years of Expertise: A leader in the sensor industry, providing innovative safety solutions.
  • Customization Services: Free site audits and customized configurations for optimal performance.
  • Global Support: 24/7 technical assistance and a worldwide distribution network.
  • Proven Reliability: Trusted by Fortune 500 companies and ISO - certified facilities.
