Wholesale Factory Price Photocell IR-20 for Automatic Door Barrier Gate Safety

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	IR-20
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

IP Rating	IP65	HS Code	8531901000
Package Size	12.00cm * 11.70cm * 4.30cm	Package Gross Weight	0.150kg
Detection Type	Photon Detector	Type	Wired
Highlight	wired photocell sensor with 30m detection , anti strong light interference photocell , photocell sensor for outdoor detection

Leave a Message

Product Description

JUTAI IR-20M Infrared Photocell - Reliable 20M Security Sensing Solution

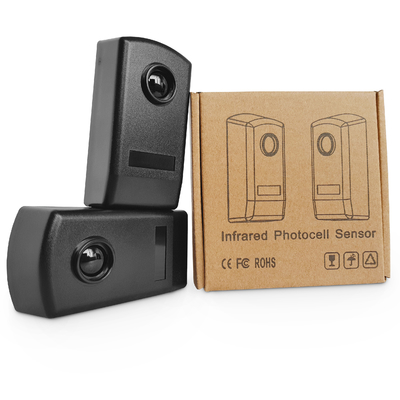

Wholesale Factory Price Photocell IR-20 for Automatic Door Barrier Gate Safety 0

JUTAI Wired Photocell IR-20M Product Description

As a reliable "Security Partner" for both indoor and outdoor scenarios, the JUTAI Wired Photocell IR-20M is specifically designed to enhance safety in barrier gates, access control systems, and perimeter security setups. It operates by emitting and detecting infrared rays—when the ray is interrupted, the receiver triggers a relay response, ensuring timely security alerts.

Featuring flexible installation options (suitable for walls with screw anchors and metal surfaces with self-tapping screws) and easy alignment (red LED on the receiver stays off when aligned, turns on when the ray is interrupted), this photocell simplifies setup while maintaining stable performance. It supports a wide power supply range, making it adaptable to diverse security environments.

Technical Specifications

Parameter	Specification
Power Supply	12/24 (VAC/VDC)
Maximum Detection Range	20 Meters (indoor or outdoor)
Operating Temperature	-10 ~ +60°C
Max. TX Working Current	25 mA
Max. RX Working Current	35 mA
Max. Relay Contact	Max 500 mA @ 48 Vac/dc
IP Rating	IP55
Port Line Definition	4=Common; 5=N.C. (LED off); 6=N.O. (LED off)

For connection, power the photocell with 12-24V DC/AC and follow the wiring guidelines for the transmitter (TX) and receiver (RX). After installation, interrupt the infrared ray several times to verify the relay response, then secure the front panel with provided screws for complete protection.

Wholesale Factory Price Photocell IR-20 for Automatic Door Barrier Gate Safety 1

Technical parameter

Feature	Specification
Power Supply	12-24VAC/VDC
Max. Range	20 Meters
Operating Temperature	-10 to +60°C
Max. TX Working Current	25mA
Max. RX Working Current	35mA
Max. Relay Contact	500mA at 48VAC/VDC
IP Rating	IP65 with rubber
