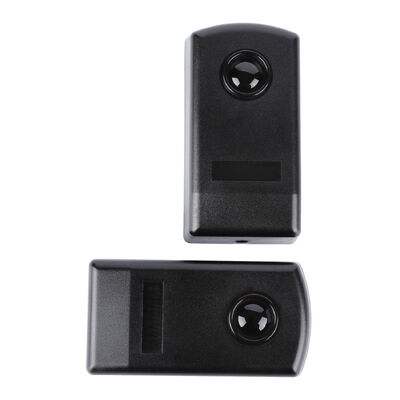

High Reliability IR-20 Photocell – Engineered for Harsh Outdoor Environments (UAE High-Temp Optimized)

Product Overview

Core Features & Advantages (UAE Environment Focused)

1. High-Temp Resilience & UV Protection (UAE-Optimized)

• Extreme Temperature Tolerance: Operates reliably from -10°C to +60°C, perfectly adapting to UAE’s scorching summers (where outdoor temperatures frequently exceed 45°C) and mild winters. The heat-dissipating housing design prevents internal component overheating, ensuring no signal degradation in midday heat.
• UV & Weather Resistance: The housing is infused with UV-stabilizers to resist UAE’s intense sunlight—preventing material brittleness, discoloration, or structural damage over years of outdoor exposure.
• IP55 Dust & Water Protection: Fully shields against fine desert sand, dust storms, and occasional light rain, eliminating sensor downtime caused by UAE’s dusty conditions.

2. Stable Detection in Harsh UAE Environments

• 20-Meter Reliable Range: Delivers a focused, consistent infrared beam over 20 meters (indoor/outdoor), covering wide gaps in villa fences, commercial gate openings, or industrial perimeters—even in dusty or hazy UAE air.
• Anti-Interference Technology: Optimized optical filtering minimizes false triggers from UAE’s intense ambient light (direct sunlight, reflective surfaces) and dust particles, ensuring trustworthy performance without unnecessary alarms.
• Intuitive Status Indicator: The RX’s bright red LED (off when beam is clear, on when interrupted) allows quick alignment and troubleshooting—even in bright UAE sunlight—simplifying maintenance for security technicians.

3. Industrial-Grade Reliability & Easy Integration

• Versatile Power Compatibility: Operates on 12-24V AC/DC (non-polarized), seamlessly integrating with UAE’s common security panels, automatic gate controllers, and access systems—no specialized power supplies required.
• Robust Relay Output: Equipped with Common (COM, terminal 4), Normally Closed (NC, terminal 5), and Normally Open (NO, terminal 6) SPDT relay terminals, ensuring compatibility with all major security hardware used in the UAE.
• Low Power Consumption: TX max operating current ≤25mA and RX max operating current ≤35mA, supporting energy-efficient 24/7 operation—critical for UAE’s energy-conscious facilities.

4. UAE-Suited Installation & Durability

• Dual Mounting Options: Supports wall mounting (3x 5mm drill holes with screw anchors) for villa exteriors or commercial walls, and metal surface mounting (3x 3mm self-tapping screws) for industrial gates or metal fences—adapting to UAE’s diverse building structures.
• Sandproof Wiring Design: The front panel’s tight rubberized seal and cable housing prevent sand ingress into terminals, a key pain point for sensors in UAE’s dusty environments.
• Tamper-Resistant Assembly: Secures with screws to deter unauthorized tampering, a critical feature for UAE’s high-security residential and commercial areas.

Technical Specifications

Typical UAE Applications

• Residential Villa Perimeter Security: Invisible beam barriers for villa fences, garden gates, or pool areas—protecting homes from intruders in UAE’s suburban communities.
• Commercial Building Access Control: Detection for office tower entrances, retail storefronts, or mall parking barriers—ensuring safe, controlled access in high-heat urban environments.
• Industrial Facility Protection: Safety sensors for factory perimeters, warehouse loading docks, or construction site gates—withstanding UAE’s industrial dust and high temperatures.
• Parking Complex Safety: Obstacle detection for automatic garage doors or parking lot barriers—preventing collisions in UAE’s sun-baked parking facilities.
• Hotel & Resort Security: Perimeter protection for hotel villas, beachfront access points, or resort grounds—combining reliability with UV and dust resistance.

UAE-Specific Installation Guide

1. Mounting Preparation: Choose a shaded or semi-shaded location (when possible) to reduce direct sunlight exposure—enhancing long-term durability. For walls, drill 3x 5mm holes and use corrosion-resistant screw anchors (suited for UAE’s concrete structures); for metal surfaces, use 3x 3mm self-tapping screws.
2. Wiring & Sealing: Route cables through the sensor’s sealed housing to prevent sand ingress. Connect 12-24V AC/DC power to TX terminals 1-2 and RX terminals 1-3; wire RX terminals 4 (COM), 5 (NC), 6 (NO) to your security system.
3. Alignment: Adjust TX and RX until the RX’s red LED turns off (stable beam). In dusty UAE conditions, clean the sensor lenses monthly with a dry cloth to maintain detection accuracy.
4. High-Temp Testing: Test the sensor during midday (UAE’s hottest period) to verify relay response—ensure the beam remains stable without false triggers.

Why Choose JUTAI IR-20 for UAE’s Harsh Environments?

• UAE Climate Optimization: Engineered specifically to withstand high heat, intense UV, and dust—outperforming generic sensors that fail in UAE’s extreme conditions.
• Proven Reliability: Industrial-grade components and heat-dissipating design ensure 24/7 operation, critical for UAE’s security-critical applications.
• Local Compatibility: Works with all major security systems used in the UAE, simplifying integration with existing infrastructure.
• Low Maintenance: Dust-resistant design and UV-stabilized housing reduce maintenance frequency—ideal for UAE’s large commercial or industrial facilities.
• Trusted Brand Support: Developed by Shenzhen JUTAI Comm Co., Ltd., with technical support tailored to UAE’s environmental challenges.
