Application

• Can penetrate solar film (V-Kool40)
• Auto tuning function to compensate presence of metal and interference
• Extended reading range from 90 cm to 130 cm
• Bright LED indicators, tuning LED bar
• Firmware upgradable in the field
• IP-65 waterproof housing design
• High-quality power supply with noise filter included
• Loop Inductive function optional
• Anti-rereading function included
• Support local anti-Passback function between 2 reader units
• 26,000 users in max
• 100,000 records can be saved (cycle/lost)
• 64 different time zone groups can be set according to customer different requirements
• CCTV system and image function make the community and property safe
• Suit for Hands-free parking system

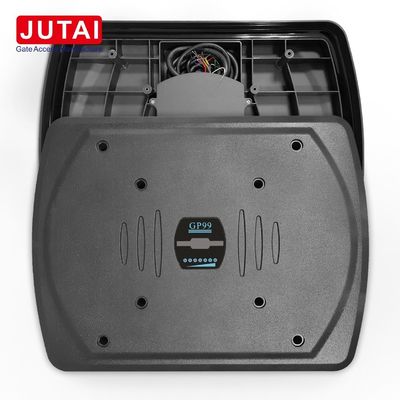

GP99 Main Features

1. High sensitivity and reliable performance
2. Built-in transceiver antenna for maximum performance
3. Maximum effective distance up to 1000mm
4. Less than 100ms decoding time
5. Low power dissipation with single power supply
6. Multiple output format optional
7. Built-in buzzer
8. Potted for environmental protection

Trouble Shooting

When powered up,the Reader take a self-test to ensure the best reading performance with the buzzer beeping continually. when the self-test ends, the buzzer will give out a bug beep and the Reader enter the normal working mode. If the buzzer continue beeping without stop for a long time, please turn off the power and check out environment and power supply to ensure locating the reader in a good working condition. In case of problems the following procedure should be followed:

Failure to finish self-test with the buzzer beeping continually or with a short reading distance

1. Turn off the power to the reader
2. Check the power input connections making sure that they are not reversed
3. Check the power supply complying with specification
4. If the supply has a current limit , set this to 350mA
5. Make sure to install the reader A in a environment without large area conductors nearby a mounting on a conductive surface. In self-test state, do not apply any tags in Reader's functional area
6. Try to change the installment of the Reader 5150 to another place to check if the trouble still exists

Operation

Proximity cards are presented to the front of this ID long distance reader. The beeper sounds when the proximity cards is read and the message is transmitter the Host computer or interface panes.

Indoor/outdoor design

The Reader 5150sealed in a rugged, weatherized epoxy resin enclosure designed to withstand harsh environments as well as provide a high degree of vandal resistance for reliable performance anywhere

Power supply

The Reader reader can be operated over the full range of 11.0~15.0V DC. If the reader power overrun 15V DC is applied,can't be operated, or If AC power is applied,circuit damage can result,12VDC linear power supplies are recommended.

Noise from devices such as switching power supplies, computer monitors, and arc welders can reduce the read range or make the unit inoperable. Keep these devices at least 10 ft away from the reader, With the Reader and power supply wired together, apply power to the reader.

Caution

12V DC linear power supplies are recommended. Failure to provide an adequate current capacity power supply will result in reduced read range or circuit damage.

Read range will be reduced if located on metal surfaces or in the vicinity of metal objects or metal is installed nearby or the affect of switching power supplies, computer monitors, electrical and electronic equipment, motors and generators etc.

125kHz Middle Range EM Proximity Reader for Car Parking with EM Cards

Enhance car access control with this RFID proximity reader. Ideal for car parking management systems, this reader supports EM cards for secure access. Easily integrate with your existing system via Serial Port or Wiegand interface.

Product Description: JUTAI Smart Tag Parking System

Working Principle

• When a vehicle approaches the entry proximity reader loops, the JUTAI smart tag communicates with the reader.
• The reader sends the tag signal data to the controller via the Wiegand interface, allowing the barrier to open if the card ID is valid.
• Upon passing the second loop under the entry barrier, the barrier arm automatically lowers.
• The manager Centre software displays real-time transaction events and enables the export of EXCEL reports.
• At the exit, when the vehicle reaches the exit proximity middle range reader loops, the JUTAI Smart tag communicates with the reader.
• Similar to the entry process, the barrier opens if the card ID is valid, and the barrier arm lowers after the vehicle passes the second loop under the exit barrier.

Experience seamless and efficient parking management with the JUTAI Smart Tag Parking System from Shenzhen Jutai Comm Co., Ltd.

Certificate for 125kHz Middle Range EM Proximity Reader for Car Parking with EM Cards by Shenzhen Jutai Comm Co., Ltd.

About Shenzhen Jutai Comm Co., Ltd.

Shenzhen Jutai Comm Co., Ltd. is a high-tech private enterprise specializing in research & development, production, and sales of security products. We focus on RFID system solutions for door access control, parking management, and elevator control. Our innovative automatic door sensor and gate automation solutions, based on Wireless technology and mobile applications, set us apart in the industry. We also develop and supply 4G and Cloud-based one-stop station center management systems.

At Shenzhen Jutai Comm Co., Ltd., we provide high-quality products, cutting-edge application concepts, complete system solutions, comprehensive technology support, and excellent after-sales service to our customers. Our commitment to continuous innovation and improvement drives us to create safer and more convenient living spaces for all.

Our motto is "Customers' success is our success!" We strive for innovation, excellence, and going beyond expectations in everything we do.

Innovation - Beyond - Excellent!
