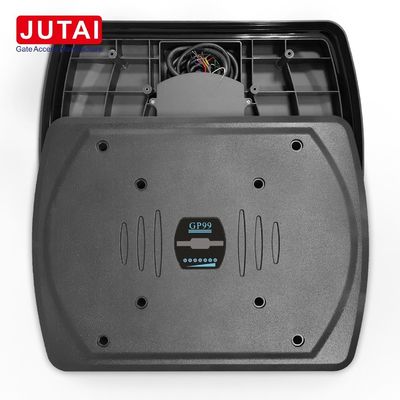

GP-99 EM Proximity Reader with 130cm Reading Distance IP65 Waterproof 125kHz RFID for Car Parking Access Control
Product Details
| Reading Distance | 130cm | Power Supply | DC12V/1A |
|---|---|---|---|
| Working Current | ≤450mA | Baud Rate | 9600, N, 8, 1 |
| Working Frequency | 125KHz | Relative Humidity | ≤90% |
| Output Mode | Wiegand 26/34 | Waterproof | IP65 |
| Cover Material | ABS+PC, UV Protection | Specification | 50.3*46.8*10.6cm (Packing Size) |
| Card Type | EM | Interface | Serial Port, Wiegand |
| Highlight | GP-99 EM Cards,1.5m Middle Range Proximity Reader,Car Parking Access Control System EM Cards |
||
Product Description
GP-99 EM Cards 1.5m Middle Range Proximity Reader For Car Parking Access Control System
Shenzhen JUTAI GP99 is a 125kHz RFID Long Range proximity reader designed for extended range access control applications. With a reading range of 90cm to 130cm, this compact reader can effectively penetrate solar film, allowing for seamless card reading from inside vehicles without window winding. Powered by an excellent power supply, the GP99 is ideal for access control, car parking, and through-wall reading applications.
Technical Specifications
| Power Requirement | +12V DC (linear power supplies are recommended) |
|---|---|
| Interface | Wiegand 26 / Wiegand 34 / RS232 / RS485 or other optional |
| Typical Maximum Read Range | Range up to 1000mm even more longer in ideal conditions |
| Frequency | 125kHz |
| Transponder | Read Only |
| Audio/visual Indication | Buzzer output |
| Operating Temperature | -20℃~+70℃ |
| Color | Black |
Key Applications
- Can penetrate solar film (V-Kool40)
- Auto tuning function to compensate presence of metal and interference
- Extended reading range from 90 cm to 130 cm
- Bright LED indicators, tuning LED bar
- Firmware upgradable in the field
- IP-65 waterproof housing design
- High-quality power supply with noise filter included
- Loop Inductive function optional
- Anti-rereading function included
- Support local anti-Passback function between 2 reader units
- 26,000 users in max
- 100,000 records can be saved (cycle/lost)
- 64 different time zone groups can be set according to customer different requirements
- CCTV system and image function make the community and property safe
- Suit for Hands-free parking system
Main Features
- High sensitivity and reliable performance
- Built-in transceiver antenna for maximum performance
- Maximum effective distance up to 1000mm
- Less than 100ms decoding time
- Low power dissipation with single power supply
- Multiple output format optional
- Built-in buzzer
- Potted for environmental protection
Operation & Installation
When powered up, the Reader takes a self-test to ensure the best reading performance with the buzzer beeping continually. When the self-test ends, the buzzer will give out a big beep and the Reader enters normal working mode.
Proximity cards are presented to the front of this ID long distance reader. The beeper sounds when the proximity cards is read and the message is transmitted to the Host computer or interface panels.
The Reader is sealed in a rugged, weatherized epoxy resin enclosure designed to withstand harsh environments as well as provide a high degree of vandal resistance for reliable performance anywhere.
Power Supply Requirements
The Reader can be operated over the full range of 11.0~15.0V DC. If the reader power exceeds 15V DC, it cannot be operated. If AC power is applied, circuit damage can result. 12VDC linear power supplies are recommended.
Noise from devices such as switching power supplies, computer monitors, and arc welders can reduce the read range or make the unit inoperable. Keep these devices at least 10 ft away from the reader.
Product Images
Working Principle - JUTAI Smart Tag Parking System
Entry Process: When a vehicle approaches the entry proximity reader loops, the JUTAI smart tag communicates with the reader. The reader sends the tag signal data to the controller via the Wiegand interface, allowing the barrier to open if the card ID is valid. Upon passing the second loop under the entry barrier, the barrier arm automatically lowers.
Exit Process: At the exit, when the vehicle reaches the exit proximity middle range reader loops, the JUTAI Smart tag communicates with the reader. Similar to the entry process, the barrier opens if the card ID is valid, and the barrier arm lowers after the vehicle passes the second loop under the exit barrier.
The manager Centre software displays real-time transaction events and enables the export of EXCEL reports.
