Reflective Infrared Sensor IP65 Relay Output 7m Detection Range For Door Safety
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | IRR-7R | Material | ABS+PC |
|---|---|---|---|
| Feature | Low Temperature Resistant | IP Rating | IP65 |
| Customized | Customized | Receiver | 12 - 24V AC 12 - 30V DC |
| Operating Temperature | -20 To 60 ℃ | Sensing Range | 6.5-7m |
| Comsuption | ≤11mA | Output Status | No&Nc |
| Specification | 1unit Package 14*9*5.5cm | HS Code | 9031809090 |
| Highlight | reflective infrared sensor ip65,ip65 outdoor infrared sensor,door safety outdoor infrared sensor |
||
Product Description

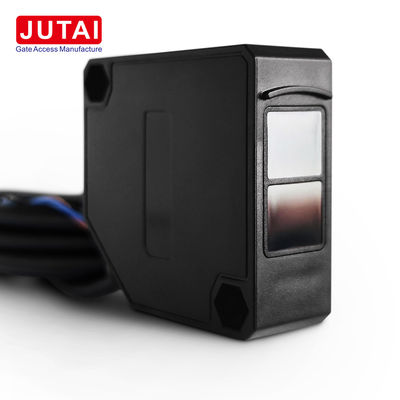

Reflective Infrared Sensor IP65 Relay Output 7m Detection Range for Door Safety
Product Overview
Introduction
Retro-reflective sensors are advanced photoelectric sensors featuring an integrated emitter and receiver. The light emitted is reflected back to the receiver using a reflector. When the light path is interrupted, the sensor's output signal changes. These sensors, specifically designed for detecting transparent objects, boast impressive sensing ranges up to 7 meters with the IRR-7M reflector, all within a compact housing. With a wide array of accessories, they are easily integrated into various systems.
Benefits
The IRR-7M significantly reduces the installation and alignment time of the sensor to mere seconds, making it perfect for logistics applications. It ensures rapid and flexible setup, reliable operation, and cost-efficiency.
Features
| Feature | Description |
|---|---|
| Extended Sensing Range | Capable of detecting objects up to 7 meters away, suitable for diverse applications |
| Minimal Object Restrictions | Can detect numerous materials such as glass, plastic, wood, and liquids |
| Rapid Response | Operates at light speed with no mechanical components, providing extremely fast response times |
| High Precision | Designed with a small spot beam and unique optical system for accurate detection of very small objects |
| Non-contact Operation | Detects objects without physical contact, minimizing damage risk and extending the sensor's lifespan |
| Simple Adjustment | Models that emit visible light make beam alignment straightforward |
Applications
| Application | Description |
|---|---|
| Logistics | Ideal for storage and conveyor systems, particularly pallet detection |
| Machine Manufacturing | Used in packaging, handling, wood processing, and paper industries |
| Automotive | Suitable for various manufacturing and detection processes in the automotive sector |
| Automated Parking Systems | Provides efficient solutions for parking management |
| Doors and Gates | Perfect for automatic door and gate control systems |
| Distribution Centers | Widely utilized in distribution centers and warehouses |
Product Advantages
- Extended Sensing Range: Detects transparent objects at distances up to 7 meters.
- Quick and Easy Installation: The IRR-7M reflector simplifies installation and alignment to a matter of seconds.
- High Reliability: Fast response times and non-contact operation ensure long-term stability.
- Versatility: Effective for detecting various materials, not limited by the object's material.
These retro-reflective sensors, with their robust features and diverse applications, offer dependable and efficient solutions for logistics, manufacturing, automotive, and automated systems.
| Parameter | Value |
|---|---|
| Sensing Mode | Retro-reflective |
| Sensing Distance | 7 meters |
| Sensing Object | Opaque object, minimum 75mm |
| Standard Target | Reflector |
| Response Time | 53ms |
| Supply Voltage | DC12-24V (10-30V DC), ripple (p-p): 10% max |
| Output Type | NPN output |
| Output Status | Normally Open (N.O.) |
| Consumption | ≤20mA |
| Load Current | 200mA |
| Voltage Drop | ≤1.8V (200mA) |
| LED Display | Red LED |
| Sensitivity Adjustment | Non-adjustable |
| Circuit Protection | Short circuit protection, reversed polarity protection, overload protection |
| Operating Temperature | -10°C to +55°C |
| Insulation Resistance | ≥50MQ |
| Anti-impact | 10-55Hz (amplitude 1.5mm), X,Y,Z direction, each 10 times |
| Protection | IP67 |
| Connection | Cable: ø4.8mm, 2M |
| Housing Material | PBT |
| Accessories | Mounting bracket: 1pcs; Reflector: 1pcs |
| Product Size | 50*50*18mm |
Sure, here's the technical parameter information organized into a table:
| Parameter | Value |
|---|---|
| Sensing Mode | Retro-reflective |
| Sensing Distance | 7 meters |
| Sensing Object | Opaque object, minimum 75mm |
| Standard Target | Reflector |
| Response Time | 53ms |
| Supply Voltage | DC12-24V (10-30V DC), ripple (p-p): 10% max |
| Output Type | NPN output |
| Output Status | Normally Open (N.O.) |
| Consumption | ≤20mA |
| Load Current | 200mA |
| Voltage Drop | ≤1.8V (200mA) |
| LED Display | Red LED |
| Sensitivity Adjustment | Non-adjustable |
| Circuit Protection | Short circuit protection, reversed polarity protection, overload protection |
| Operating Temperature | -10°C to +55°C |
| Insulation Resistance | ≥50MQ |
| Anti-impact | 10-55Hz (amplitude 1.5mm), X,Y,Z direction, each 10 times |
| Protection | IP67 |
| Connection | Cable: ø4.8mm, 2M |
| Housing Material | PBT |
| Accessories | Mounting bracket: 1pcs; Reflector: 1pcs |
| Product Size | 505018cm |
