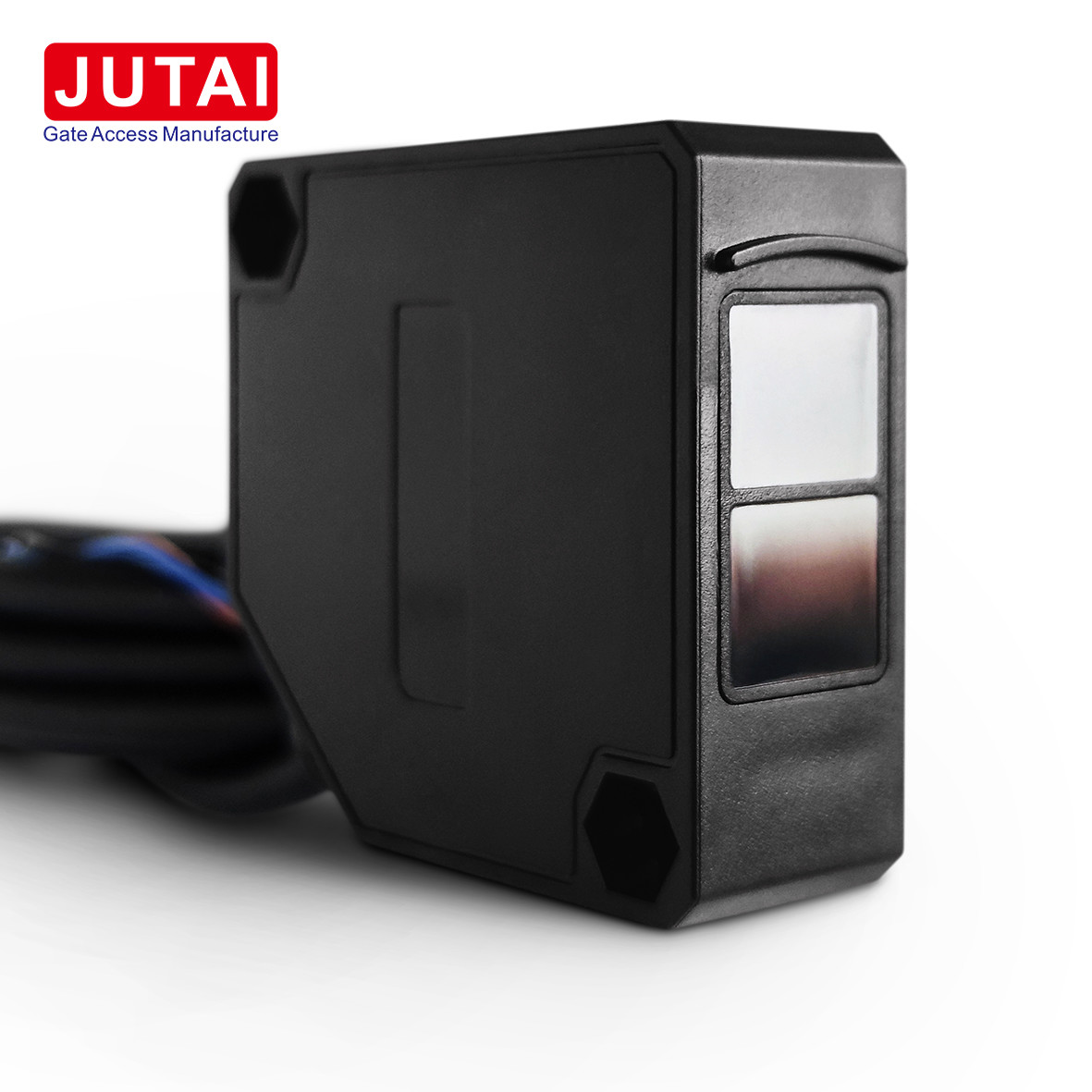

Waterproof Reflective Infrared Photocell Sensor UV Protection for Parking Barrier Gates
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | IRR-7R | Material | ABS+PC |
|---|---|---|---|
| Feature | Low Temperature Resistant | IP Rating | IP65 |
| Customized | Customized | Receiver | 12 - 24V AC 12 - 30V DC |
| Operating Temperature | -20 To 60 ℃ | Sensing Range | 6.5-7m |
| Comsuption | ≤11mA | Output Status | No&Nc |
| Specification | 1unit Package 14*9*5.5cm | HS Code | 9031809090 |
| Highlight | Parking Barrier Gates Infrared Photocell Sensor,UV Protection Infrared Photocell Sensor,Waterproof Reflective Infrared Photocell Sensor |
||
Product Description
IRR-7R Industrial-Grade Retro-Reflective Safety Sensor - 7m Obstruction Detection with IP67 Protection
Advanced Safety Engineering for Automated Systems
Engineered for mission-critical door safety applications, the IRR-7R retro-reflective infrared sensor deploys synchronized pulse modulation technology to achieve stable 7-meter detection through dust, steam, and variable lighting conditions. Unlike conventional through-beam sensors requiring separate units, our integrated emitter-receiver design with precision reflector alignment reduces installation complexity by 60% while maintaining <1% false trigger rates.
Performance Specifications Table
| Category | Technical Parameters |
|---|---|
| Optical System | 850nm infrared LED with anti-interference pulse coding |
| Detection Accuracy | ±15mm positional tolerance at max range |
| Response Mechanism | NPN transistor output (NO) with <53ms reaction time |
| Environmental Specs | IP67 certified (submersion protection up to 30min @1m depth), -10°C to +55°C operational |
| Electrical Details | 10-30V DC wide voltage input, 200mA load capacity with reverse polarity protection |
| Mechanical Design | Glass-fiber reinforced PBT housing, vibration resistant (IEC 60068-2-6 compliant) |
| Compliance | CE, RoHS, ISO 13849-1 (PLc Category 2) |
Application-Specific Benefits
Commercial Automatic Doors
-
Detects approaching pedestrians (≥75mm opaque objects) 0.5-7m from door plane
-
Prevents accidental closures in shopping malls/hospitals with 98.7% detection reliability
Industrial Loading Docks
-
Maintains detection stability in -10°C freezer rooms to +55°C factory environments
-
Resists mechanical vibration from forklift traffic (10-55Hz endurance certified)
Smart Barrier Systems
-
Compatible with PLC/DCS control systems via relay output (NO/NC configurable)
-
200mA direct load switching eliminates need for external amplifiers
