High Precision Safety Light Curtain Sensor for Automatic Doors and Loading Dock Safety

  • High Precision Safety Light Curtain Sensor for Automatic Doors and Loading Dock Safety
  • High Precision Safety Light Curtain Sensor for Automatic Doors and Loading Dock Safety
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Document CL05-8L User Manual.pdf
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage DC12-24V
Operating Temperature -20~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

IP67 safety light curtain sensor

,

automatic door light curtain

,

loading dock safety sensor
Leave a Message
Product Description



Product Description

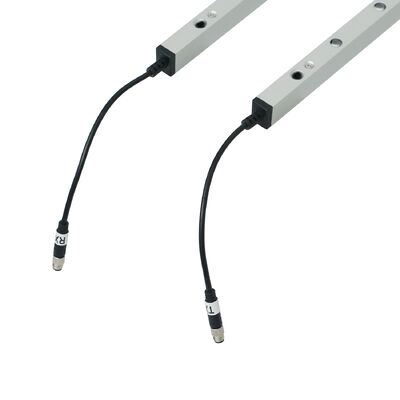

High Precision Safety Light Curtain Sensor for Automatic Doors and Loading Dock Safety 0


High Precision Safety Light Curtain Sensor for Automatic Doors and Loading Dock Safety

The JUTAI CL20-8L High Precision Safety Light Curtain Sensor is a professional protective device engineered to deliver reliable safety detection for automatic doors and loading dock environments. By forming an invisible grid of 8 light beams between its emitter and receiver, it achieves precise intrusion detection—instantly triggering safety responses (such as door reversal or stopping) when people, equipment, or objects interrupt the beams. This ensures comprehensive protection against pinching, crushing, or collision accidents at high-traffic automatic doorways and busy loading docks.
Crafted with an aluminum alloy shell and IP67 waterproof/dustproof protection, the sensor thrives in the harsh conditions of loading docks and industrial facilities—resisting dust, water splashes, and mechanical wear. Its high-precision design and intuitive operation make it an indispensable safety component for warehouses, factories, and logistics centers relying on automatic doors and loading dock operations.

Core Features for Precision & Safety

1. High Precision Detection

Equipped with 8 photocells and a maximum protection height of 1729mm, the sensor covers wide openings of automatic doors and loading docks comprehensively. Its sensitive detection design ensures accurate identification of people and objects, eliminating safety blind spots and minimizing accident risks in fast-paced logistics environments.

2. IP67 Rugged Durability

Sealed aluminum alloy housing achieves IP67 protection rating, withstanding dust accumulation, water immersion, and industrial contaminants. It maintains stable performance in outdoor loading docks, humid warehouses, or dusty factory automatic door areas—ideal for long-term use in demanding conditions.

3. Blanking Mode for Practical Application

Featuring a specialized Blanking function, blocking the first channel won’t trigger safety responses. This mode is optimized for automatic door gaps and loading dock door configurations, where sequential beam blockage during normal door closure is expected—avoiding false alarms while retaining full protection against unintended intrusions.

4. Wide Temperature Adaptability

Operating reliably within a range of -20°C to +60°C, the sensor performs consistently in temperature-variable environments—from cold storage automatic doors to outdoor loading docks exposed to seasonal fluctuations, without compromising detection precision.

5. Rapid Response for Dynamic Scenarios

Tailored to the fast operation of automatic doors and the dynamic activity of loading docks, the sensor responds instantly to beam interruptions. This ensures timely safety triggers, preventing accidents even when personnel or forklifts move quickly near doorways.

6. Intuitive LED Status Monitoring

Clear LED indicators on both emitter and receiver provide real-time operational feedback for quick troubleshooting:
  • Transmitter: Steady blue light (normal operation), fast-flashing red light (voltage irregularity: <9V or >28V).
  • Receiver: Steady red light (beam blocked/intrusion detected), steady blue light (no obstruction), flashing blue light (alignment required after first power-on).

7. Easy Installation & Seamless Integration

Equipped with standard connectors (transmitter: 5-pole M8 male; receiver: 4-pole M8 male) and adjustable mounting brackets, the sensor simplifies installation on automatic door frames and loading dock structures. Color-coded cables (red for DC12-24V positive, black for ground, green for NO/NC output) streamline wiring, ensuring compatibility with most door control systems and loading dock safety setups.

Technical Specifications

Parameter Specification
Working Voltage DC12-24V
Working Current Transmitter <65mA @DC12V; Receiver <20mA @DC12V
Output Configuration NO/NC relay output (configurable)
Protection Rating IP67 (Dustproof and Waterproof)
Housing Material Aluminum Alloy
Operating Range 1-8 meters (transmitter to receiver)
Maximum Protection Height 1729mm
Number of Photocells 8
Cable Length Transmitter 8m; Receiver 4m
Connector Type Transmitter: 5-pole M8 male; Receiver: 4-pole M8 male
Operating Temperature -20°C ~ +60°C
LED Status Indicators Transmitter (blue/red); Receiver (red/blue)

Primary Applications

  • Automatic Doors: Anti-pinch and intrusion protection for industrial automatic doors, roller shutter doors, high-speed doors, and commercial automatic entrances in warehouses, factories, and logistics centers.
  • Loading Docks: Safety monitoring for loading dock doors, preventing personnel or equipment from being caught between closing doors during truck loading/unloading operations.
  • Cold Storage Facilities: Reliable performance in low-temperature environments, safeguarding automatic doors leading to cold storage or freezer areas.
  • Workshop Entrances: Protection for automatic doors between production lines, ensuring safety for personnel moving between factory zones.

Troubleshooting & Usage Guidelines

Fault Symptoms Solutions
Slow Flashing Lights After Power On Emitter and receiver are misaligned; readjust to ensure precise beam alignment (critical for loading dock vibrations or door frame shifts).
Red Light Flashing Fast (Transmitter End) Voltage outside the 9V-28V range; check and stabilize the power supply (common in industrial electrical systems with high load demands).
Light Curtain Normal But No Anti-Pinch Action Wiring error; verify connections (avoid connecting NO/NC to the power supply positive terminal to prevent optical relay damage).
Unable To Enter Blanking Mode 1. Light leakage during door descent causes discontinuous beam blocking. 2. Bottommost beam blocked by dust or loading dock debris. 3. Door/obstruction fails to meet the minimum continuous blocking distance.

Usage Caveats

  • Keep connecting cables away from high-voltage conductors, forklift paths, and loading dock machinery to avoid damage.
  • Regularly wipe the emitter and receiver lenses with a dry, soft cloth to remove dust, debris, or loading dock grime—ensuring consistent detection precision.
  • Do not bend or twist the sensor or cables, and avoid direct sunlight or infrared light sources shining on the receiver (common in loading dock lighting).
  • Ensure the door or obstruction used for Blanking mode meets the minimum continuous blocking distance requirement.
  • Avoid scratching the infrared lenses, as this can impair detection performance.

Why Choose JUTAI CL20-8L Safety Light Curtain Sensor?

  • High Precision Detection: Tailored for the safety needs of automatic doors and loading docks, with reliable identification of people and objects.
  • Rugged Reliability: IP67 protection and aluminum alloy housing withstand the harsh conditions of loading docks and industrial environments.
  • Practical Blanking Mode: Prevents false alarms during normal door operation, balancing safety and operational efficiency.
  • Easy Deployment: Simple installation, intuitive status monitoring, and seamless integration with existing control systems—minimizing downtime.
  • Versatile Adaptability: Wide temperature range and compatibility with various automatic door types make it suitable for diverse loading dock and factory setups.
