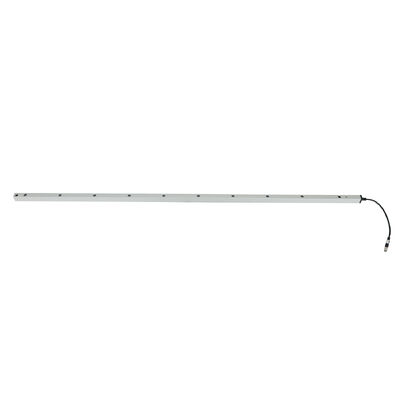

Photoelectric Safety Guard for High Speed Doors with 8-16 Beam Options

  • Photoelectric Safety Guard for High Speed Doors with 8-16 Beam Options
  • Photoelectric Safety Guard for High Speed Doors with 8-16 Beam Options
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Document CL05-8L User Manual.pdf
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage DC12-24V
Operating Temperature -20~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V-24V
Specification 2000*21*15 Mm
Highlight

Photoelectric safety guard for high speed doors

,

IP67 light curtain with 8-16 beams

,

High speed door safety beam curtain
Leave a Message
Product Description



Product Description


Photoelectric Safety Guard for High Speed Doors with 8-16 Beam Options 0


Photoelectric Safety Guard for High Speed Doors with 8-16 Beam Options

The JUTAI CL Series Photoelectric Safety Guard is a specialized protective solution engineered for high speed doors, offering flexible 8-beam or 16-beam configurations to match different safety requirements. It forms an invisible light grid between the emitter and receiver, instantly triggering door reversal or stopping when personnel, objects, or equipment intrude—effectively preventing pinching, crushing, or collision accidents in industrial and logistics environments. With IP67 protection and rugged aluminum alloy construction, it delivers reliable performance even in harsh conditions.

Core Specifications (Detailed Parameter Table)

Parameter Specification
Model Series CL05, CL10, CL15, CL20, CL25 (with -8L/16L suffix)
Beam Quantity Options 8 beams / 16 beams
Protection Height 500mm, 1000mm, 1500mm, 2000mm, 2500mm (model dependent)
Working Voltage DC12-24V
Working Current Transmitter: <65mA @DC12V; Receiver: <20mA @DC12V
Output Configuration NO/NC relay output (default NO, configurable to NC); COM terminal included
Protection Rating IP67 (dustproof + waterproof)
Housing Material Aluminum alloy
Operating Range (Emitter to Receiver) 1-8m
Beam Spacing 100mm
Detection Precision Detects objects as small as 50mm
Response Time ≤20ms
Cable Length Transmitter: 8m; Receiver: 4m
Connector Type 5-pole M8 male connector (transmitter/receiver)
Operating Temperature -20°C ~ +60°C
Key Function High speed door anti-pinch protection + Blanking Mode (anti-false alarm)
LED Status Indicators Transmitter: Steady blue (normal); Fast-flashing red (voltage <9V or >28V)

Receiver: Steady red (blocked); Steady blue (unblocked); Flashing blue (misalignment)
Installation Hole Dimensions (Unit: mm) 14, 29, 75, 80, 175, 19.7, 21.4, 259

Key Advantages (Clear Points)

1. 8-16 Beam Flexible Configuration

  • 8-beam option: Balances safety and cost for standard high speed door openings, covering basic anti-pinch needs.
  • 16-beam option: Delivers high-precision detection with denser light grid, suitable for large doors or high-risk areas requiring enhanced protection.

2. High Speed Door Compatibility

  • ≤20ms rapid response time matches the fast operation of high speed doors, eliminating safety lags.
  • Blanking Mode adapts to door gap structures, avoiding false alarms from sequential beam blocking during normal closure.

3. Rugged & Environmentally Resilient

  • IP67 protection withstands dust, water splashes, and temporary immersion, suitable for outdoor or dusty industrial settings.
  • Wide temperature range ensures stable operation in cold storage, workshops, or outdoor high speed doors.

4. Easy Installation & Integration

  • Color-coded wiring simplifies connection to high speed door control systems (details in Wiring Guide).
  • Adjustable mounting brackets fit various door frame structures; 8m/4m cables allow flexible positioning.
  • Intuitive LED indicators enable quick status checks and troubleshooting.

Wiring Guide (Standardized Table)

Component Wire Color Function Notes
Transmitter Red DC12-24V Positive Power Supply Connect to stable power supply; avoid overvoltage/undervoltage
Transmitter Black Ground (GND) Connect to power negative terminal; ensure reliable grounding
Transmitter Green/Yellow/White Reserve No connection required for basic use
Receiver Red DC12-24V Positive Power Supply Same as transmitter power connection
Receiver Black Ground (GND) Shared ground with transmitter
Receiver Green NO/NC Output (Default NO) Connect to door control system’s safety signal input
Receiver Yellow Configurable NC Activate via Blanking Mode setup
Receiver White COM (Common Terminal) Matching terminal for NO/NC output

Critical Warning

  • Do NOT connect NO/NC terminals to the power supply positive terminal—this will damage the optical relay.

Blanking Mode Activation Steps

  1. Complete wiring and power on the device.
  2. Within 1 minute of power-on, touch the receiver’s Green wire to its GND (Black wire) five times.
  3. Receiver’s Red light blinks to confirm activation: Yellow wire switches to NC mode, Blanking Mode enabled.

Model Configuration & Application Scenarios (Table)

Model Beam Quantity Protection Height Target Applications
CL05-8L/16L 8/16 500mm Small high speed doors, access doors in logistics centers
CL10-8L/16L 8/16 1000mm Medium-sized high speed doors, retail back entrance doors
CL15-8L/16L 8/16 1500mm Warehouse high speed doors, production line access doors
CL20-8L/16L 8/16 2000mm Large industrial high speed doors, cold storage fast doors
CL25-8L/16L 8/16 2500mm Extra-large high speed doors, loading dock doors

Troubleshooting (Problem-Solution Table)

Fault Symptoms Possible Causes Solutions
Receiver’s blue light flashes (power-on) Emitter and receiver misalignment Readjust positions to ensure parallel alignment
Transmitter’s red light flashes fast Power supply voltage <9V or >28V Stabilize power supply to meet DC12-24V requirements
Safety guard works, but door has no anti-pinch action Wiring error Recheck wiring against the guide; ensure correct connection to door control system
Unable to enter Blanking Mode 1. Light leakage during door descent

2. Bottommost beam blocked by debris

3. Door/obstruction fails to meet minimum continuous blocking distance		 1. Fix door sealing to prevent light leakage

2. Clear debris blocking the beam

3. Adjust door/obstruction to meet distance requirements

Usage & Maintenance Caveats (Key Reminders)

  • Keep cables away from high-voltage conductors and door machinery to avoid damage or interference.
  • Regularly wipe emitter/receiver lenses with a dry, soft cloth to remove dust or condensation.
  • Do not bend, twist, or pull cables forcefully; avoid scratching infrared lenses.
  • Prevent direct sunlight or infrared light sources from shining on the receiver (avoids false triggers).
  • Periodically test the anti-pinch and Blanking Mode functions to ensure normal operation.
For technical support, customization, or bulk inquiries, visit our official website: https://www.accesssecuritysolution.com/
