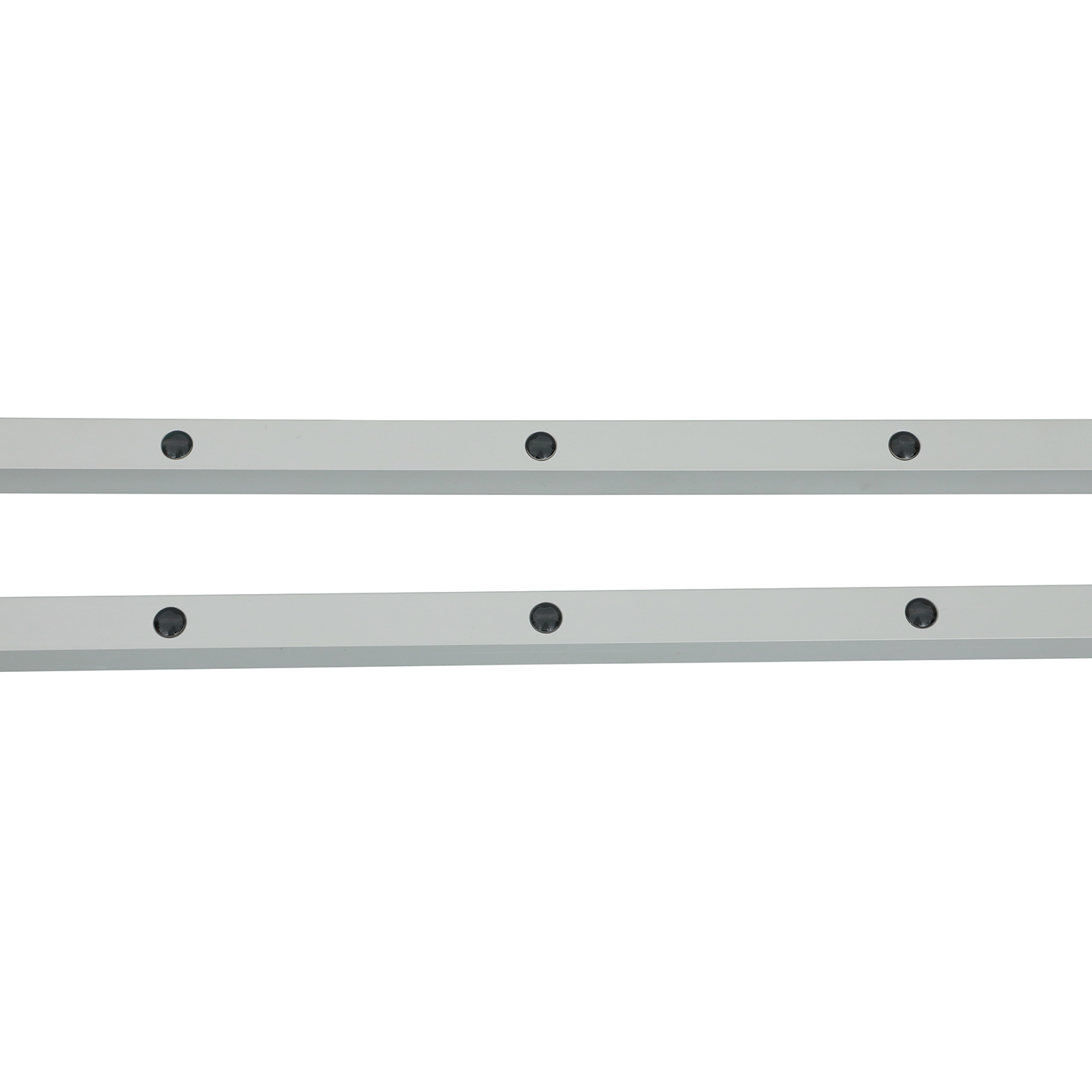

Infrared Protection Barrier for Industrial Doors with Adjustable 500-2500mm Length

  • Infrared Protection Barrier for Industrial Doors with Adjustable 500-2500mm Length
  • Infrared Protection Barrier for Industrial Doors with Adjustable 500-2500mm Length
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Document CL05-8L User Manual.pdf
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage DC12-24V
Operating Temperature -20~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V-24V
Specification 2000*21*15 Mm
Highlight

Infrared Protection Barrier for Industrial Doors

,

Adjustable 500-2500mm Infrared Protection Barrier
Leave a Message
Product Description



Product Description

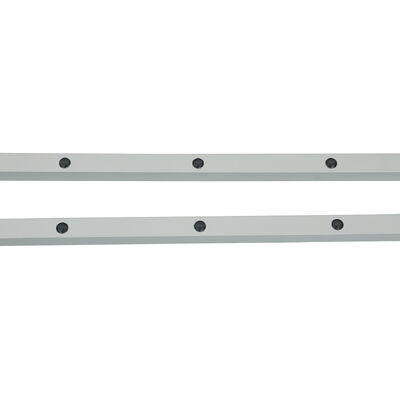

Infrared Protection Barrier for Industrial Doors with Adjustable 500-2500mm Length 0

Infrared Protection Barrier for Industrial Doors with Adjustable 500-2500mm Length

The JUTAI CL Series Infrared Protection Barrier is a professional safety solution tailored for industrial doors, offering adjustable lengths from 500mm to 2500mm to fit diverse door sizes. It forms an invisible light grid between the emitter and receiver, instantly triggering door reversal or stopping when personnel/objects intrude—effectively preventing pinching accidents in industrial environments. With IP67 protection and aluminum alloy housing, it delivers reliable performance in harsh conditions.

Core Specifications (Parameter Table)

Parameter Specification
Model Series CL05, CL10, CL15, CL20, CL25 (with -8L suffix)
Adjustable Length Range 500mm, 1000mm, 1500mm, 2000mm, 2500mm (model dependent)
Number of Photocells 8 beams
Maximum Protection Height 1729mm (CL20-8L reference)
Working Voltage DC12-24V
Working Current Transmitter: <65mA @DC12V; Receiver: <20mA @DC12V
Output Configuration NO/NC relay output (default NO, configurable to NC); COM terminal included
Protection Rating IP67 (dustproof + waterproof)
Housing Material Aluminum alloy
Operating Range (Emitter to Receiver) 1-8m
Cable Length Transmitter: 8m; Receiver: 4m
Connector Type Transmitter: 5-pole M8 male; Receiver: 4-pole M8 male
Operating Temperature -20°C ~ +60°C
Key Function Industrial door anti-pinch + Blanking Mode (first channel non-trigger)
LED Status Indicators Transmitter: Steady blue (normal); Fast-flashing red (voltage <9V or >28V)

Receiver: Steady red (blocked); Steady blue (unblocked); Flashing blue (misalignment)
Installation Hole Dimensions (Unit: mm) 14, 29, 75, 80, 175, 19.7, 21.4, 259

Key Advantages (Clear Points)

1. 500-2500mm Adjustable Length

  • Multiple length options cover small access doors (500mm) to extra-large industrial doors (2500mm), adapting to diverse industrial door sizes.
  • No additional modifications needed—direct selection of matching models for different door openings.

2. Targeted Industrial Door Protection

  • 8-beam light grid eliminates safety blind spots, detecting hands, limbs, or objects to prevent pinching/crushing.
  • Blanking Mode adapts to industrial door gaps, avoiding false alarms during normal closure.

3. Rugged & Environmentally Resilient

  • IP67 protection withstands dust, water splashes, and harsh industrial conditions, suitable for indoor/outdoor use.
  • Aluminum alloy housing resists corrosion and mechanical wear, ensuring long-term reliability.

4. Easy Installation & Operation

  • Color-coded wiring simplifies connection to industrial door control systems (details in Wiring Guide).
  • Adjustable mounting brackets fit various door frames; intuitive LED indicators enable quick troubleshooting.

Wiring Guide (Standardized Table)

Component Wire Color Function Notes
Transmitter Red DC12-24V Positive Power Supply Connect to stable power supply
Transmitter Black Ground (GND) Connect to power negative terminal
Transmitter Green/Yellow/White Reserve No connection required for basic use
Receiver Red DC12-24V Positive Power Supply Same as transmitter power
Receiver Black Ground (GND) Shared ground with transmitter
Receiver Green NO/NC Output (Default NO) Connect to door control system’s safety signal input
Receiver Yellow Configurable NC Activate via Blanking Mode setup
Receiver White COM (Common Terminal) Matching terminal for NO/NC output

Critical Warning

  • Do NOT connect NO/NC terminals to power supply positive—this will damage the optical relay.

Blanking Mode Activation Steps

  1. Complete wiring and power on the device.
  2. Within 1 minute of power-on, touch the receiver’s Green wire to its GND (Black wire) five times.
  3. Receiver’s Red light blinks to confirm activation: Yellow wire switches to NC mode, Blanking Mode enabled.

Model & Length Matching (Table)

Model Length Target Industrial Door Types
CL05-8L 500mm Small access doors, utility doors
CL10-8L 1000mm Medium roller shutter doors, garage doors
CL15-8L 1500mm Warehouse sectional doors, logistics center doors
CL20-8L 2000mm Large industrial fast doors, cold storage doors
CL25-8L 2500mm Extra-large loading dock doors, heavy-duty industrial doors

Troubleshooting (Problem-Solution Table)

Fault Symptoms Solutions
Receiver’s blue light flashes (power-on) Realign emitter and receiver for parallel alignment
Transmitter’s red light flashes fast Stabilize power supply to DC12-24V (avoid <9V or >28V)
No anti-pinch action (device normal) Recheck wiring against the guide to fix connection errors
Unable to enter Blanking Mode 1. Fix door sealing to prevent light leakage

2. Clear debris blocking the bottommost beam

3. Ensure door/obstruction meets minimum continuous blocking distance

Usage & Maintenance Caveats (Key Reminders)

  • Keep cables away from high-voltage conductors and door machinery to avoid damage.
  • Regularly wipe emitter/receiver lenses with a dry, soft cloth to remove dust/dirt.
  • Do not bend/twist the device or cables; avoid scratching infrared lenses.
  • Prevent direct sunlight or infrared light sources from shining on the receiver.
  • Ensure Blanking Mode objects meet the minimum continuous blocking distance requirement.
For technical support or bulk inquiries, visit: https://www.accesssecuritysolution.com/
