Industrial LED Display Driver with RS485 Ethernet MQTT Voice and Relay Control

Place of Origin China
Brand Name JUTAI
Model Number NED200
Document NED200 Multi functional LED...er.pdf
Minimum Order Quantity 1
Price Negotiation
Packaging Details Carton
Delivery Time 7 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 1000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
LED Display Interface HUB75 & HUB08 (Expandable To HUB12) Controlled Display Lines 4 Lines Independent
Supported Languages 100+ Languages QR Code Display Modes Full-screen (52 Chars) & 3-line (77 Chars)
Communication Protocols RS485, TCP/IP (Ethernet), MQTT Relay Output Channels 2 Channels (250VAC/10A)
Voice Storage Capacity Up To 256 Files (8MB) Remote Upgrade Support OTA (Over-The-Air) Via TCP/Browser
Operating Temperature -40°C To +85°C Power Supply DC 12V (with Reverse Connection Protection)
Highlight

Voice and Relay Control Display Driver

,

Industrial LED Display Driver

,

RS485 Ethernet MQTT Display Driver

Leave a Message
Product Description

Industrial LED Display Driver with RS485 Ethernet MQTT Voice and Relay Control 0

Industrial LED Display Driver with RS485 Ethernet MQTT Voice and Relay Control

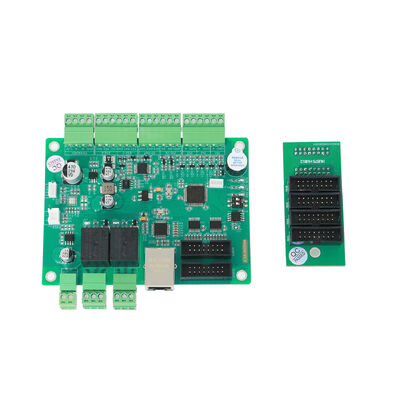

The JUTAI NED200 Industrial LED Display Driver is a high-performance integrated control core tailored for industrial and commercial intelligent scenarios. It integrates multi-protocol communication (RS485/Ethernet/MQTT), LED display control, voice broadcast, and relay linkage, breaking the silo of single-function devices. With rugged industrial-grade design, rich expansion interfaces, and standardized operation logic, it serves as a reliable "central hub" for information transmission and multi-device collaboration—ideal for parking lots, factories, commercial complexes, scenic areas, and smart parks.

Core Technical Parameters

Category Key Parameters Specification
Power & Physical Operating Voltage DC12V (with reverse connection protection)

Operating Current 2A MAX

Operating Temperature -40°C ~ +85°C (relative humidity <80%, no condensation)

Dimensions (LWH) 115mm × 85mm × 15mm

Mounting Hole Spacing 105mm × 75mm
Display Control LED Interfaces 1x HUB75 (supports 32-scan modules), 1x HUB08; expandable to 4x HUB12 via expansion board (HUB75 and HUB08 cannot be used simultaneously)

Display Capacity 4-line independent control, max 80 bytes per line

Language Support Over 100 global languages (Simplified Chinese, Traditional Chinese, English, Thai, Korean, Arabic, etc.)

Docking Encoding GBK, UTF8, UNICODE (optional, cannot be supported simultaneously)

Time Display Real-time time overlay, customizable format (year/month/day separators)
Multi-Protocol Communication Wired Interfaces 1x Ethernet (10/100M adaptive, isolated), 2x RS232, 1x RS485, 1x TTL

Supported Protocols RS485 (baud rate 4800-115200bps), TCP, MQTT (command control)

Special Interface 1x Wiegand 26/34 adaptive (for card readers/biometric scanners)
Voice & Interactive Functions Voice Broadcast 8MB storage (up to 256 voice files), ID call mode, sequential/immediate play

QR Code Display Full-screen mode (52 chars, 2-5m scanning distance); 3-line mode (77 chars, 0.5-2m scanning distance)
Peripheral Linkage Relay Output 2 channels, dry contact isolated (independent COM/NO/NC), load capacity: 250VAC 10A / 30VDC 10A

IO Input 2 channels, non-isolated, signal voltage range: 0-5V (supports dry contact signals)

IO Output (OC) 2 channels, non-isolated, max load: 12V/0.2A (with overcurrent protection)
Expansion & Reliability Auxiliary Power Output Built-in 12V to 5V circuit, max continuous current 1.2A (for scanners, card readers, LED modules)

Remote Upgrade Supports OTA upgrade via TCP tool or browser; optional cloud upgrade

Unique Identification Each board has a unique global ID for source identification and access control

Stability Features Parameters stored in flash memory (not lost after power failure); 50-second automatic refresh (avoidable via heartbeat commands); ESD/pulse protection for communication ports

Key Functional Advantages

1. Multi-Protocol Communication for Universal Integration

  • Rich wired interfaces: Ethernet for LAN long-distance connection, RS485 for industrial on-site communication (100m range), RS232 for legacy device docking, and TTL for short-distance linkage.
  • IoT & cloud compatibility: Supports MQTT protocol, enabling seamless integration into cloud management platforms and IoT systems for remote monitoring and control.
  • Plug-and-play adaptation: Quickly connects to existing management systems (parking lots, workshops, malls) without modifying hardware architecture, reducing transformation costs.

2. Industrial-Grade Relay & IO Linkage

  • High-load relay control: 2 industrial-grade relays can directly drive barriers, lights, equipment power supplies, and other devices, realizing automatic scenario linkage (e.g., door opening after QR code scanning).
  • IO status monitoring: Reads dry contact signals from sensors, buttons, or switches, triggering preset actions (e.g., voice alarms, relay cutoff) when abnormal events occur.
  • Safe and stable: Relays feature isolated output, with overcurrent protection for IO interfaces, adapting to harsh industrial environments.

3. Voice Broadcast & Interactive QR Code

  • High-capacity voice storage: 8MB memory supports up to 256 voice files, with ID call mode for flexible playback (sequential/immediate play) of welcome messages, safety alerts, or operation confirmations.
  • Dual-mode QR code interaction: Full-screen QR code for long-distance scanning (e.g., parking payment), 3-line QR code with text description for short-distance interaction (e.g., scenic spot guides), facilitating "screen-person" quick connection.
  • On-site voice updates: Supports on-site voice file upgrades via tools, adapting to dynamic scenario needs without replacing hardware.

4. Flexible LED Display Control

  • 4-line independent management: Each line can display custom text, time, or notifications separately, meeting simultaneous transmission of multi-type information (e.g., navigation + promotions + time in malls).
  • Global language support: Built-in font library for over 100 languages, adapting to cross-regional and multi-ethnic application scenarios without additional font configuration.
  • Expandable display interfaces: Compatible with HUB75/HUB08 LED modules, expandable to 4 HUB12 interfaces via expansion boards, covering most mainstream LED display specifications.

5. Industrial-Grade Reliability & Easy Use

  • Extreme environment adaptation: Operates stably in -40°C ~ +85°C temperature range, suitable for outdoor or industrial workshops with large temperature fluctuations.
  • Low operation threshold: All functions are controlled via standardized protocol commands, no complex programming required—technical teams can master it quickly.
  • Minimal maintenance: No wearing parts; daily maintenance only requires checking communication lines and interfaces, reducing operation and maintenance workload.

Application Scenarios

  • Industrial Workshops: Displays production data, safety guidelines, and equipment status in multi-language; IO interfaces detect equipment abnormalities, triggering voice alarms and cutting off power via relays to prevent failure expansion.
  • Smart Parking Systems: Displays real-time parking availability and full-screen payment QR codes; relays control barriers to open automatically after payment, with voice broadcasts confirming "payment successful."
  • Commercial Complexes: 4-line display for floor navigation, brand promotions, and real-time time; MQTT protocol enables remote content updates; QR codes link to coupons or membership registration.
  • Smart Parks & Scenic Areas: Multi-language safety notices and 3-line QR codes for tour guides; visitors scan codes to register, triggering relays to open access control and play welcome voices.
  • Access Control & Smart Buildings: Integrates with card readers via Wiegand interface; displays visitor information, plays welcome voices, and controls door access via relays, realizing intelligent entry management.
  • Transportation Hubs: Provides multi-language schedules and directional guidance; Ethernet/MQTT supports remote content updates, ensuring real-time information transmission.

Why Choose NED200 Industrial LED Display Driver?

  • All-in-One Integration: Combines communication, display control, voice broadcast, relay linkage, and QR code interaction, reducing system complexity and hardware costs.
  • Industrial-Grade Durability: Wide temperature resistance, multiple protection mechanisms (reverse connection, overcurrent, ESD), ensuring 24/7 stable operation in harsh environments.
  • Strong Expandability: Supports display interface expansion, voice file updates, and IO module addition, adapting to function upgrades without replacing the main device.
  • Efficient Information Transmission: Multi-protocol + multi-language support enables fast information dissemination and cross-system collaboration, improving operational efficiency.
  • Cost-Effective Operation: Standardized commands, minimal maintenance, and long service life lower long-term use costs for enterprises.
